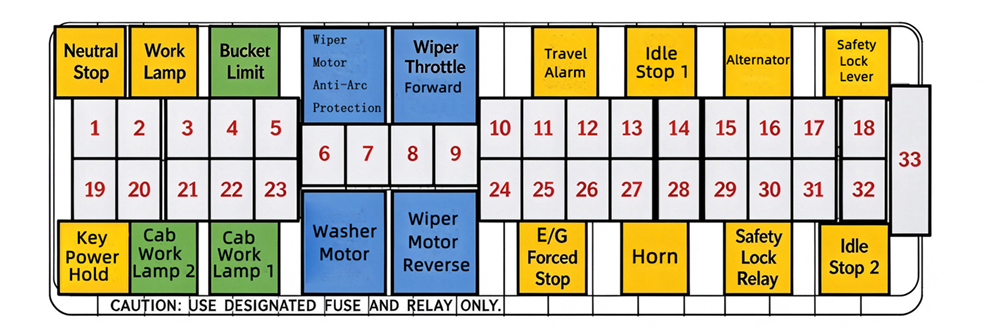

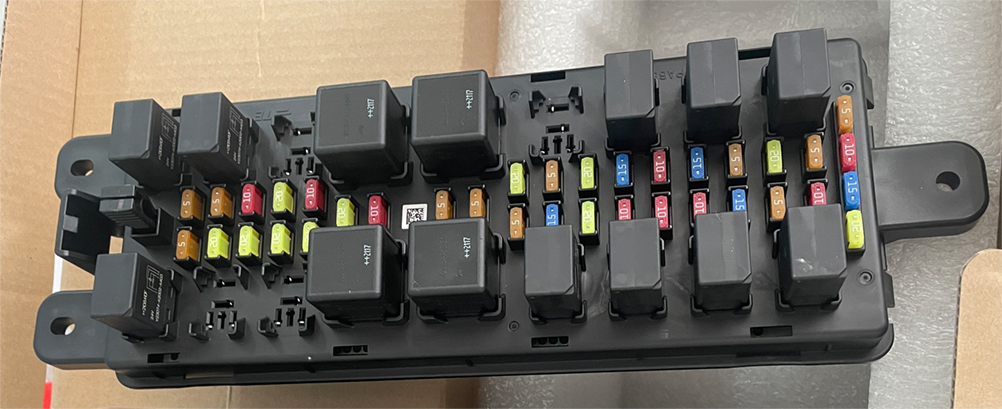

Kobelco SK-10 Series Fuse Box Function Description
5A Main Controller (Spare)
5A IT Controller
10A Auto Greaser
20A Work Lamp
10A Solenoid Valve, LMN/BH
20A Wiper
10A DC-DC Engine Detection Line
5A Multi-Function Display
5A Air Conditioner (A/C)
20A Travel Alarm, One-way Call
5A DC-DC for Camera
20A Rotating Beacon Light
15A Sunroof Wiper
10A Radio
15A Engine Controller (ECU)
5A Main Controller
20A Main Controller
5A Manual Controller (Option)
5A Cabin Lamp, Radio
15A Fuel Transfer Pump
20A Start Switch
20A Cab Work Lamp
5A Cabin Lamp, Radio
5A Air Conditioner (A/C)
15A Air Conditioner (A/C)
20A Option 1
10A Horn
10A Option 3
10A Option 4, Controller
15A Engine Controller (ECU)
5A Relay
10A Control Lever Lock
Spare Fuses (4 pcs)
