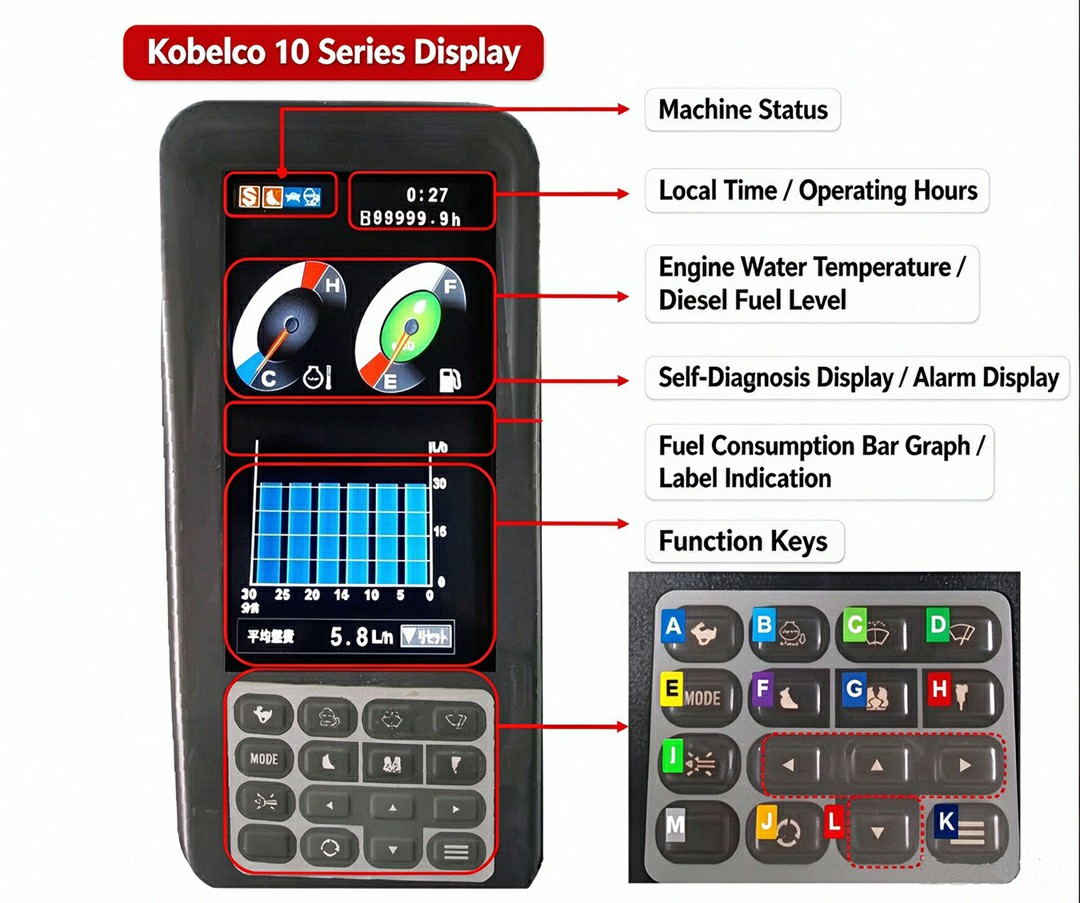

Kobelco Model 10 Excavator Display Function Description
| Switch | Function | |
|---|---|---|
| A | Travel Speed 1-2 Switch | Travel high/low speed switching |
| B | Auto Throttle Switch | Engine speed automatically drops when control levers stay neutral for a period |
| C | Washer Switch | Activates front window washer |
| D | Wiper Switch | Activates front window wiper |
| E | Work Mode Select Switch | Select work modes H, S, E |
| F | Digging Mode Switch | Select work modes suitable for excavation operations |
| G | Hydraulic Shear Mode Switch | Used for hydraulic shear operation |
| H | Breaker Mode Switch | Used for breaking operation |
| I | Buzzer Stop Switch | Turn off alarm buzzer / Available when switching multi-function display |
| J | Screen Change Switch | Switch screen display |
| K | Menu Switch | Select various displays and adjustment functions |
| L | Arrow Keys | Move cursor up, down, left, right |
| M | N/A | Has control function for cylinder cut-out test |
