YN57V00012S002 YN57V00004S002 Air Breather Filter For SK200-8 SK210-8 SK250-8 SK350-8 SK485-8

SK200-8 SK210-8 SK250-8 SK350-8 SK485-8 Air Breather Filter YN57V00012S002 YN57V00004S002

Part NameFilterPart Number

YN57V00012S002

BrandKobelco、KobekiApplicable ModelSK200-8 SK210-8 SK250-8 SK350-8 SK485-8

Weight:0.2KG

YN57V00012S002 YN57V00004S002 Air Breather Filter For SK200-8 SK210-8 SK250-8 SK350-8 SK485-8

Parts Catalog

ITEMQTYPARTS   NO. PART NAME
81YN11P00029S002ELEMENT   Filter (Inner)
71YN11P00029S003AIR FILTER   Filter (Outer)
61YN50V01014P1CAB FILTER   Air-Con, (Inner)
51YN50V01015P3CAB FILTER   Air-Con, (Outer)
42YN52V01011P1FILTER   Element, (Std) (Nibbler & Breaker) {Element Kit YN52V01008R600}


YN57V00012S002 ELEMENT   Filter, H/D Tank Breather
31YN57V00004S002ELEMENT   Filter, H/D Tank Breather

1VH23390E0010ELEMENT   Filter, Oil E/G (Hino E/G Part)
21YN30T01002P1ELEMENT   Filter, Oil E/G (Hino E/G Part)

1VH156072190AELEMENT   Filter, Oil E/G (Hino E/G Part)
11YN30T01001P1ELEMENT   Filter, Oil E/G (Hino E/G Part)


Breather element in the filter parts list

The filter parts list groups the service elements for these machines together. YN57V00012S002 is listed as a hydraulic tank breather element, on the same line of equipment as YN57V00004S002.

The breather is not the engine oil filter, the cab filter or the hydraulic return filter. Using the list to identify which element is fitted avoids ordering the wrong service part during a filter change.

What the hydraulic tank breather does

The breather filter lets the hydraulic tank equalise pressure as the oil level rises and falls. When it is blocked or damaged, the tank cannot breathe normally and contamination can be drawn into the system. Both YN57V00012S002 and YN57V00004S002 are listed as breather elements for these machines.

Signs worth checking during a service

If the hydraulic oil looks dirty soon after a change, if the tank shows signs of pressure when the cap is opened, or if other filters are loading up early, take the breather out and inspect it.

Replace a clogged or damaged element rather than trying to clean it, and check the seating surface before fitting the new one.

Which number is on your old filter

Read the number on the element before ordering and compare it with the machine model. This filter is listed for SK200-8, SK210-8, SK250-8, SK350-8 and SK485-8; send a photo of the marking and the serial number if you are unsure which breather is fitted.

Common questions

Is this the hydraulic return filter? No, this is the tank breather element. The return and pilot filters are separate items in the filter list.

Can it be cleaned and reused? A clogged breather element should be replaced, not washed, so the tank stays protected between services.

Related parts on the same machine: excavator filter catalogue.

Troubleshooting reading: why contaminated oil makes every function slow.

Send your machine model for a breather filter match

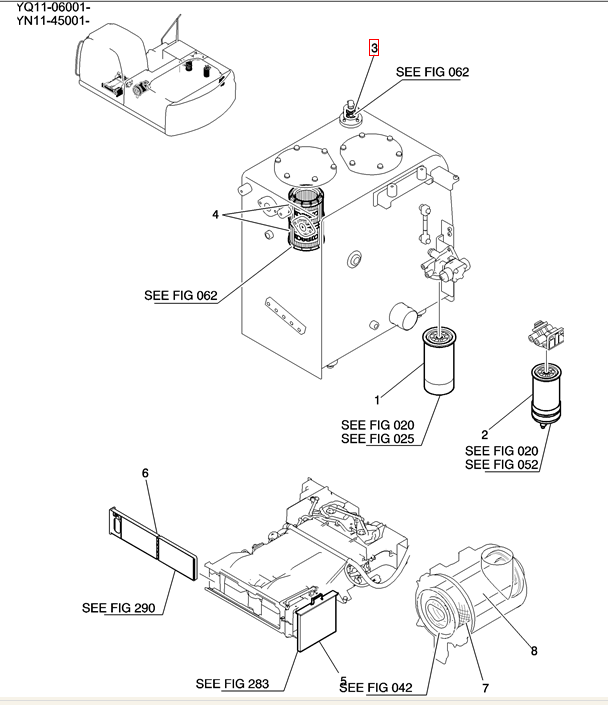

Reading the hydraulic tank breather drawing above

The diagram at the top of this page covers the hydraulic tank and the service elements around it. The breather position, callout 3, is marked in red on the drawing. The parts list above gives two tank breather element numbers, YN57V00012S002 and YN57V00004S002, so read the number stamped on the old element before ordering.

The drawing is headed with two serial-number starting points, YQ11-06001 and YN11-45001. It also points several callouts to separate figure sheets (FIG 020, 025, 042, 052, 062, 283 and 290) that are not reproduced here. The callouts shown are enough to tell the breather from the other elements on the machine.

Callouts 1 and 2 are engine oil filter elements, 4 is the breaker and nibbler filter element, and 5 to 8 cover the cab and air filter elements. None of them is the hydraulic tank breather. Ordering by the drawing position is safer than ordering by the general word "filter".
