Kobelco Excavator P1214 Fault Code Troubleshooting Guide: Fixing Engine Shaking & Power Loss

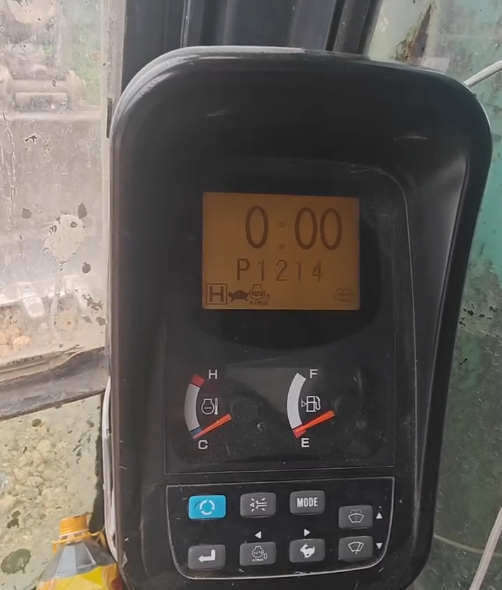

Introduction: When your excavator monitor displays fault code P1214, it typically indicates a Tier 3 diagnostic trouble code that forces a 50% engine power limitation. This malfunction causes cylinders #2 and #3 to stop operating properly, resulting in severe engine vibration and shaking. In this guide, we break down a professional diagnostic and repair workflow using a multimeter.
Step 1: Understand Fault Code P1214 Impact

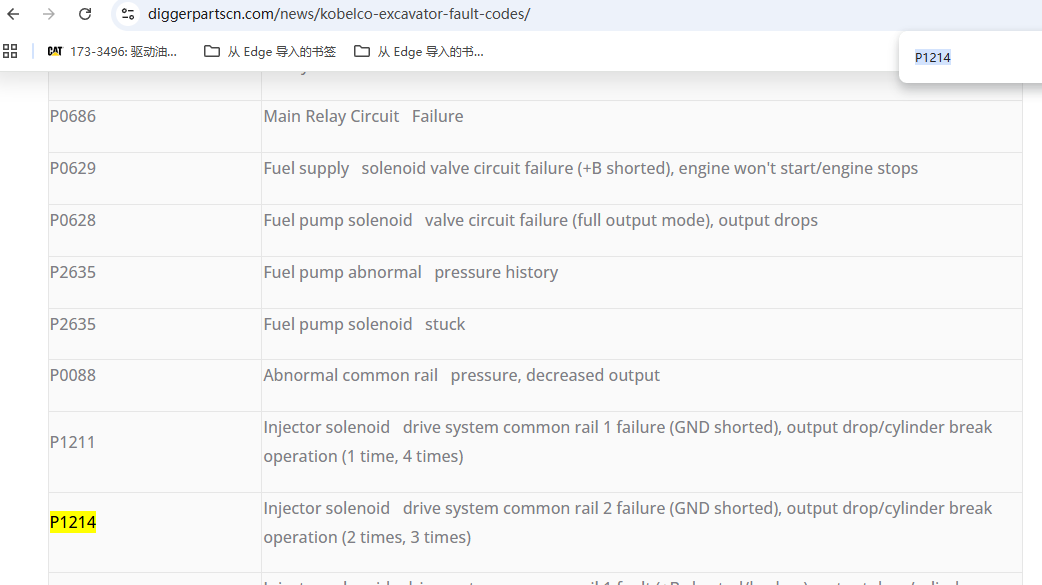

Checking the service manual reveals that error code P1214 is classified as a Tier 3 fault:
Power Limitation: Imposes a 50% engine power restriction.
Cylinder Malfunction: Prevents cylinders #2 and #3 from firing properly.
Symptom: Severe engine shaking and rough idling.
Step 2: Inspect Valve Cover and Injectors with Multimeter

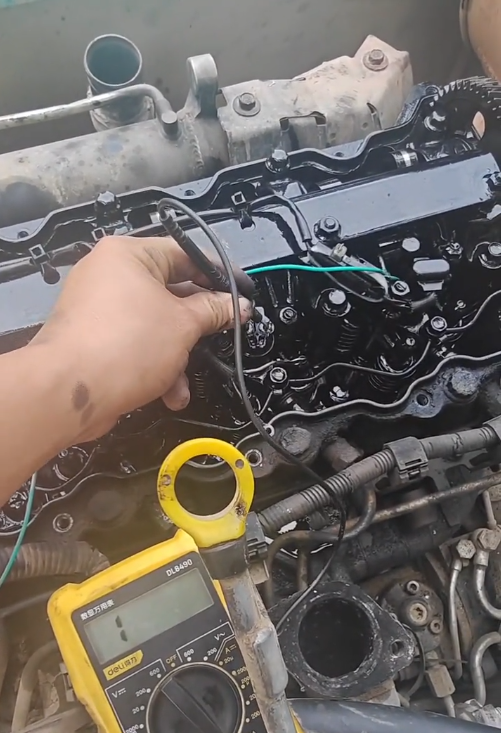

Remove the valve cover to access the fuel injectors for electrical testing:
Locate the injectors for cylinders #2 and #3.
Use a multimeter to test both injectors for internal ground short circuits.
Measure the intrinsic resistance of each fuel injector.

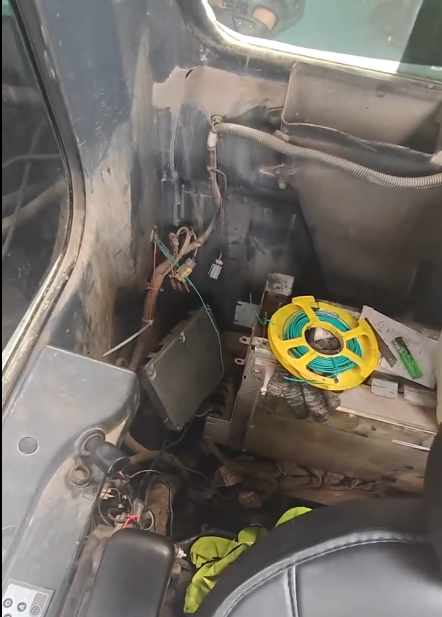

Check the wiring harness board lines for any short circuits or continuity issues. If necessary, jump wires to the cab to track down broken circuits.
Step 3: Repair Wiring and Replace ECU
Once troubleshooting pinpoints the underlying electrical failure:
Root Cause: The issue typically stems from a wiring harness short circuit that subsequently damages the engine computer board (ECU).
Action Taken: Repair the damaged wiring harness and replace the faulty ECU board.
Step 4: Engine Startup & Final Testing
After completing the repairs and reassembling components:
Start the engine and verify smooth running.
Confirm that fault code P1214 is cleared and engine power restriction is lifted.
Ensure zero abnormal shaking. Repair completed successfully!
