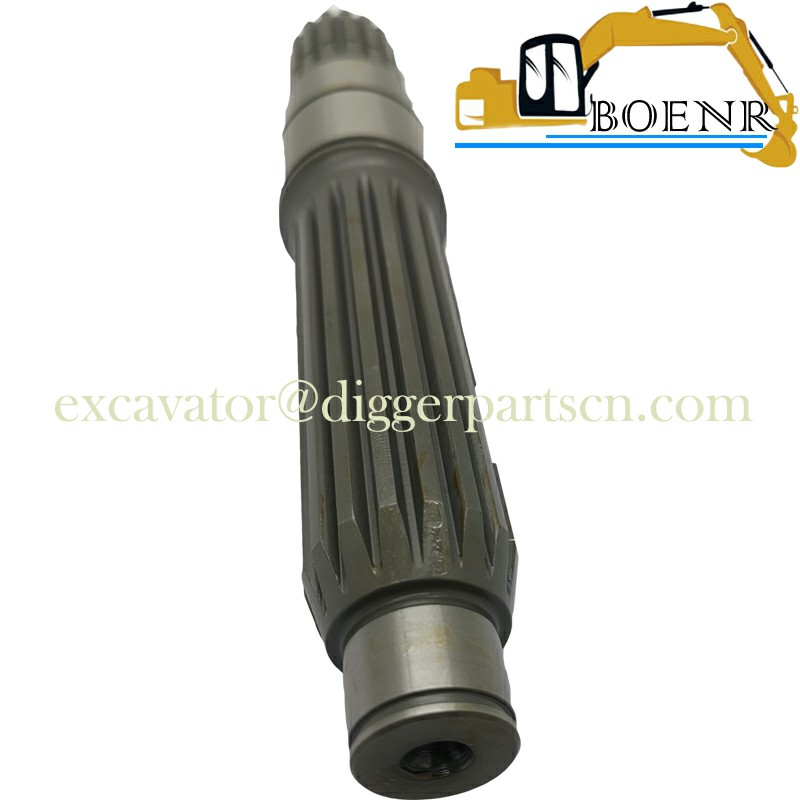

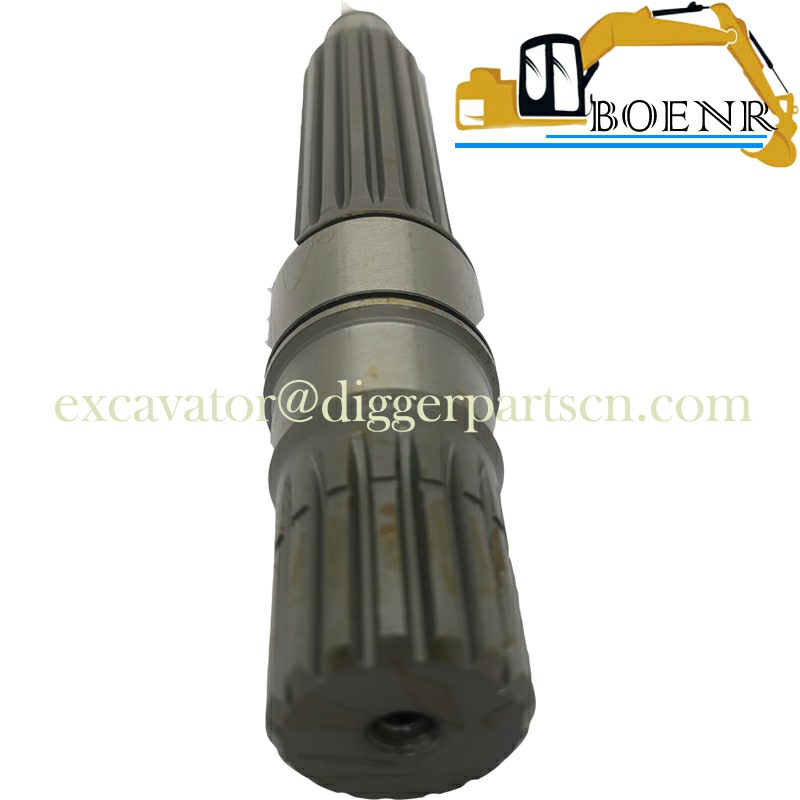

YX15V00004S101 swing motor shaft For SK130-8 SK140-8 SK140SR SK115SR SK135SR
SK130-8 SK140-8 SK140SR SK115SR SK135SR swing motor shaft YX15V00004S101
| Part Name | shaft | Part Number | YX15V00004S101 |
| Brand | Kobelco Kobeki | Applicable Model | SK130-8 SK140-8 SK140SR SK115SR SK135SR |
Weight: 1.5 kg

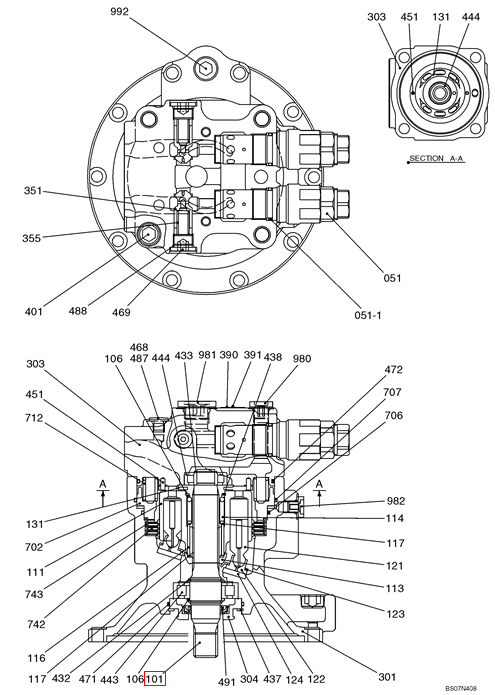

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | YV15V00002R400 | KIT Repair, Contains Items 471x1, 472x1, 487x2, 488x2, 491x1, 706x1 & 707x1 |
| K | 1 | YX15V00004R200 | REPAIR KIT Contains Items 303x1 & 451x2 |
| K | 1 | YX15V00004R100 | REPAIR KIT Contains Items 121x9 & 122x9 |
| 992 | 1 | ZE82T12000 | PLUG 3/4" PT |
| 982 | 1 | YN15V00035S980 | PLUG |
| 981 | 1 | YN15V00035S985 | PLUG |
| 980 | 1 | YN15V00035S984 | PLUG |
| 743 | 4 | YX15V00004S743 | PLATE Friction |
| 742 | 3 | YX15V00004S742 | PLATE Friction |
| 712 | 20 | 2441U789S712 | SPRING |
| 707 | 1 | 2415U188S706 | O-RING |
| 706 | 1 | 2441U825S706 | O-RING |
| 702 | 1 | 2441U789S702 | PISTON Brake |
| 491 | 1 | YY15V00019S491 | GASKET Oil Seal |
| 488 | 2 | ZD12P02000 | O-RING ID 19.80 ± 0.22 x OD 24mm |
| 487 | 2 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| 472 | 1 | YV15V00002S013 | O-RING |
| 471 | 1 | ZD12G08000 | O-RING ID 79.40 ± 0.69 x OD 85mm |
| 469 | 2 | 2436U1265S551 | PLUG |
| 468 | 2 | YW30V00001S157 | PLUG |
| 451 | 2 | NA | NOT SERVICED Pin |
| 444 | 1 | YX15V00004S010 | ROLLER BEARING |
| 443 | 1 | YX15V00004S443 | ROLLER BEARING |
| 438 | 1 | ZR26X04200 | RETAINER |
| 437 | 1 | ZR26X08000 | SNAP RING Retaining -- ID 80 x OD 85.5 x Th 2.5mm |
| 433 | 1 | 2436U1318S836 | RING |
| 432 | 2 | ZR16X03500 | RING Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 401 | 4 | ZS23C16075 | SCREW M16x2.0x75mm |
| 391 | 2 | 2437U407S983 | RIVET Pin |
| 390 | 1 | NA | NOT SERVICED Name Plate |
| 355 | 2 | YX15V00004S355 | SPRING |
| 351 | 2 | YX15V00004S351 | SPOOL Plunger |
| 304 | 1 | YY15V00019S304 | COVER Cover, Front |
| 303 | 1 | NA | NOT SERVICED Housing |
| 301 | 1 | YY15V00019S301 | BODY Housing |
| 131 | 1 | YX15V00004S131 | PLATE Valve |
| 124 | 1 | 2441U789S124 | PLATE Shoe |
| 123 | 1 | 2441U789S123 | PLATE |
| 122 | 9 | NA | NOT SERVICED Shoe |
| 121 | 9 | NA | NOT SERVICED Piston |
| 117 | 2 | 2441U789S117 | SPACER |
| 116 | 12 | 2441U789S116 | PUSH ROD |
| 114 | 1 | 2441U789S114 | SPRING |
| 113 | 1 | 2441U789S113 | BUSHING |
| 111 | 1 | YX15V00004S111 | CYLINDER |
| 106 | 3 | 2441U789S106 | SPACER |
| 101 | 1 | YX15V00004S101 | SHAFT |
| 051-1 | 2 | NA | NOT SERVICED O-Ring |
| 051 | 2 | YY22V00007F1 | VALVE Assembly, Relief -- See Figure 08-30-01 |
| AR | YY15V00019F1 | MOTOR Swing Motor Assembly |
