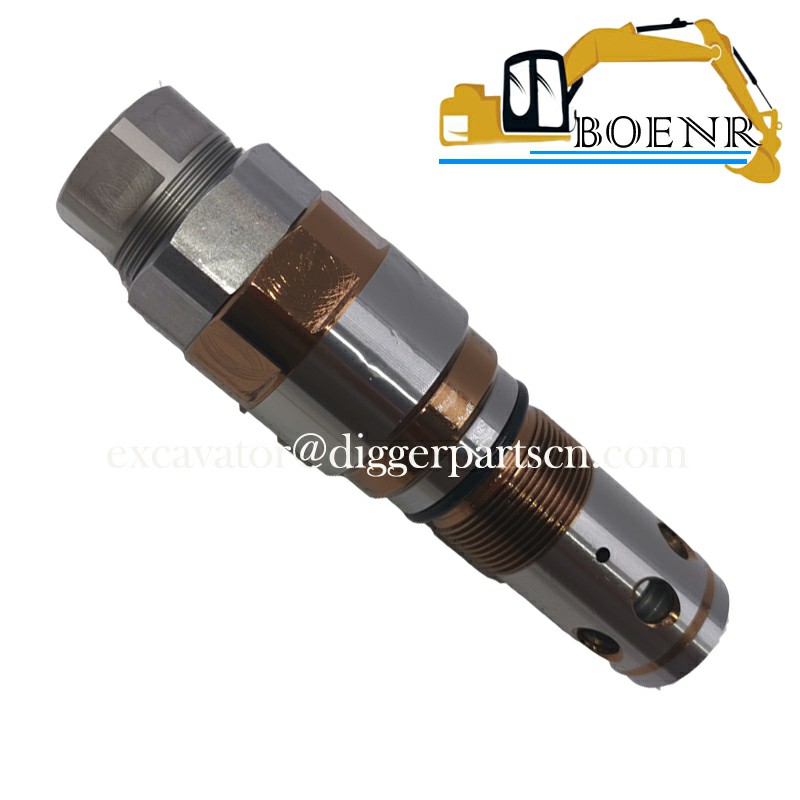

YN22V00014FA YN22V00014F1 YY22V00007F1 Relief valve for SK200-8 SK210-8 SK135SR SK215SR
SK200-8 SK210-8 SK135SR SK215SR Relief valve YN22V00014FA YN22V00014F1 YY22V00007F1
| Part Name | Relief valve | Part Number | YN22V00014FA YN22V00014F1 YY22V00007F1 |
| Brand | Kobelco、KPM、KOBEKI | Applicable Model | SK200-8 SK210-8 SK135SR SK215SR |
Weight: 1.2KG
.

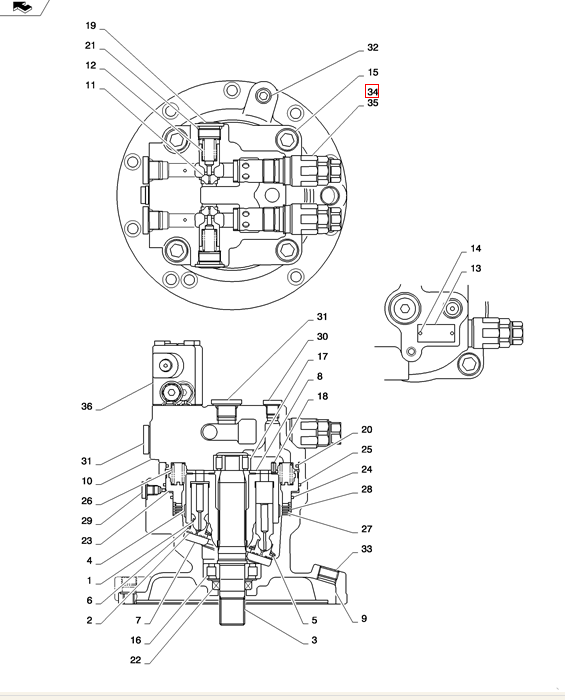

Image: Component Installation Diagram

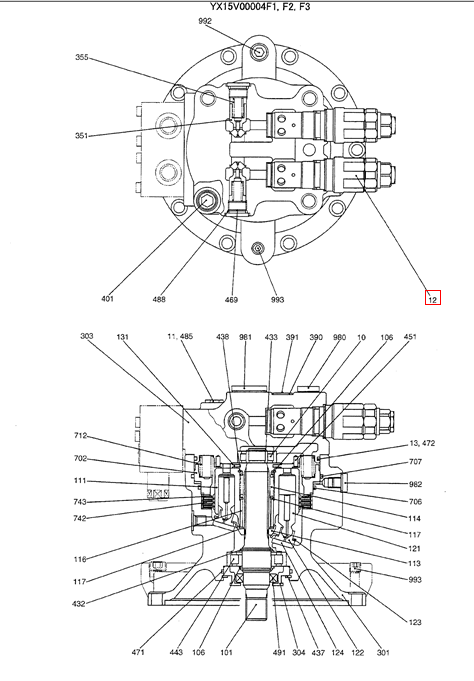

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YV15V00002R400 | KIT REPAIR CONSISTS OF ITEM 13X1, 471X1, 485X2, 488X2, 491X1, 706X1, 707X1(FOR F3 ONLY) | |
| 1 | YX15V00004R300 | REPAIR KIT CONSISTS OF ITEM 471X1, 472X1, 485X2, 488X2, 491X1, 706X1, 707X1(FOR F1&F2 ONLY) | |
| 1 | YX15V00004R200 | REPAIR KIT CONSISTS OF ITEM 303X1, 451X2 | |
| 1 | YX15V00004R100 | REPAIR KIT CONSISTS OF ITEM 121X9, 122X9 | |
| 993 | 1 | ZE82T04000 | PLUG 1/4" PT |
| 992 | 1 | ZE82T08000 | PLUG 1/2" PT |
| 982 | 1 | LQ15V00001S982 | PLUG |
| 981 | 1 | LQ15V00001S983 | PLUG PLUG |
| 980 | 1 | YN15V00002S984 | PLUG |
| 743 | 4 | YX15V00004S743 | PLATE SEPARATOR |
| 742 | 3 | YX15V00004S742 | PLATE FRICTION |
| 712 | 20 | 2441U789S712 | SPRING |
| 707 | 1 | 2415U188S706 | O-RING |
| 706 | 1 | 2441U825S706 | O-RING |
| 702 | 1 | 2441U789S702 | PISTON BRAKE |
| 491 | 1 | 2441U564S491 | OIL SEAL |
| 488 | 2 | ZD12P02000 | O-RING ID 19.80 ± 0.22 x OD 24mm |
| 485 | 3 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| 472 | 1 | 2441U825S472 | O-RING (FOR F1&F2 ONLY) |
| 471 | 1 | ZD12G08000 | O-RING ID 79.40 ± 0.69 x OD 85mm |
| 469 | 2 | 2436U1265S551 | PLUG |
| 464 | 3 | 2441U667S466 | PLUG 1/4" PF, (FOR F1 ONLY) |
| 451 | 2 | NSS | NOT SERVICED SEPARATELY PIN |
| 444 | 1 | 2441U789S444 | ROLLER BEARING (FOR F1 ONLY) |
| 443 | 1 | YX15V00004S443 | ROLLER BEARING |
| 438 | 1 | ZR26X04200 | RETAINER RING |
| 437 | 1 | ZR26X08000 | SNAP RING Retaining -- ID 80 x OD 85.5 x Th 2.5mm |
| 433 | 1 | 2436U1318S836 | RING |
| 432 | 2 | ZR16X03500 | RING Retaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 401 | 4 | ZS23C16075 | SCREW M16x2.0x75mm |
| 391 | 2 | 2437U407S983 | RIVET PIN |
| 390 | 1 | 2437U407S981 | LABEL NAME PLATE |
| 355 | 2 | YX15V00004S355 | SPRING |
| 351 | 2 | YX15V00004S351 | SPOOL PLUNGER |
| 304 | 1 | 2441U789S304 | COVER |
| 303 | 1 | NSS | NOT SERVICED SEPARATELY BODY |
| 301 | 1 | YX15V00004S301 | BODY |
| 131 | 1 | YX15V00004S131 | PLATE VALVE |
| 124 | 1 | 2441U789S124 | PLATE SHOE |
| 123 | 1 | 2441U789S123 | PLATE |
| 122 | 9 | NSS | NOT SERVICED SEPARATELY SHOE |
| 121 | 9 | NSS | NOT SERVICED SEPARATELY PISTON |
| 117 | 2 | 2441U789S117 | SPACER |
| 116 | 12 | 2441U789S116 | PUSH ROD |
| 114 | 1 | 2441U789S114 | SPRING |
| 113 | 1 | 2441U789S113 | BUSHING |
| 111 | 1 | YX15V00004S111 | CYLINDER |
| 106 | 3 | 2441U789S106 | SPACER |
| 101 | 1 | YX15V00004S101 | SHAFT |
| 51 | 2 | YX22V00001F1 | VALVE VALVE ASSY, RELIEF SEE P. YX22V00001 (FOR F1 ONLY) |
| 13 | 1 | YV15V00002S013 | O-RING O-RING(FOR F3 ONLY) |
| 12 | 2 | YY22V00007F1 | VALVE ASSY, RELIEF SEE .YY22V00007 (FOR F2&F3) |
| 11 | 2 | YW30V00001S157 | PLUG (FOR F2&F3) |
| 10 | 1 | YX15V00004S010 | ROLLER BEARING (FOR F2&F3) |
| AR | YX15V00004F3 | HYDRAULIC MOTOR ASSY (SWING) | |
| AR | YX15V00004F2 | MOTOR (SWING) | |
| AR | YX15V00004F1 | MOTOR ASSY (SWING) |
