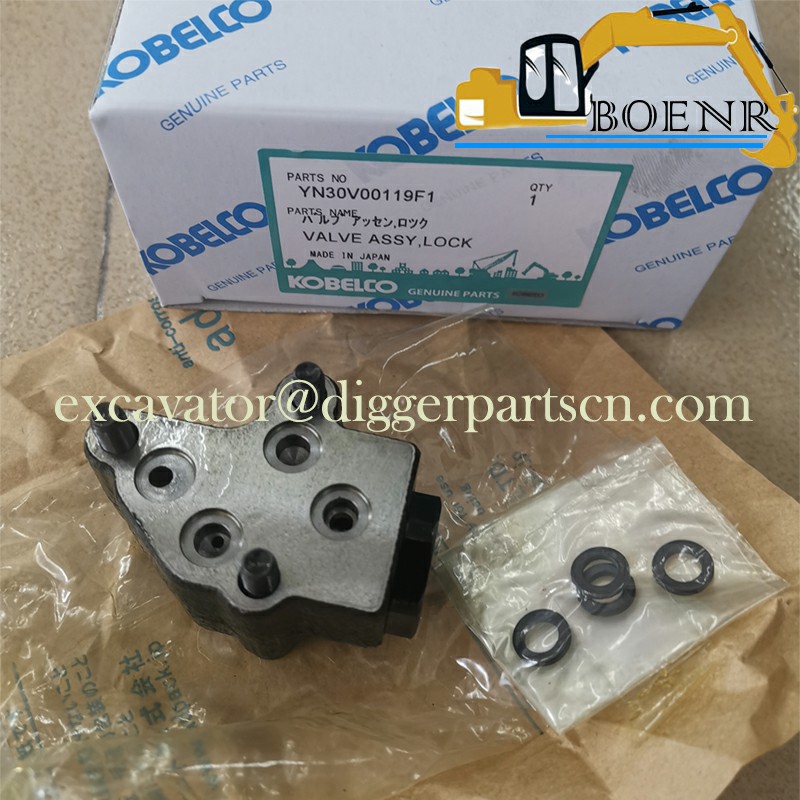

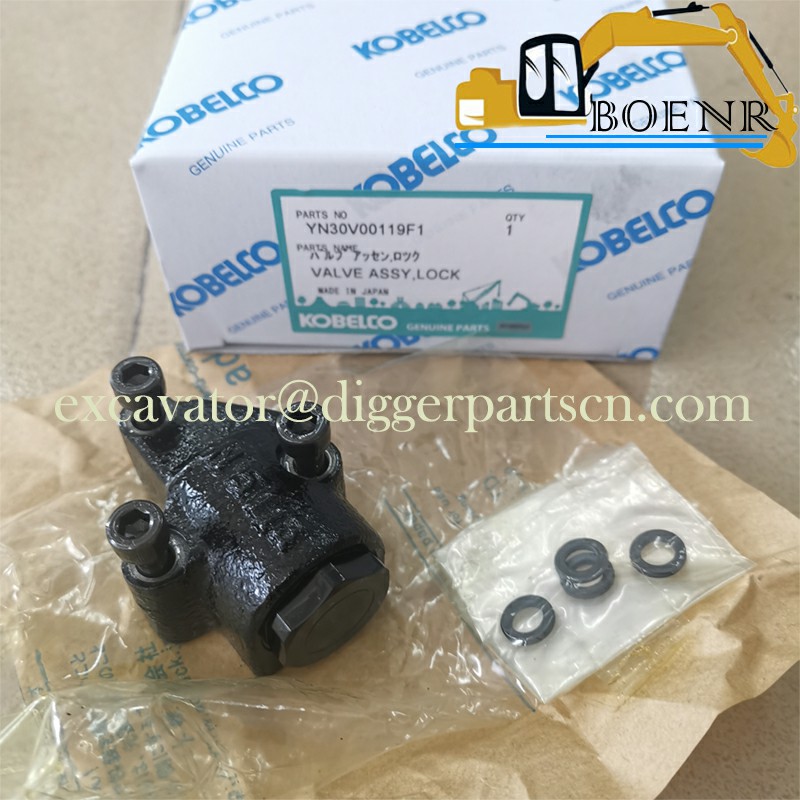

YN30V00119F1 Boom cylinder retainer valve For SK200-8 SK210-8 SK210-9 SK260-8 SK295-8 SK295-8
SK200-8 SK210-8 SK210-9 SK260-8 SK295-8 SK295-8 SK350-8 SK350-9 Boom cylinder retainer valve YN30V00119F1
| Part Name | retainer valve | Part Number | YN30V00119F1 |
| Brand | Kobelco Kobeki | Applicable Model | SK200-8 SK210-8 SK210-9 SK260-8 SK295-8 SK295-8 SK350-8 SK350-9 |
Weight: 0.5 kg

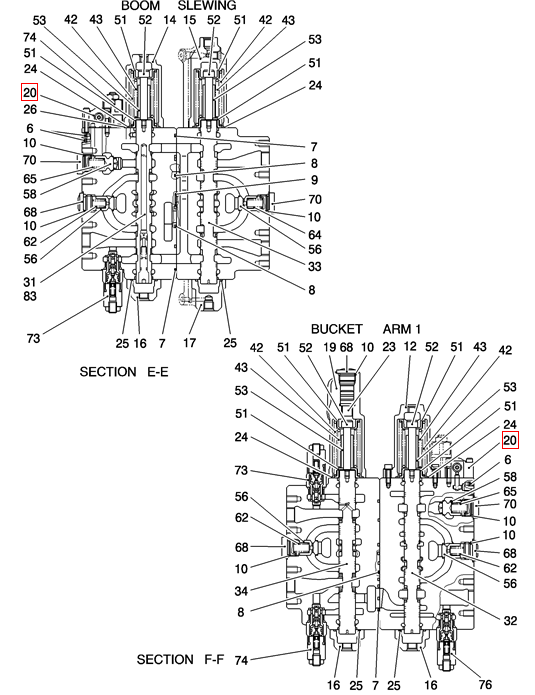

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YN30V00101R220 | SPOOL Repair Kit Consists Of Ref. 42x1, 43x1, 51x2 (For F2 ONLY) | |
| 1 | YN30V00101R210 | REPAIR KIT Consists Of Ref. 41x1, 44x1, 45x1 (For F1, F2 ONLY) | |
| 1 | YN30V00101R200 | REPAIR KIT Consists Of Ref. 40x1, 48x1, 50x1 | |
| 1 | YN30V00101R190 | REPAIR KIT Consists Of Ref. 39x1, 48x1, 50x1 | |
| 1 | YN30V00116R170 | REPAIR KIT Consists Of Ref. 38x1, 42x1, 49x1 | |
| 1 | YN30V00101R170 | REPAIR KIT Consists Of Ref. 37x1, 48x1, 50x1 | |
| 1 | YN30V00101R150 | REPAIR KIT Consists Of Ref. 36x1, 44x1, 45x1 | |
| 1 | YN30V00101R140 | REPAIR KIT Consists Of Ref. 35x1, 46x1, 47x1 | |
| 1 | YN30V00116R130 | REPAIR KIT Consists Of Ref. 34x1, 42x1, 43x1 | |
| 1 | YN30V00101R120 | REPAIR KIT Consists Of Ref. 33x1, 42x1, 43x1 | |
| 1 | YN30V00116R110 | REPAIR KIT Consists Of Ref. 32x1, 42x1, 43x1 | |
| 1 | YN30V00101R100 | REPAIR KIT Consists Of Ref. 31x1, 42x1, 43x1 (For F1, F3 ONLY) | |
| 83 | 1 | YN30V00101S010 | SPOOL Assy (For F2 ONLY) |
| 82 | 2 | YN30V00120F2 | VALVE Assy, Bypass (For F2, F3 ONLY) |
| 81 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 80 | 1 | NSS | NOT SERVICED SEPARATELY Name Plate |
| 79 | 2 | ZS23C14140 | SCREW Cap |
| 78 | 8 | ZS23C14160 | SCREW |
| 77 | 2 | YN30V00120F1 | VALVE Assy, Bypass (For F1 ONLY) |
| 76 | 1 | YN22V00029F1 | VALVE Assy, Port Relief (See HC020) |
| 75 | 2 | YN30V01062P1 | PLUG Assy |
| 74 | 3 | YN22V00002F9 | VALVE Assy, Port Relief (See HC015) |
| 73 | 2 | YN22V00002F1 | VALVE Assy, Port Relief (See HC015) |
| 72 | 1 | YN22V00001F8 | HYDRAULIC VALVE Assy, Main Relief (See HC010) |
| 71 | 2 | ZD12P02000 | O-RING |
| 70 | 3 | YN30V00001S556 | PLUG |
| 69 | 2 | YW30V00001S556 | PLUG |
| 68 | 13 | YN30V00001S551 | PLUG |
| 67 | 1 | YN30V00101S528 | SPRING |
| 66 | 1 | YN30V00101S527 | SPRING |
| 65 | 2 | YN30V00001S524 | SPRING |
| 64 | 1 | YN30V00089S523 | SPRING |
| 63 | 2 | YN30V00101S522 | SPRING |
| 62 | 11 | 2436U1165S521 | SPRING |
| 61 | 1 | YN30V00101S518 | HYDRAULIC VALVE Poppet |
| 60 | 1 | YN30V00101S517 | HYDRAULIC VALVE Poppet |
| 59 | 1 | 2436U1231S513 | POPPET |
| 58 | 2 | YN30V00101S514 | HYDRAULIC VALVE Poppet |
| 57 | 2 | YW30V00001S513 | POPPET |
| 56 | 11 | YN30V00101S341 | HYDRAULIC VALVE Poppet |
| 55 | 1 | YN30V00101S340 | CLIP Stopper |
| 54 | 1 | YN30V00001S339 | STOP |
| 53 | 10 | 2436U1165S335 | STOP |
| 52 | 12 | 2436U1165S336 | BOLT Spacer |
| 51 | 24 | 2436U1443S332 | SPRING SEAT |
| 50 | 3 | YN30V00101S329 | SPRING |
| 49 | 1 | YN30V00101S328 | SPRING |
| 48 | 3 | YN30V00101S327 | SPRING |
| 47 | 1 | YN30V00101S326 | SPRING |
| 46 | 1 | YN30V00079S323 | SPRING |
| 45 | 3 | 2436U1165S372 | SPRING |
| 44 | 3 | 2436U1165S371 | SPRING |
| 43 | 4 | YN30V00079S322 | SPRING |
| 42 | 5 | YN30V00079S321 | SPRING |
| 41 | 1 | YN30V00101S311 | SPOOL |
| 40 | 1 | YN30V00101S310 | SPOOL |
| 39 | 1 | YN30V00101S309 | SPOOL |
| 38 | 1 | YN30V00116S308 | SPOOL Assy |
| 37 | 1 | YN30V00101S307 | SPOOL |
| 36 | 2 | YN30V00101S306 | REPAIR KIT Spool |
| 35 | 1 | YN30V00101S305 | SPOOL |
| 34 | 1 | YN30V00116S304 | SPOOL |
| 33 | 1 | YN30V00101S303 | SPOOL |
| 32 | 1 | YN30V00116S302 | SPOOL |
| 31 | 1 | YN30V00101S301 | SPOOL Assy (For F1, F3 ONLY) |
| 30 | 5 | ZS23C08035 | SCREW Cap |
| 29 | 4 | ZS23C12035 | SCREW Cap |
| 28 | 4 | ZS23C12025 | SCREW Cap |
| 27 | 40 | ZS23C08025 | SCREW Cap |
| 26 | 4 | ZD12P00700 | GASKET O-Ring |
| 25 | 10 | ZD12G04000 | O-RING |
| 24 | 12 | ZD12G05000 | O-RING |
| 23 | 1 | YN30V00101S216 | PISTON |
| 22 | 1 | YN30V00116S213 | PLATE |
| 21 | 1 | YN30V00079S212 | PLATE |
| 20 | 2 | YN30V00119F1 | VALVE Assy, Lock (See HC025) |
| 19 | 1 | YN30V00101S209 | GUARD Cover |
| 18 | 1 | YN30V00101S207 | GUARD Cover |
| 17 | 1 | YN30V00101S206 | GUARD Cover |
| 16 | 7 | YN30V00001S205 | COVER |
| 15 | 1 | YN30V00101S204 | GUARD Cover |
| 14 | 1 | YN30V00101S203 | GUARD Cover |
| 13 | 4 | YN30V00101S202 | GUARD Cover |
| 12 | 5 | YN30V00101S201 | GUARD Cover |
| 11 | 2 | ZD12P01800 | O-RING |
| 10 | 19 | ZD12P02400 | O-RING |
| 9 | 11 | ZD12P01500 | O-RING |
| 8 | 15 | ZD12G03000 | O-RING |
| 7 | 7 | ZD12P03800 | O-RING |
| 6 | 5 | NSS | NOT SERVICED SEPARATELY Plug |
| 5 | 1 | NSS | NOT SERVICED SEPARATELY Plug |
| 4 | 2 | YW30V00001S155 | PLUG |
| 3 | 3 | YN30V00001S154 | PLUG |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Body |
| AR | YN30V00101F3 | CONTROL VALVE Assy, Control | |
| AR | YN30V00101F2 | CONTROL VALVE Assy, Control | |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY Body |
| AR | YN30V00101F1 | VALVE, CONTROL Assy, Control |
