YN30V00105R120 Pilot Valve Pusher Fit For SK200-8 SK210-8 SK215SR SK235SR SK260-9 SK295-8 SK350-8
SK200-8 SK210-8 SK215SR SK235SR SK260-9 SK295-8 SK350-8 SK350-9 SK485-8 SK485LC-9 Pilot Valve Pusher Fit YN30V00105R120
| Part Name | Pusher Fit | Part Number | YN30V00105R120 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 SK215SR SK235SR SK260-9 SK295-8 SK350-8 SK350-9 SK485-8 SK485LC-9 |
Weight:1.1KG

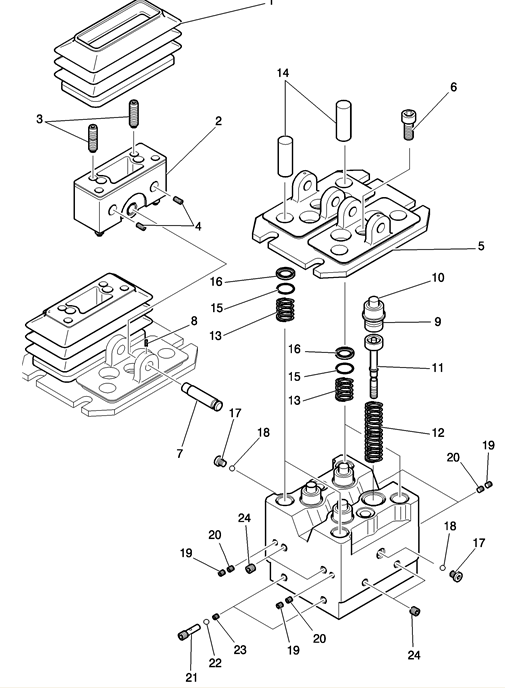

Image: Component Installation Diagram

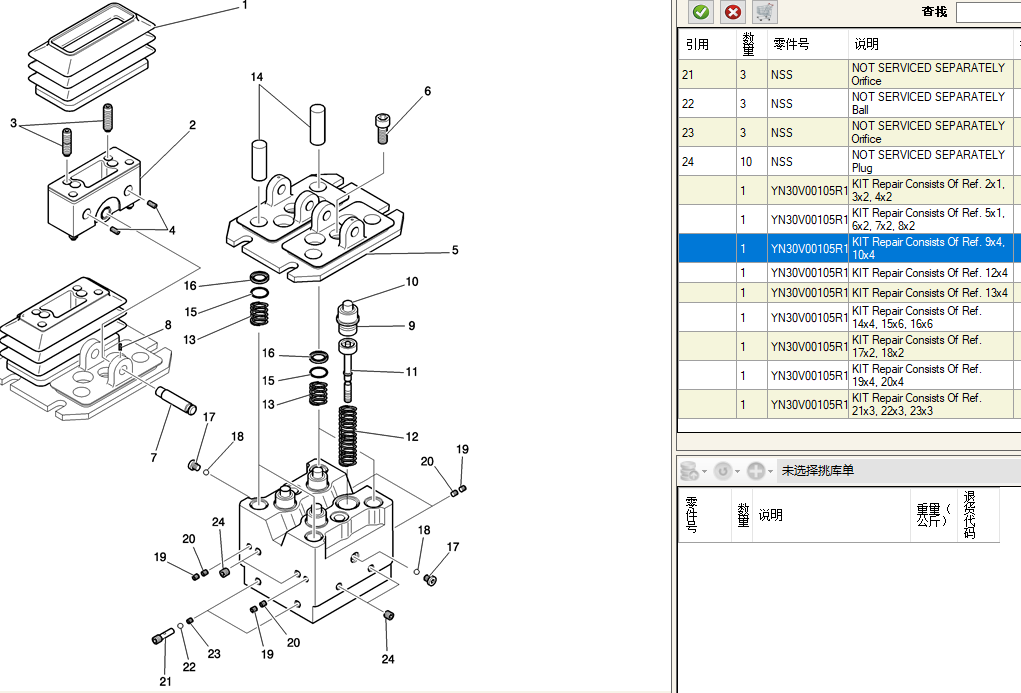

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YN30V00105R180 | KIT Repair Consists Of Ref. 21x3, 22x3, 23x3 | |
| 1 | YN30V00105R170 | KIT Repair Consists Of Ref. 19x4, 20x4 | |
| 1 | YN30V00105R160 | KIT Repair Consists Of Ref. 17x2, 18x2 | |
| 1 | YN30V00105R150 | KIT Repair Consists Of Ref. 14x4, 15x6, 16x6 | |
| 1 | YN30V00105R140 | KIT Repair Consists Of Ref. 13x4 | |
| 1 | YN30V00105R130 | KIT Repair Consists Of Ref. 12x4 | |
| 1 | YN30V00105R120 | KIT Repair Consists Of Ref. 9x4, 10x4 | |
| 1 | YN30V00105R110 | KIT Repair Consists Of Ref. 5x1, 6x2, 7x2, 8x2 | |
| 1 | YN30V00105R100 | KIT Repair Consists Of Ref. 2x1, 3x2, 4x2 | |
| 24 | 10 | NSS | NOT SERVICED SEPARATELY Plug |
| 23 | 3 | NSS | NOT SERVICED SEPARATELY Orifice |
| 22 | 3 | NSS | NOT SERVICED SEPARATELY Ball |
| 21 | 3 | NSS | NOT SERVICED SEPARATELY Orifice |
| 20 | 4 | NSS | NOT SERVICED SEPARATELY Orifice |
| 19 | 4 | NSS | NOT SERVICED SEPARATELY Plug |
| 18 | 2 | NSS | NOT SERVICED SEPARATELY Ball |
| 17 | 2 | NSS | NOT SERVICED SEPARATELY Plug |
| 16 | 6 | NSS | NOT SERVICED SEPARATELY Seal |
| 15 | 6 | NSS | NOT SERVICED SEPARATELY Seal |
| 14 | 4 | NSS | NOT SERVICED SEPARATELY Rod |
| 13 | 4 | NSS | NOT SERVICED SEPARATELY Spring |
| 12 | 4 | NSS | NOT SERVICED SEPARATELY Spring |
| 11 | 4 | YN30V00105S010 | ROD Spool |
| 10 | 4 | NSS | NOT SERVICED SEPARATELY Rod, Push |
| 9 | 4 | NSS | NOT SERVICED SEPARATELY Plug |
| 8 | 2 | NSS | NOT SERVICED SEPARATELY Capscrew |
| 7 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 6 | 2 | NSS | NOT SERVICED SEPARATELY Capscrew |
| 5 | 1 | NSS | NOT SERVICED SEPARATELY Plate |
| 4 | 2 | NSS | NOT SERVICED SEPARATELY Capscrew |
| 3 | 2 | NSS | NOT SERVICED SEPARATELY Capscrew |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Plate |
| 1 | 2 | YN30V00105S005 | COVER |
| AR | YN30V00105F1 | VALVE Assy, Pilot (propelling) |
