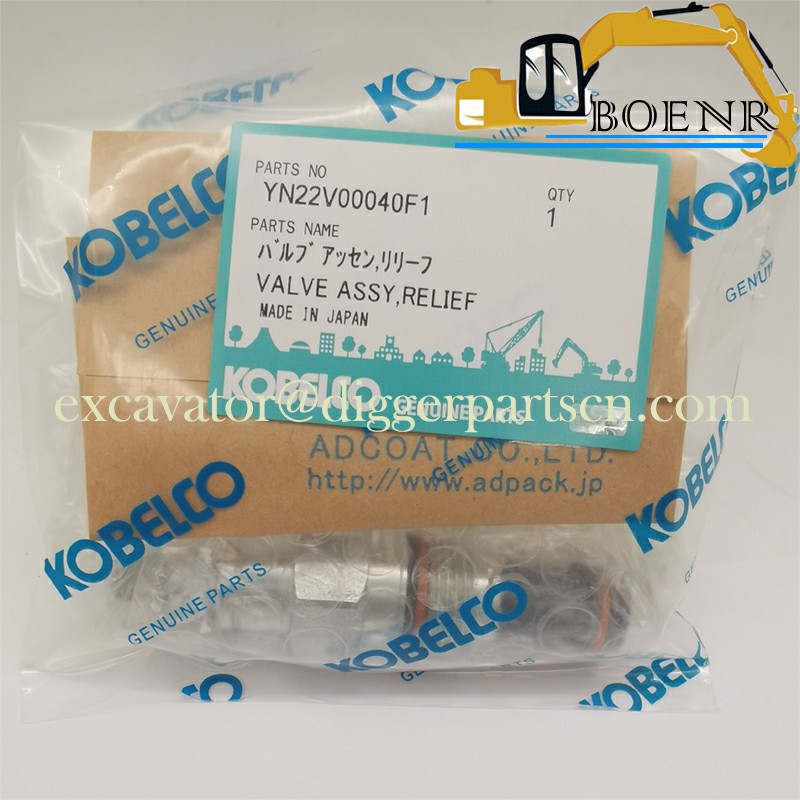

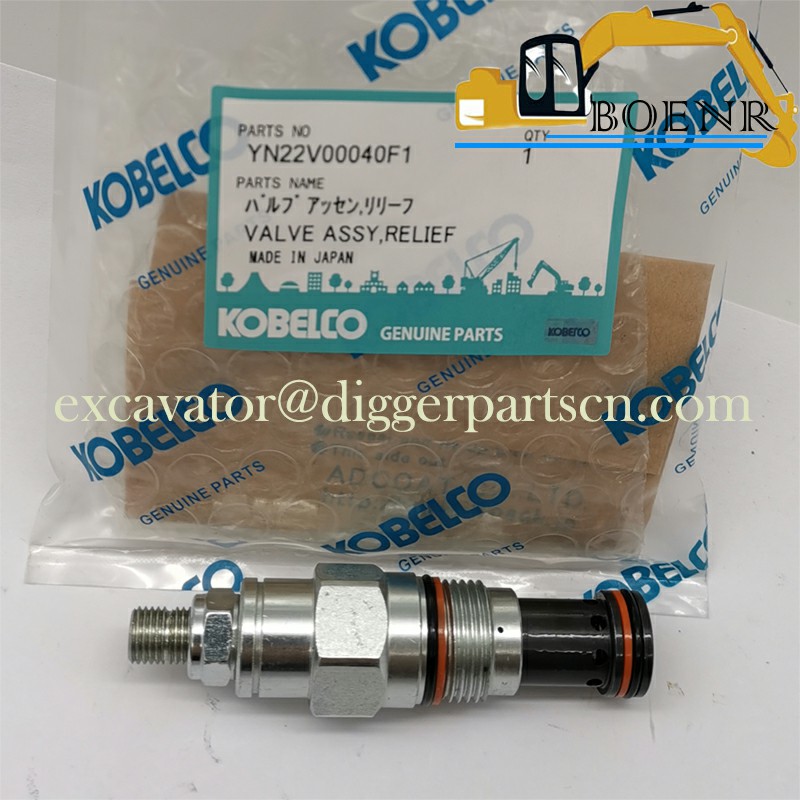

YN22V00040F1 relief valve For SK200-8 SK210-8 SK350-8 SK380-8 SK250-8 SK260-8
SK200-8 SK210-8 SK350-8 SK380-8 SK250-8 SK260-8 relief valve YN22V00040F1
| Part Name | relief valve | Part Number | YN22V00040F1 |
| Brand | Kobelco、Kobeki | Applicable Model | SK200-8 SK210-8 SK350-8 SK380-8 SK250-8 SK260-8 |
Weight:0.5KG

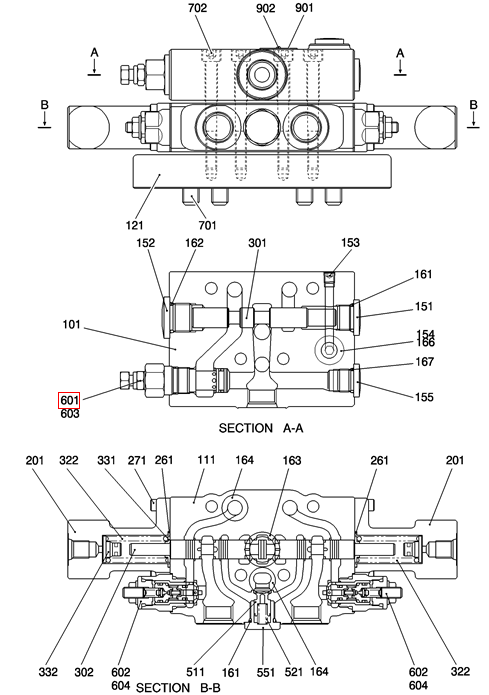

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 902 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 901 | 2 | NSS | NOT SERVICED SEPARATELY Name Plate |
| 702 | 4 | ZS23C08080 | CAP |
| 701 | 4 | ZS23C12025 | SCREW Cap |
| 604 | 2 | YN22V00041F2 | HYDRAULIC VALVE Assy, Relief (F2 ONLY) |
| 603 | 1 | YN22V00040F2 | HYDRAULIC VALVE Assy, Relief (F2 ONLY) |
| 602 | 2 | YN22V00041F1 | HYDRAULIC VALVE Assy, Relief (F1 ONLY) |
| 601 | 1 | YN22V00040F1 | HYDRAULIC VALVE Assy, Relief (F1 ONLY) |
| 551 | 1 | YA30V00002S551 | PLUG |
| 521 | 1 | YA30V00002S521 | SPRING |
| 511 | 1 | YA30V00002S511 | VALVE POPPET |
| 332 | 2 | YA30V00002S332 | SEAT/SLOT Spring |
| 331 | 2 | YA30V00002S331 | SEAT/SLOT Spring |
| 322 | 2 | EM30V00001S321 | SPRING |
| 302 | 1 | NSS | NOT SERVICED SEPARATELY Spool |
| 301 | 1 | NSS | NOT SERVICED SEPARATELY Rod |
| 271 | 8 | YN35V00017S171 | SCREW Cap |
| 261 | 2 | YN30V00108S261 | O-RING |
| 201 | 2 | NSS | NOT SERVICED SEPARATELY Cover |
| 167 | 1 | ZD12P01400 | O-RING |
| 166 | 1 | ZD12P01100 | O-RING |
| 164 | 6 | ZD12P01500 | O-RING |
| 163 | 2 | ZD12P02000 | O-RING |
| 162 | 1 | ZD12P01800 | O-RING |
| 161 | 1 | ZD12P01600 | O-RING |
| 155 | 1 | YW30V00001S156 | PLUG |
| 154 | 1 | YN30V00108S154 | PLUG |
| 153 | 1 | 2441U722S490 | PLUG |
| 152 | 1 | YW30V00001S155 | PLUG |
| 151 | 1 | 2436U1832S651 | PLUG |
| 121 | 1 | YN30V00108S121 | PLATE |
| 111 | 1 | NSS | NOT SERVICED SEPARATELY Body |
| 101 | 1 | NSS | NOT SERVICED SEPARATELY Body |
| AR | YN30V00108F2 | VALVE Assy, Control | |
| AR | YN30V00108F1 | HYDRAULIC VALVE Assy, Control |
