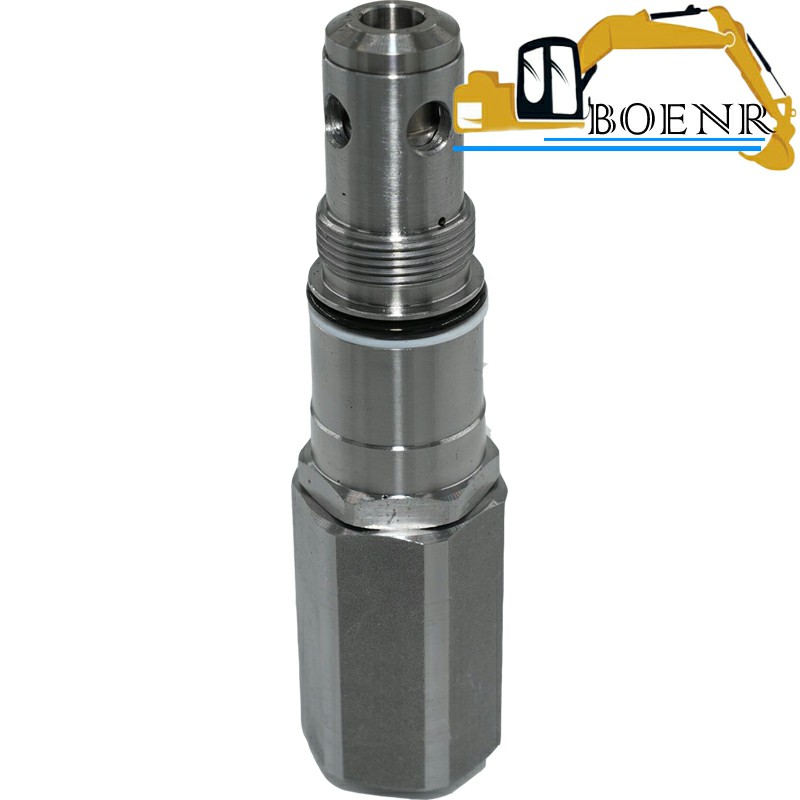

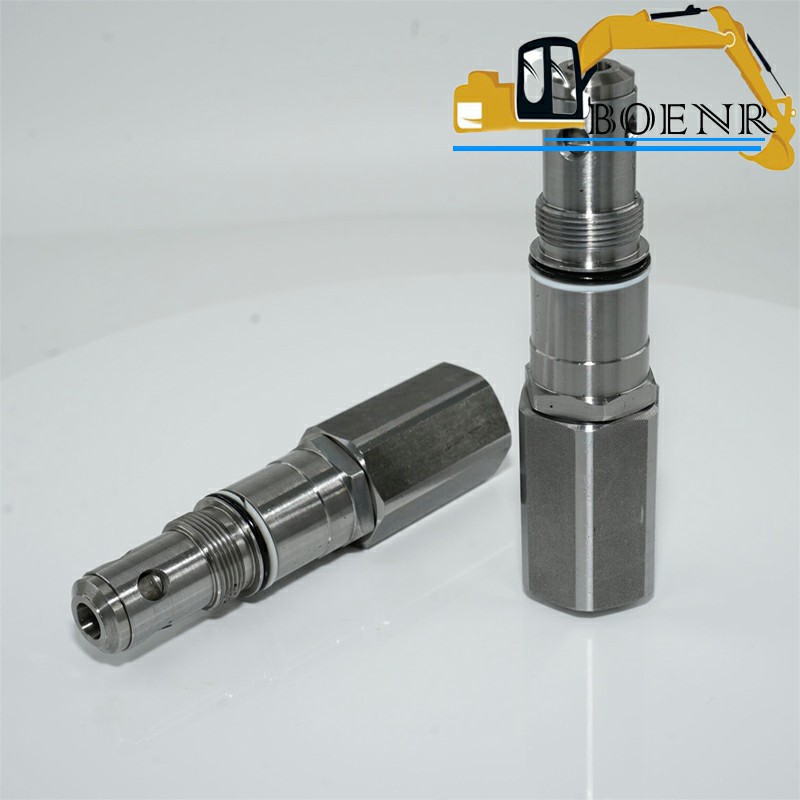

YN22V00013F1 Relief Valve For SK200-4 SK200-6 SK200-6E SK200SR SK210-4 SK210-6E
SK200-4 SK200-6 SK200-6E SK200SR SK210-4 SK210-6E Relief Valve YN22V00013F1
| Part Name | Valve | Part Number | YN22V00013F1 |
| Brand | Kobeki kobelco | Applicable Model | SK200-4 SK200-6 SK200-6E SK200SR SK210-4 SK210-6E |
Weight: 0.8 KG

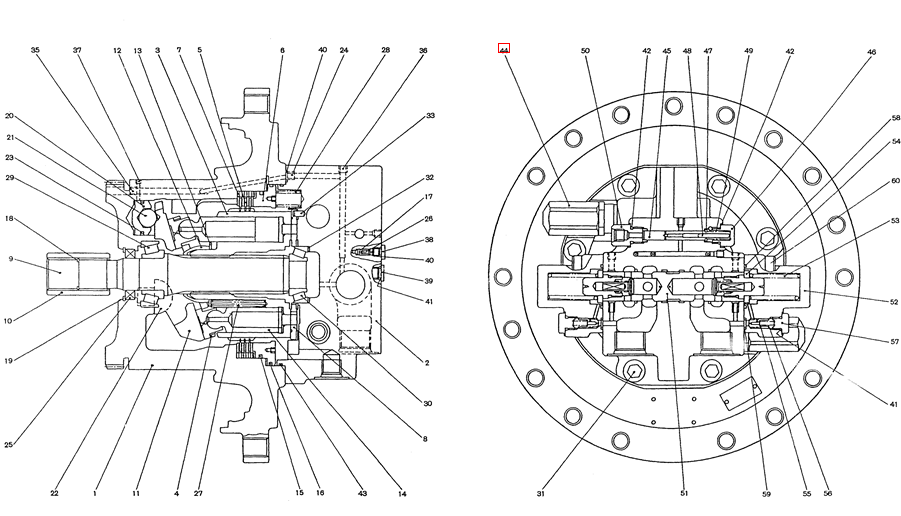

Parts Catalog
| 1 | YN15V00017R300 | REPAIR KIT CONSISTS OF ITEM,4X1,12X1 | |
| 1 | YN15V00017R200 | REPAIR KIT CONSISTS OF ITEM,11X1,22X2 | |
| 1 | YN15V00017R100 | REPAIR KIT CONSISTS OF ITEM,14X9 | |
| 60 | 8 | ZS23C12035 | SCREW M12x1.75x35mm |
| 59 | 2 | ZD12P00900 | O-RING ID 08.80 ± 0.17 x OD 12mm |
| 58 | 2 | YN15V00017S058 | O-RING |
| 57 | 2 | 2436U1139S10 | PLUG |
| 56 | 2 | 2483U223S4 | SPRING |
| 55 | 2 | 2436U1384S8 | VALVE |
| 54 | 2 | YN15V00017S054 | SEAT |
| 53 | 2 | YN15V00017S053 | SPRING SPRING |
| 52 | 2 | YN15V00017S052 | COVER |
| 51 | 1 | YN15V00017S051 | SPOOL |
| 50 | 1 | 2436R874S3 | FLEXIBLE JOINT |
| 49 | 1 | 2436R874S7 | SPRING |
| 48 | 1 | 2436R874S6 | PIN |
| 47 | 1 | 2436R874S5 | SPRING SEAT |
| 46 | 1 | YN15V00017S046 | PLUG |
| 45 | 1 | YN15V00017S045 | SPOOL |
| 44 | 2 | YN22V00013F1 | VALVE RELIEF SEE P.YN22V00013 |
| 43 | 1 | YN15V00009S039 | O-RING |
| 42 | 2 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 41 | 4 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| 40 | 5 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 39 | 2 | 2436U1317S13 | PLUG |
| 38 | 3 | YN15V00017S038 | PLUG |
| 37 | 1 | 2436U1749S17 | PLUG PLUG |
| 36 | 10 | 2436U1427S25 | PLUG |
| 35 | 1 | 2436U279S3 | PLUG |
| 33 | 1 | YN15V00017S033 | PIN |
| 32 | 2 | YN15V00017S032 | SHIM |
| 31 | 8 | ZS23C16045 | CAP Screw -- M16x2.0x45mm |
| 30 | 1 | YN15V00017S030 | BEARING |
| 29 | 1 | YN15V00017S029 | BEARING |
| 28 | 12 | YN15V00017S028 | SPRING |
| 27 | 9 | 2441U820S31 | SPRING |
| 26 | 3 | YN15V00017S026 | SPRING SPRING |
| 25 | 1 | YN15V00009S027 | OIL SEAL |
| 24 | 2 | PR30V00010S014 | ORIFICE |
| 23 | 1 | YN15V00003S024 | SEAL |
| 22 | 2 | NSS | NOT SERVICED SEPARATELY PIVOT |
| 21 | 1 | YN15V00017S021 | BALL |
| 20 | 1 | YN15V00017S020 | PISTON |
| 19 | 1 | YN15V00009S019 | RING |
| 18 | 1 | ZR26X03200 | SNAP RING Retaining -- ID 32 x OD 34.4 x Th 1.2mm |
| 17 | 3 | YN15V00017S017 | CHECK VALVE |
| 16 | 1 | YN15V00003S015 | O-RING |
| 15 | 1 | YN15V00009S015 | RING |
| 14 | 9 | NSS | NOT SERVICED SEPARATELY PISTON ASSY |
| 13 | 1 | YN15V00017S013 | SEAT |
| 12 | 1 | NSS | NOT SERVICED SEPARATELY JOINT,BALL |
| 11 | 1 | NSS | NOT SERVICED SEPARATELY PLATE,SHOE |
| 10 | 1 | YN15V00017S010 | COUPLING |
| 9 | 1 | YN15V00017S009 | SHAFT |
| 8 | 1 | YN15V00017S008 | PLATE |
| 7 | 4 | YN15V00009S007 | PLATE |
| 6 | 1 | YN15V00009S006 | PISTON |
| 5 | 3 | YN15V00009S005 | PLATE |
| 4 | 1 | NSS | NOT SERVICED SEPARATELY RETAINER,SHOE |
| 3 | 1 | YN15V00017S003 | BLOCK |
| 2 | 1 | YN15V00017S002 | COVER |
| 1 | 1 | YN15V00017S001 | BODY |
| YN15V00017F1 | MOTOR MOTOR ASSY (PROPELLING) |
