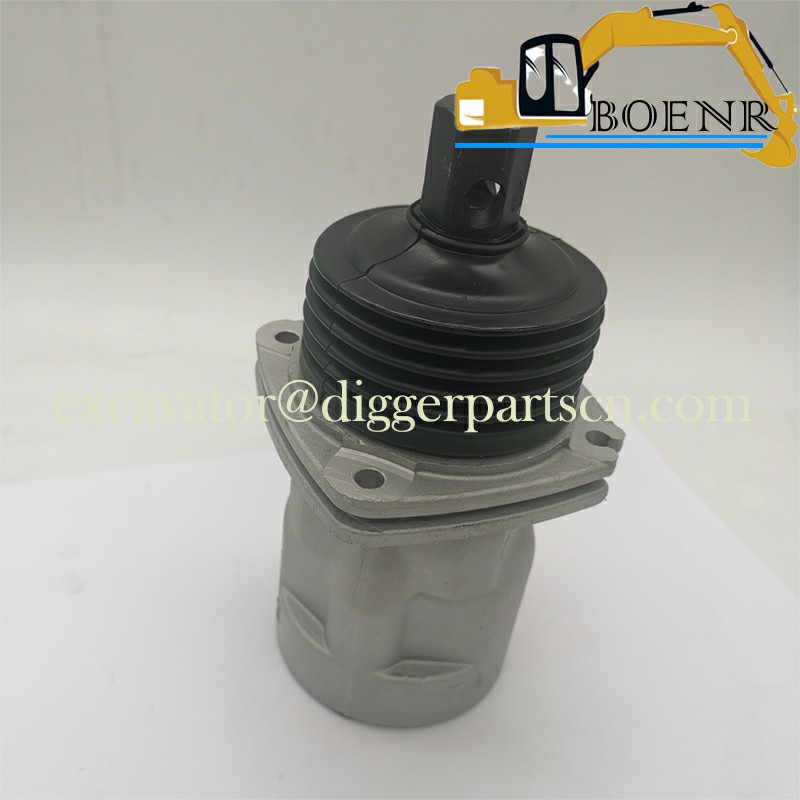

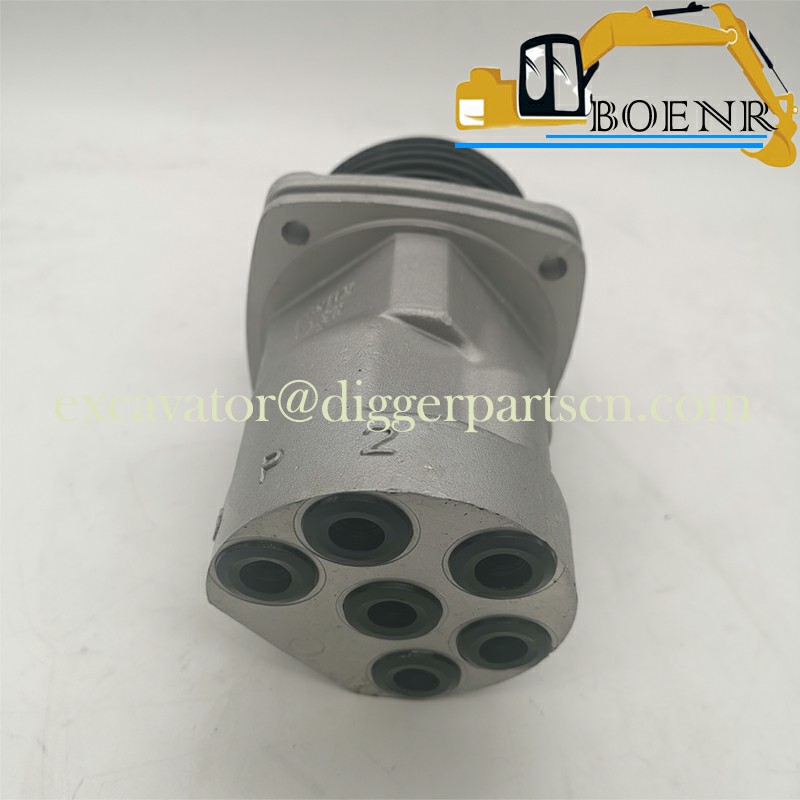

PX30V00043F1 PX30V00043F3 PX30V00043F4 Pilot Valve For SK17SR SK27SR SK30SR SK35SR SK50SR
SK17SR SK27SR SK30SR SK35SR SK50SR SK55SR Pilot Valve PX30V00043F1 PX30V00043F3 PX30V00043F4
| Part Name | Pilot Valve | Part Number | PX30V00043F1 PX30V00043F3 PX30V00043F4 |
| Brand | Kobeki、Kobelco | Applicable Model | SK17SR SK27SR SK30SR SK35SR SK50SR |
Weight:2.5KG

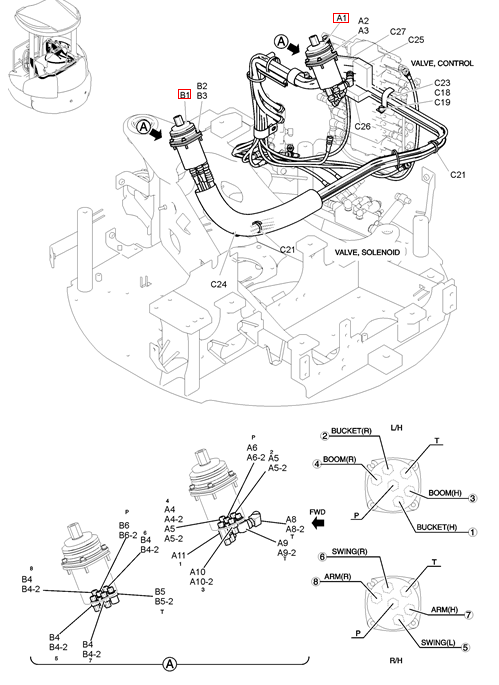

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| C27 | 1 | PH68H01042P1 | RUBBER |
| C26 | 1 | PM68H01055P1 | FOAM INSULATION |
| C25 | 1 | PM68H01054P1 | FOAM INSULATION |
| C24 | 1 | PM68H01057P1 | COVER |
| C23 | 1 | PW68H01041P1 | CLAMP |
| C21 | 2 | PY01P01043D6 | CLIP Wire Ties -- 368mm Long |
| C19 | 1 | ZW16H08000 | WASHER ID 08 x OD 18 x Th 3.2mm |
| C18 | 1 | ZS18C08016 | SCREW M08x1.25x16mm |
| C6 | 1 | HX23L03330DR | HOSE |
| C5 | 1 | HX23L03330DH | HOSE |
| MAIN CONTROL, (JOHN-DEER MULTI), PV68H00017F1 | |||
| B6-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| B6 | 1 | HH25S04004G3 | HYD CONNECTOR |
| B5-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| B5 | 1 | HH25S06004G1 | HYD CONNECTOR |
| B4-2 | 4 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| B4 | 4 | HH25S04004G1 | HYD CONNECTOR 1/4"PFx1/4"PFx34mm Long (Incls. O-Ring ZD12P01100) |
| B3 | 4 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| B2 | 4 | ZS28C06030 | SCREW M06x1.0x30mm |
| B1 | 1 | PX30V00043F1 | VALVE See Figure 07-036 |
| VALVE INSTAL (LEFT SIDE STANDARD), PW64H00038F1 | |||
| A11 | 1 | PU64H01002P1 | ADAPTER |
| A10-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A10 | 1 | HH25S04004G1 | HYD CONNECTOR 1/4"PFx1/4"PFx34mm Long (Incls. O-Ring ZD12P01100) |
| A9-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A9 | 1 | 2444Z2894 | HYD CONNECTOR Elbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| A8-2 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| A8 | 1 | HH45S06004G1 | ELBOW |
| A6-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A6 | 1 | HH25S04004G3 | HYD CONNECTOR |
| A5-2 | 2 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A5 | 2 | HH35S04004G1 | ELBOW |
| A4-2 | 1 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| A4 | 1 | 2444Z2525 | HYD CONNECTOR 1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) |
| A3 | 4 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| A2 | 4 | ZS28C06030 | SCREW M06x1.0x30mm |
| A1 | 1 | PX30V00043F1 | VALVE See Figure 07-036 |
| CONTROL LINES,REMOTE INSTAL (RIGHT SIDE STANDARD), PW64H00037F1 | |||
| NIBBLER & BREAKER REMOTE CONTROL LINES, PW64H00037F1, PW64H00038F1 & PV68H00017F1, PAGE 1 OF 2 |
