2436U1277S211 Pilot valve Pusher For SK200-8 SK27SR SK30SR SK210-8 SK250-8 SK260-8 SK260-9 SK295-8
SK200-8 SK27SR SK30SR SK210-8 SK250-8 SK260-8 SK260-9 SK295-8 SK295-9 SK485-8 Pilot valve Pusher 2436U1277S211
| Part Name | Pusher | Part Number | 2436U1277S211 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK27SR SK30SR SK210-8 SK250-8 SK260-8 SK260-9 SK295-8 SK295-9 SK485-8 |
Weight: 0.2 kg

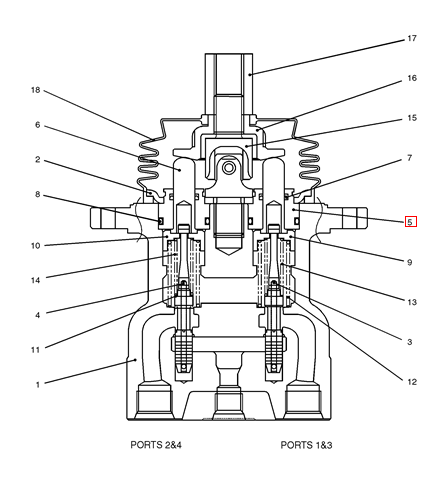

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 18 | 1 | YT30V00008S501 | BOOT Cover |
| 17 | 1 | YT30V00008S312 | NUT |
| 16 | 1 | YT30V00008S302 | PLATE |
| 15 | 1 | 2436U2581S301 | FLEXIBLE JOINT |
| 14 | 2 | YN30V00069S242 | SPRING |
| 13 | 2 | YN30V00069S241 | SPRING |
| 12 | 4 | PX30V00043S221 | SPRING |
| 11 | 4 | 2436U1277S217 | WASHER |
| 10 | 2 | YT30V00008S10 | SEAT |
| 9 | 2 | YT30V00008S216 | SEAT Spring |
| 8 | 4 | ZD12P02000 | O-RING |
| 7 | 4 | 2436U1277S213 | GASKET Seal |
| 6 | 4 | 2436U2938S212 | ROD Rod |
| 5 | 4 | 2436U1277S211 | PLUG |
| 4 | 2 | NSS | NOT SERVICED SEPARATELY Spool |
| 3 | 2 | NSS | NOT SERVICED SEPARATELY Spool |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY Body |
| AR | YN30V00111F1 | HYDRAULIC VALVE Assy, Pilot |
