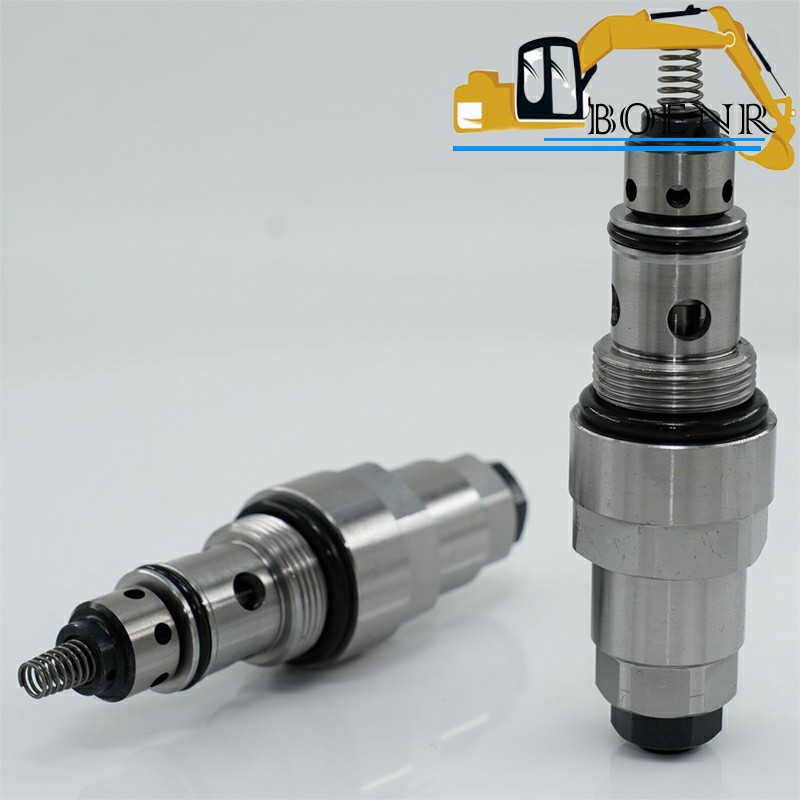

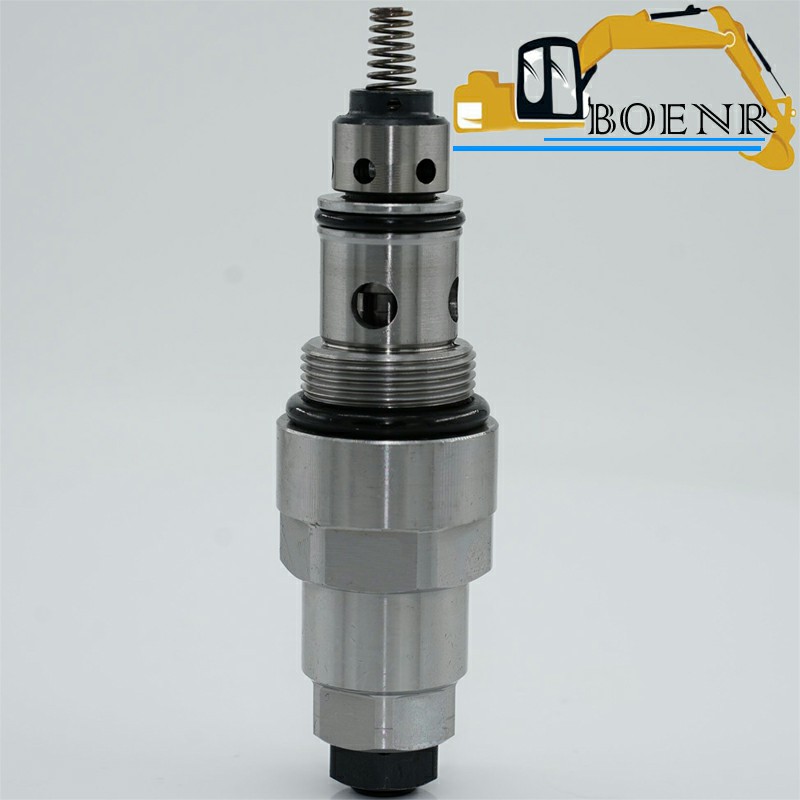

2436R683F1 2436R683F2 2436R683F3 Relief Valve For SK200-3 SK200-4 SK210-4 SK220-3 SK220-4 SK250-4
SK200-3 SK200-4 SK210-4 SK220-3 SK220-4 SK250-4 Relief Valve 2436R683F1 2436R683F2 2436R683F3
| Part Name | Valve | Part Number | 2436R683F1 2436R683F2 2436R683F3 |
| Brand | Kobeki | Applicable Model | SK200-3 SK200-4 SK210-4 SK220-3 SK220-4 SK250-4 |
Weight: 0.6 KG

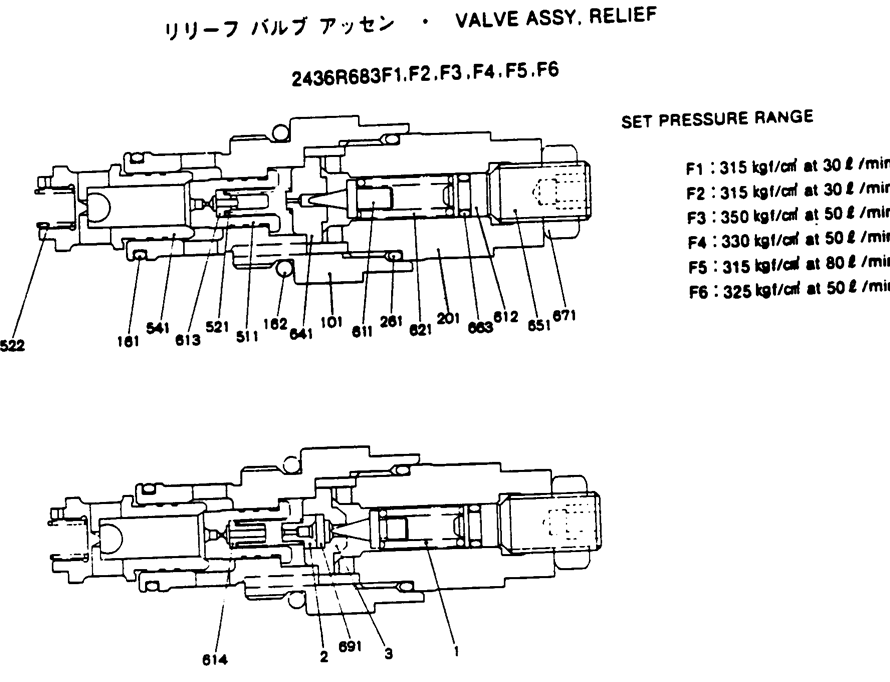

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 691 | - | FILTER, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 | |
| 671 | 1 | 2436R683S671 | NUT NUT, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 663 | 1 | ZD12P00600 | O-RING ID 05.80 ± 0.15 x OD 09mm, F2: 1, F3: 1, F4: 1, F5: 1 |
| 651 | 1 | 2436R683S651 | SCREW SETSCREW, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 641 | 1 | NSS | NOT SERVICED SEPARATELY SEAT 2, F2: -, F3: -, F4: -, F5: -, F6: - |
| 621 | 1 | 2436R683S621 | SPRING SPRING, F2: -, F3: -, F4: -, F5: -, F6: - |
| 614 | - | 2436R750S614 | SEAT, SPRING, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 613 | 1 | 2436R683S613 | SEAT, SPRING, F2: -, F3: -, F4: -, F5: -, F6: - |
| 612 | 1 | 2436R682S521 | SEAT SEAT, SPRING, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 611 | 1 | NSS | NOT SERVICED SEPARATELY POPPET, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 541 | 1 | NSS | NOT SERVICED SEPARATELY SEAT 1, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 522 | 1 | 2436R683S522 | SPRING SPRING, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 521 | 1 | 2436R683S521 | SPRING SPRING, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 511 | 1 | NSS | NOT SERVICED SEPARATELY PLUNGER, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 261 | 1 | ZD12P02200 | O-RING ID 21.80 ± 0.24 x OD 26mm, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 201 | 1 | 2436R683S201 | PLUG PLUG, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 162 | 1 | ZD12P02400 | O-RING ID 23.70 ± 0.24 x OD 30mm, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| 161 | 1 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| AR | 2436R683F6 | VALVE ASSY, RELIEF, Remarks: CONSISTS OF THE FOLLOWING PARTS | |
| AR | 2436R683F5 | VALVE ASSY, RELIEF, Remarks: CONSISTS OF THE FOLLOWING PARTS | |
| 101 | 1 | NSS | NOT SERVICED SEPARATELY BODY, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| AR | 2436R683F4 | PRESSURE RELIEF VALVE VALVE ASSY, RELIEF, Remarks: CONSISTS OF THE FOLLOWING PARTS | |
| 3 | - | NSS | NOT SERVICED SEPARATELY SEAT, SPRING, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| AR | 2436R683F3 | VALVE VALVE ASSY, RELIEF, Remarks: CONSISTS OF THE FOLLOWING PARTS | |
| 2 | - | NSS | NOT SERVICED SEPARATELY SEAT, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| AR | 2436R683F2 | PRESSURE RELIEF VALVE VALVE ASSY, RELIEF, Remarks: CONSISTS OF THE FOLLOWING PARTS | |
| 1 | - | 2436R683S1 | SPRING SPRING, F2: 1, F3: 1, F4: 1, F5: 1, F6: 1 |
| AR | 2436R683F1 | PRESSURE RELIEF VALVE VALVE ASSY, RELIEF, Remarks: CONSISTS OF THE FOLLOWING PARTS |
