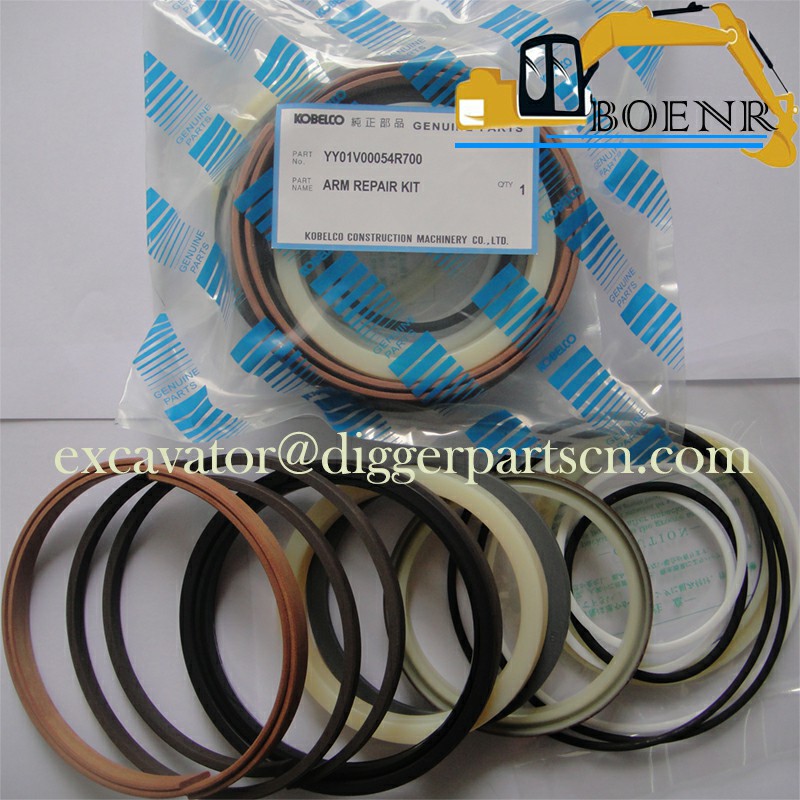

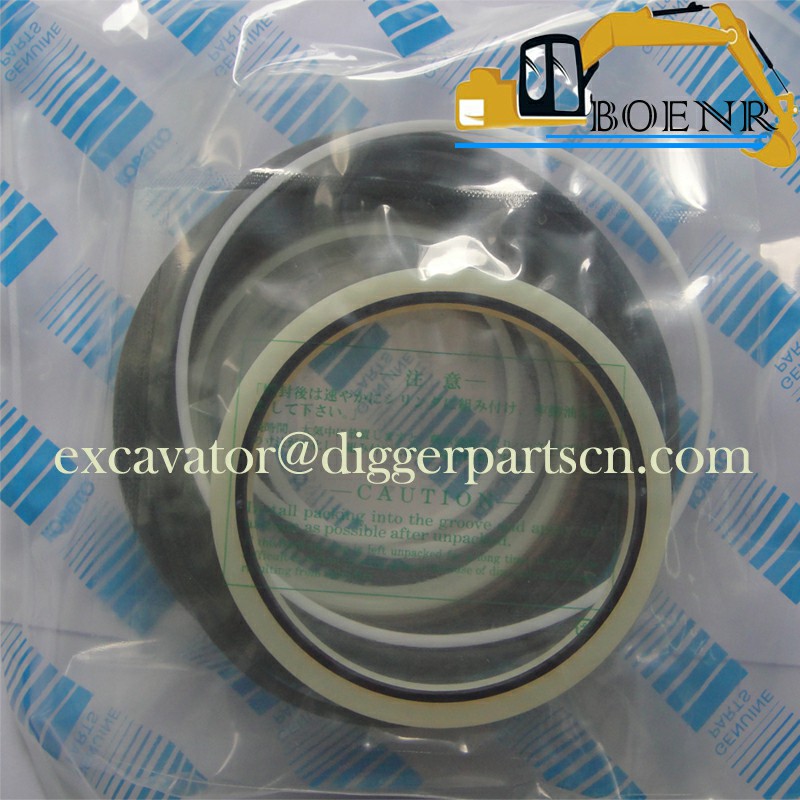

YY01V00054R300 YY01V00054R700 Arm Cylinder Seal Kit For SK130-8 SK140-8 SK140SR
SK130-8 SK140-8 SK140SR Arm Cylinder Seal Kit YY01V00054R300 YY01V00054R700
| Part Name | Oil Seal | Part Number | YY01V00054R300 YY01V00054R700 |
| Brand | Kobelco, kobeki | Applicable Model | SK130-8 SK140-8 SK140SR |
Weight: 0.6KG

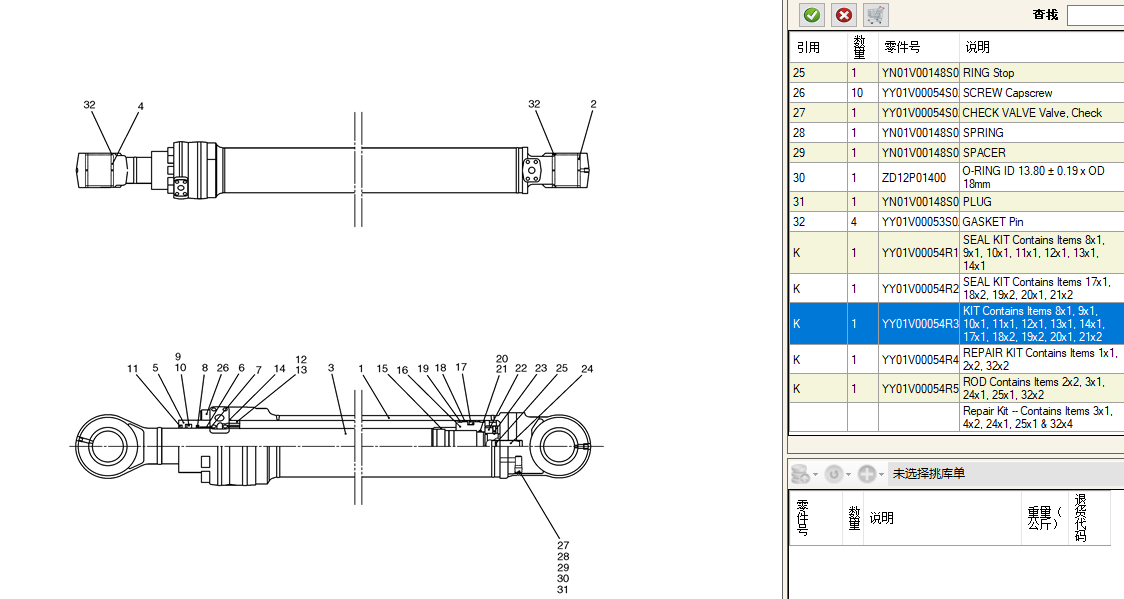

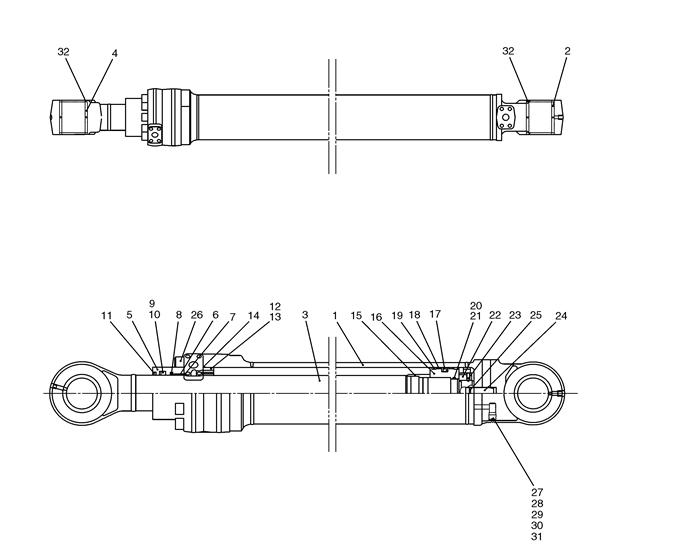

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| Repair Kit -- Contains Items 3x1, 4x2, 24x1, 25x1 & 32x4 | |||
| K | 1 | YY01V00054R500 | ROD Contains Items 2x2, 3x1, 24x1, 25x1, 32x2 |
| K | 1 | YY01V00054R400 | REPAIR KIT Contains Items 1x1, 2x2, 32x2 |
| K | 1 | YY01V00054R300 | KIT Contains Items 8x1, 9x1, 10x1, 11x1, 12x1, 13x1, 14x1, 17x1, 18x2, 19x2, 20x1, 21x2 |
| K | 1 | YY01V00054R200 | SEAL KIT Contains Items 17x1, 18x2, 19x2, 20x1, 21x2 |
| K | 1 | YY01V00054R100 | SEAL KIT Contains Items 8x1, 9x1, 10x1, 11x1, 12x1, 13x1, 14x1 |
| 32 | 4 | YY01V00053S025 | GASKET Pin |
| 31 | 1 | YN01V00148S032 | PLUG |
| 30 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 29 | 1 | YN01V00148S030 | SPACER |
| 28 | 1 | YN01V00148S029 | SPRING |
| 27 | 1 | YY01V00054S027 | CHECK VALVE Valve, Check |
| 26 | 10 | YY01V00054S026 | SCREW Capscrew |
| 25 | 1 | YN01V00148S026 | RING Stop |
| 24 | 1 | YY01V00054S024 | CUSHION Cushion |
| 23 | 1 | YN01V00148S024 | DOWEL |
| 22 | 1 | YY01V00054S022 | NUT Nut, Piston |
| 21 | 2 | YY01V00054S021 | BACK-UP RING Ring, Back Up |
| 20 | 1 | YY01V00054S020 | O-RING O-Ring |
| 19 | 2 | YY01V00054S019 | RING Ring, Dust |
| 18 | 2 | YY01V00054S018 | WEAR RING Ring, Wear |
| 17 | 1 | YY01V00054S017 | SEAL Seal, Slipper |
| 16 | 1 | YY01V00054S016 | PISTON Piston |
| 15 | 1 | YY01V00054S015 | RING Ring, Cushion |
| 14 | 1 | ZD12G11500 | O-RING ID 114.40 ± 0.94 x OD 120mm |
| 13 | 1 | YY01V00054S013 | RING Ring, Back Up |
| 12 | 1 | ZD12G11000 | O-RING ID 109.4 ± 0.91 x OD 115mm |
| 11 | 1 | YY01V00054S011 | SEAL Wiper, Dust |
| 10 | 1 | YY01V00054S010 | RING Ring, Back Up |
| 9 | 1 | YY01V00054S009 | PACKING Packing |
| 8 | 1 | YY01V00054S008 | RUBBER SEAL Seal, Rubber |
| 7 | 1 | YY01V00054S007 | RING Ring, Retaining |
| 6 | 1 | YY01V00054S006 | BUSHING Bushing |
| 5 | 1 | YY01V00054S005 | COVER Cover, Rod |
| 4 | 2 | NA | NOT SERVICED Bushing |
| 3 | 1 | NA | NOT SERVICED Rod Assembly |
| 2 | 2 | YY01V01023P1 | BUSHING Bushing |
| 1 | 1 | NA | NOT SERVICED Tube Assembly |
| YY01V00054F1 | LIFT CYLINDER Arm Cylinder Assembly |
