YN55V01049P1 Swivel connector Seal For SK140SR SK200-6E SK200SR SK200-8 SK210-8 SK215SR SK235SR
SK140SR SK200-6E SK200SR SK200-8 SK210-8 SK215SR SK235SR SK250-6E SK250-8 SK260-8 SK260-9 SK350-8 SK350-9 Swivel connector Seal YN55V01049P1
| Part Name | Seal | Part Number | YN55V01049P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK140SR SK200-6E SK200SR SK200-8 SK210-8 SK215SR SK235SR SK250-6E SK250-8 SK260-8 SK260-9 SK350-8 SK350-9 |
Weight: 0.2KG

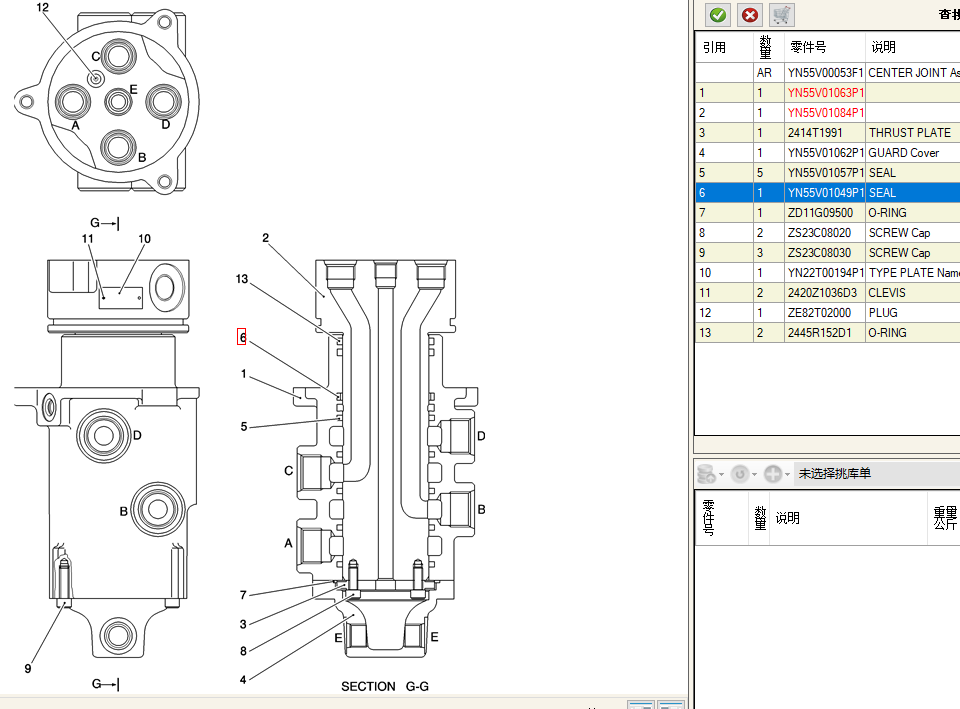

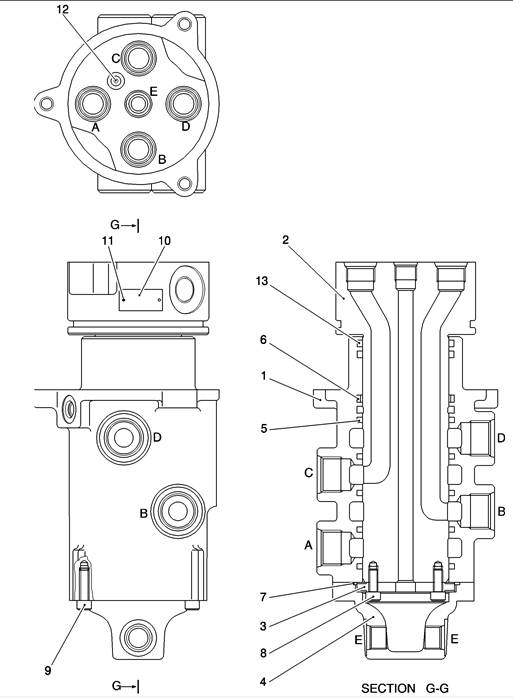

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 13 | 2 | 2445R152D1 | O-RING |
| 12 | 1 | ZE82T02000 | PLUG |
| 11 | 2 | 2420Z1036D3 | CLEVIS |
| 10 | 1 | YN22T00194P1 | TYPE PLATE Name |
| 9 | 3 | ZS23C08030 | SCREW Cap |
| 8 | 2 | ZS23C08020 | SCREW Cap |
| 7 | 1 | ZD11G09500 | O-RING |
| 6 | 1 | YN55V01049P1 | SEAL |
| 5 | 5 | YN55V01057P1 | SEAL |
| 4 | 1 | YN55V01062P1 | GUARD Cover |
| 3 | 1 | 2414T1991 | THRUST PLATE |
| 2 | 1 | YN55V01084P1 | |
| 1 | 1 | YN55V01063P1 | |
| AR | YN55V00053F1 | CENTER JOINT Assy, Swivel |
