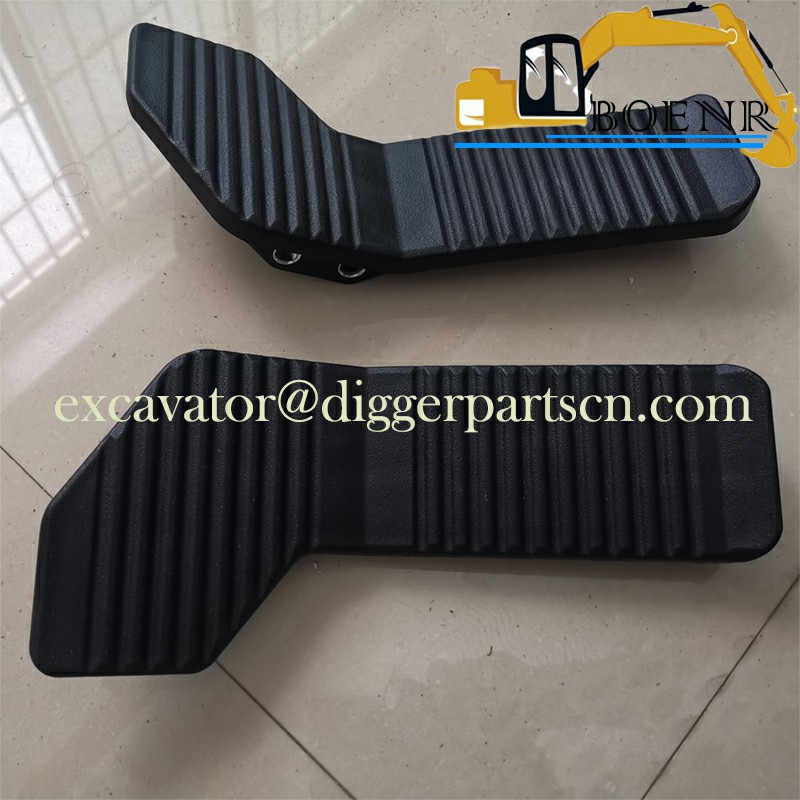

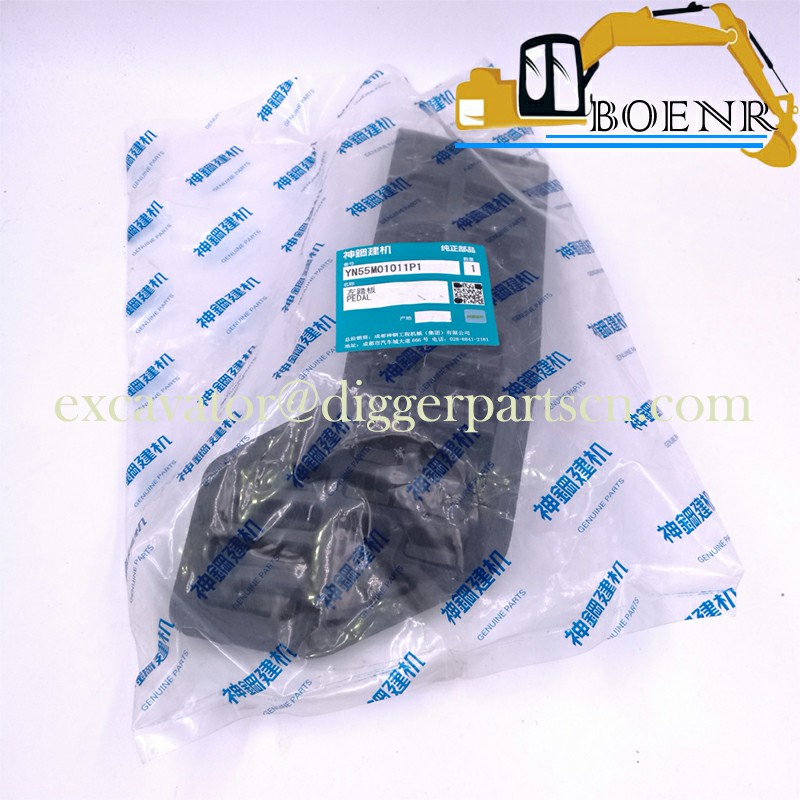

YN55M01011P1 Pedal For SK200-8 SK210-8 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK295-9
SK200-8 SK210-8 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK295-9 SK350-8 SK350-9 SK485-8 SK485-9 Pedal YN55M01011P1
| Part Name | Pedal | Part Number | YN55M01011P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK295-9 SK350-8 SK350-9 SK485-8 SK485-9 |
Weight: 0.5 kg
Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| B1 | 1 | YN26M00064P1 | FOOT BOARD Mat |
| AR | YN55M00003F1 | FLOOR MAT Pedal Assy | |
| A8 | 4 | ZM22C08025 | BOLT Sems |
| A7 | 4 | ZM73C10020 | BOLT Sems |
| A6 | 1 | YN55M01010P1 | PEDAL |
| A5 | 1 | YN55M01011P1 | PEDAL |
| A4 | 2 | 2420Z1232 | NUT |
| A3 | 2 | YN03M01040P1 | GRIP |
| A2 | 1 | YN50M01046P1 | LEVER |
| A1 | 1 | YN50M01045P1 | LEVER Lever |
| AR | YN50M00013F1 | CONTROL LEVER Propel |
