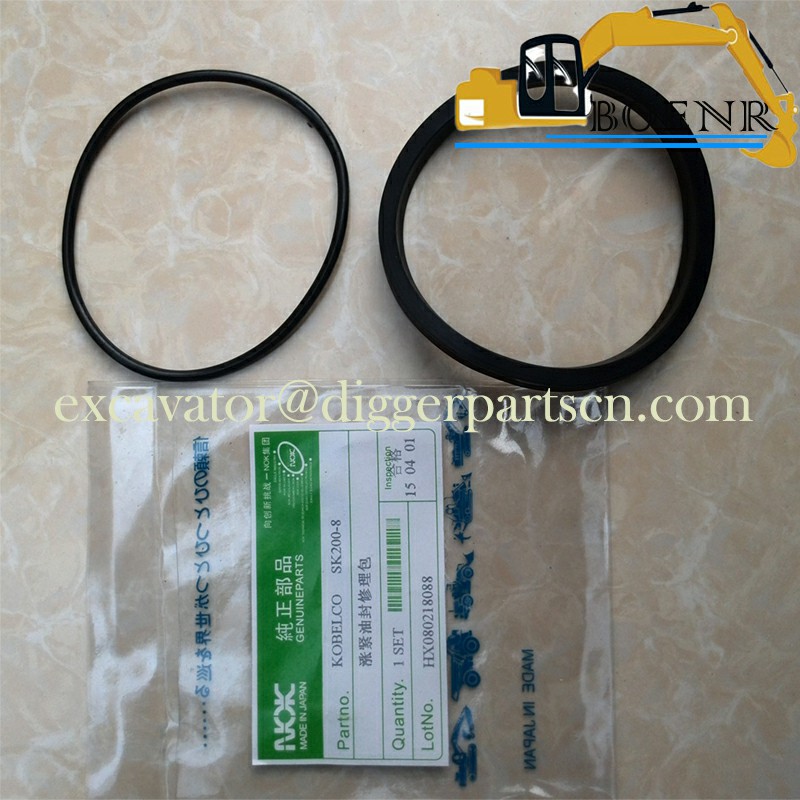

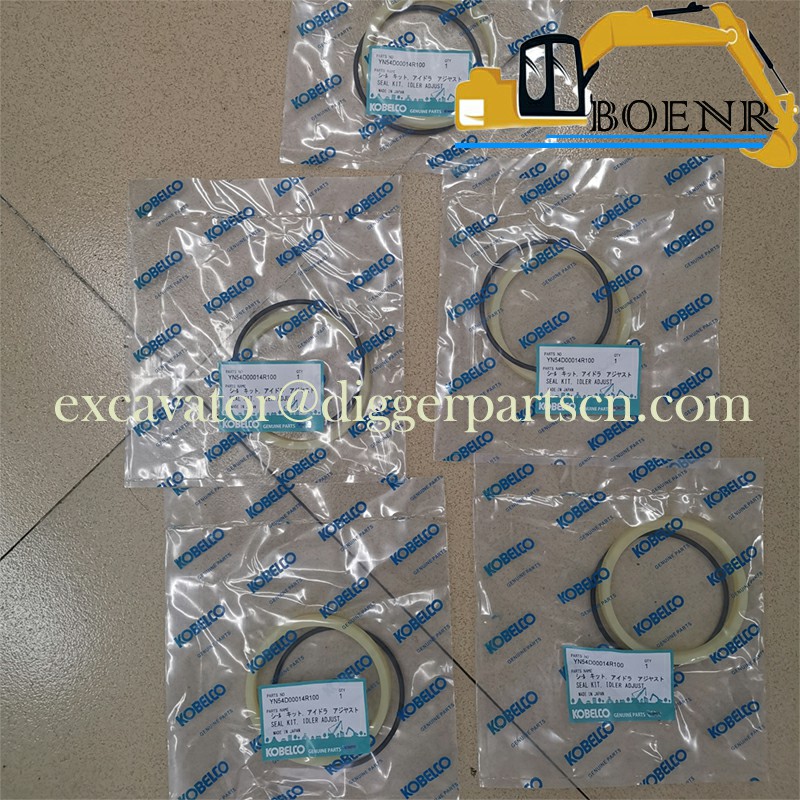

YN54D00014R100 Tensioner Cylinder seal Repair Kit For SK200-8 SK210-8
SK200-8 SK210-8 Tensioner Cylinder seal Repair Kit YN54D00014R100
| Part Name | Seal Repair Kit | Part Number | YN54D00014R100 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-8 SK210-8 SK215SR |
Weight:0.2KG

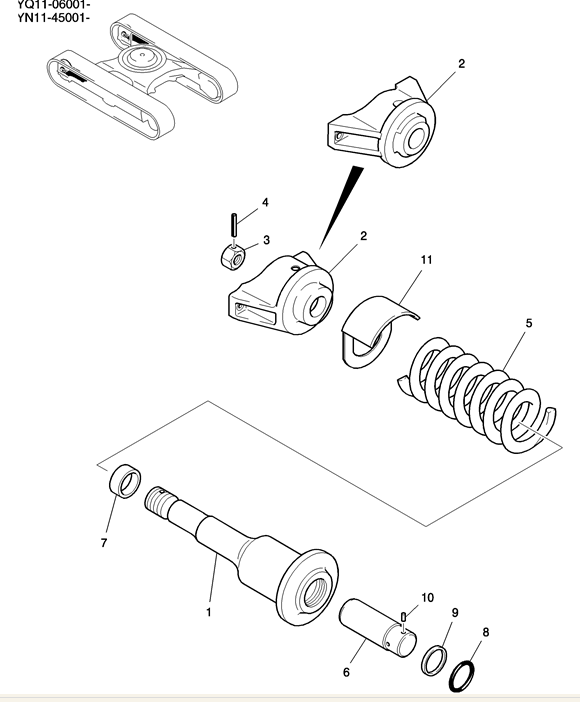

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 11 | 1 | YN54D01029P1 | COVER Cover |
| 2 | LQ54D01023P1 | PIN , ASN YN11-45936 | |
| 2 | LQ54D01023P1 | PIN , ASN YQ11-06071 | |
| 10 | 2 | 2419T4748 | PIN , BTW YN11-45001 & YN11-45935 |
| 10 | 2 | 2419T4748 | PIN , BTW YQ11-06001 & YQ11-06070 |
| 9 | 1 | 2418U130D35 | PACKING Oil Seal |
| 8 | 1 | ZD12G08000 | O-RING |
| 7 | 1 | YN54D01042P1 | COLLAR |
| 6 | 1 | YN01V01099P1 | PISTON |
| 5 | 1 | YN54D01047P1 | SPRING |
| 4 | 1 | ZP26D08080 | PIN Spring |
| 3 | 1 | YN54D01038P1 | NUT |
| 1 | YN54D01051P1 | YOKE Bracket , ASN YN11-45936 | |
| 1 | YN54D01051P1 | YOKE Bracket , ASN YQ11-06071 | |
| 2 | 1 | YN54D01041P1 | BRACKET , BTW YN11-45001 & YN11-45935 |
| 2 | 1 | YN54D01041P1 | BRACKET , BTW YQ11-06001 & YQ11-06070 |
| 1 | 1 | YN70V00006P1 | GREASE Cylinder, Grease |
| AR | YN54D00014F1 | IDLER Adjust Assy , ASN YN11-45936 | |
| AR | YN54D00014F1 | IDLER Adjust Assy , ASN YQ11-06071 | |
| AR | YN54D00013F1 | IDLER Adjust Assy , BTW YN11-45001 & YN11-45935 | |
| AR | YN54D00013F1 | IDLER Adjust Assy , BTW YQ11-06001 & YQ11-06070 |
