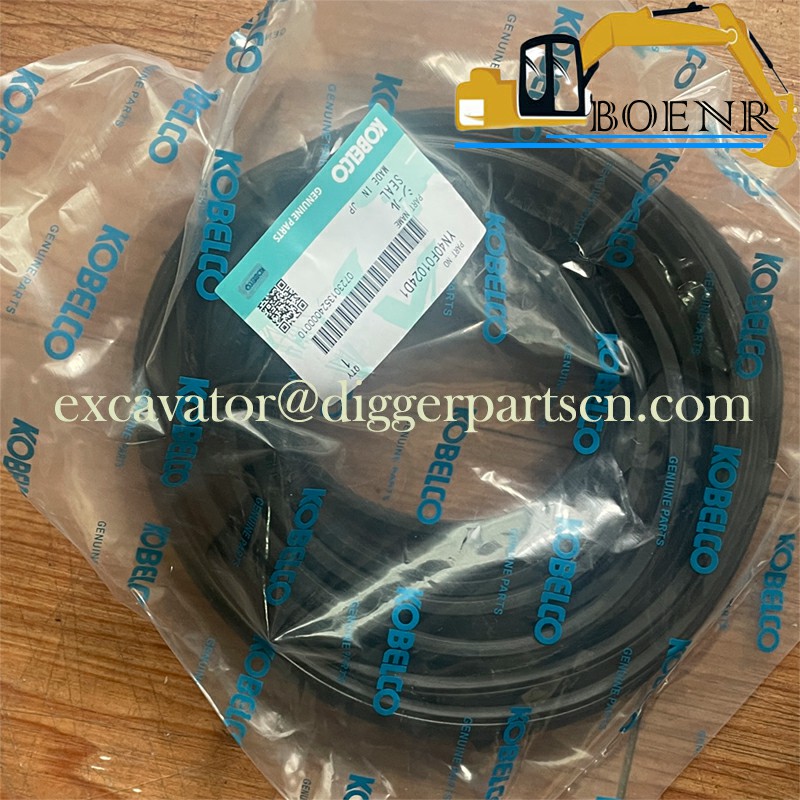

YN40F01024D1 Swing Bearing Seal For SK200-8 SK210-8 SK250-8 SK260-8 SK210-9
SK200-8 SK210-8 SK250-8 SK260-8 SK210-9 Swing Bearing Seal YN40F01024D1
| Part Name | Seal | Part Number | YN40F01024D1 |
| Brand | Kobelco , Kobeki | Applicable Model | SK200-8 SK210-8 SK250-8 SK260-8 SK210-9 |
Weight: 0.5 kg

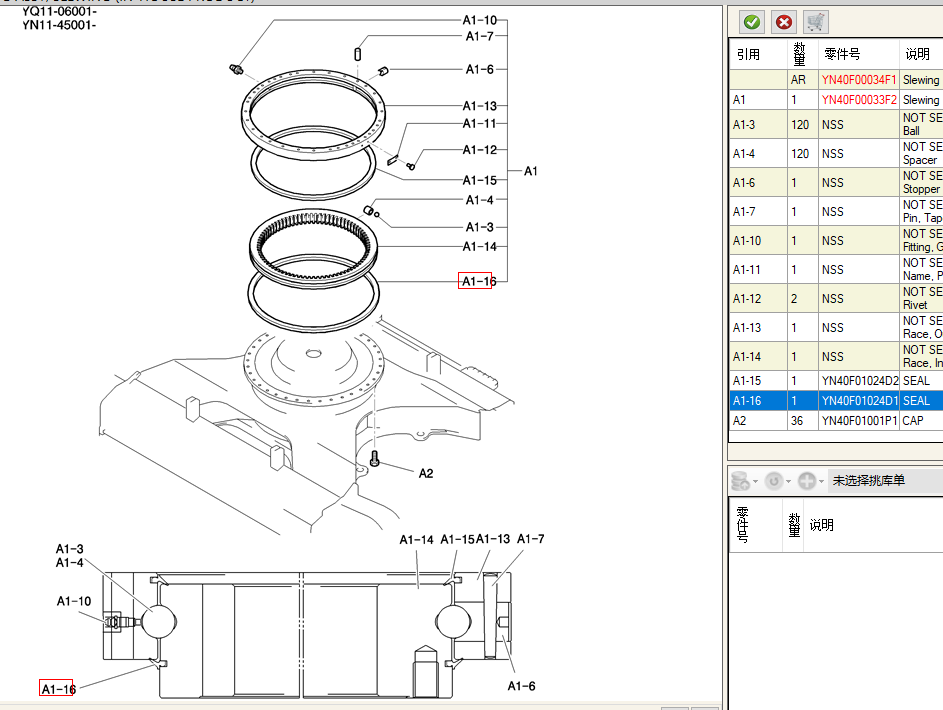

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| A2 | 36 | YN40F01001P1 | CAP |
| A1-16 | 1 | YN40F01024D1 | SEAL |
| A1-15 | 1 | YN40F01024D2 | SEAL |
| A1-14 | 1 | NSS | NOT SERVICED SEPARATELY Race, Inner |
| A1-13 | 1 | NSS | NOT SERVICED SEPARATELY Race, Outer |
| A1-12 | 2 | NSS | NOT SERVICED SEPARATELY Rivet |
| A1-11 | 1 | NSS | NOT SERVICED SEPARATELY Name, Plate |
| A1-10 | 1 | NSS | NOT SERVICED SEPARATELY Fitting, Grease |
| A1-7 | 1 | NSS | NOT SERVICED SEPARATELY Pin, Taper |
| A1-6 | 1 | NSS | NOT SERVICED SEPARATELY Stopper |
| A1-4 | 120 | NSS | NOT SERVICED SEPARATELY Spacer |
| A1-3 | 120 | NSS | NOT SERVICED SEPARATELY Ball |
| A1 | 1 | YN40F00033F2 | Slewing |
| AR | YN40F00034F1 | Slewing | |
| 2 | 36 | YN40F01001P1 | CAP |
| 1-9 | 1 | ZG91S02000 | LUBE NIPPLE Nipple, Grease |
| 1-8 | 2 | 2420Z1036D3 | CLEVIS |
| 1-7 | 1 | YN22T00194P1 | TYPE PLATE Name Plate |
| 1 | YN40F01024D2 | SEAL , ASN YN11-50415 | |
| 1 | YN40F01024D2 | SEAL , ASN YQ11-06680 | |
| 1-6 | 1 | YN40F01019D2 | SEAL , BTW YN11-45001 & YN11-50414 |
| 1-6 | 1 | YN40F01019D2 | SEAL , BTW YQ11-06001 & YQ11-06679 |
| 1 | YN40F01024D1 | SEAL , ASN YN11-50415 | |
| 1 | YN40F01024D1 | SEAL , ASN YQ11-06680 | |
| 1-5 | 1 | YN40F01019D1 | SEAL , BTW YN11-45001 & YN11-50414 |
| 1-5 | 1 | YN40F01019D1 | SEAL , BTW YQ11-06001 & YQ11-06679 |
| 1-4 | 120 | YN40F01018P1 | RETAINER |
| 1-3 | 120 | 2425T307 | BALL |
| 1-2 | 1 | NSS | NOT SERVICED SEPARATELY Inner |
| 1-1C | 1 | 2419T1964D1 | PIN Taper |
| 1-1B | 1 | YN40F01020P1 | PLUG |
| 1-1A | 1 | NSS | NOT SERVICED SEPARATELY Outer |
| 1-1 | 1 | NSS | NOT SERVICED SEPARATELY Outer |
| 1 | 1 | YN40F00026F1 | RING Slewing |
| AR | YN40F00027F1 | Slewing (in-house Product) |
