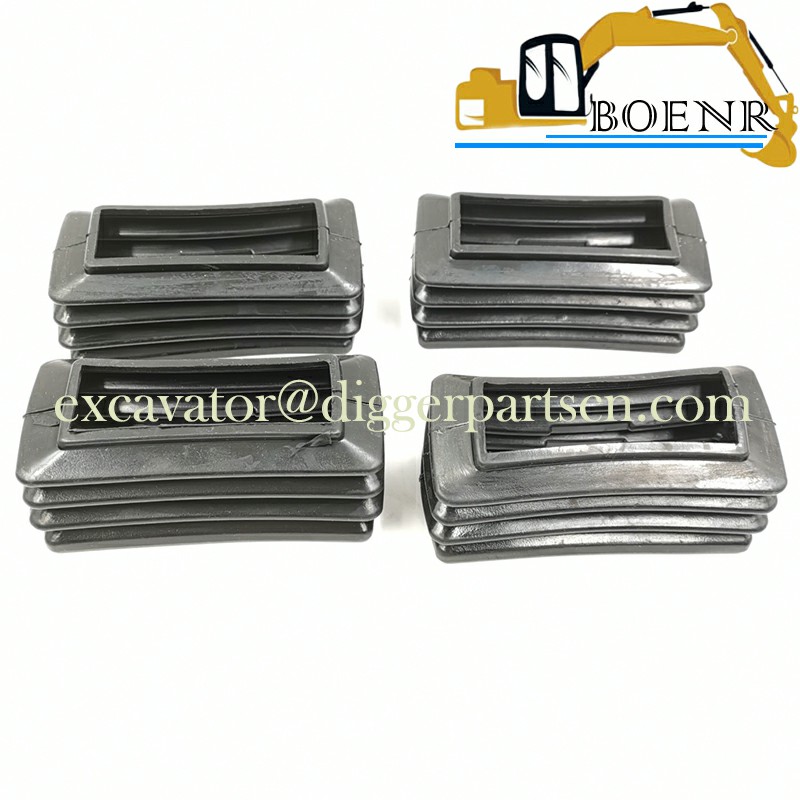

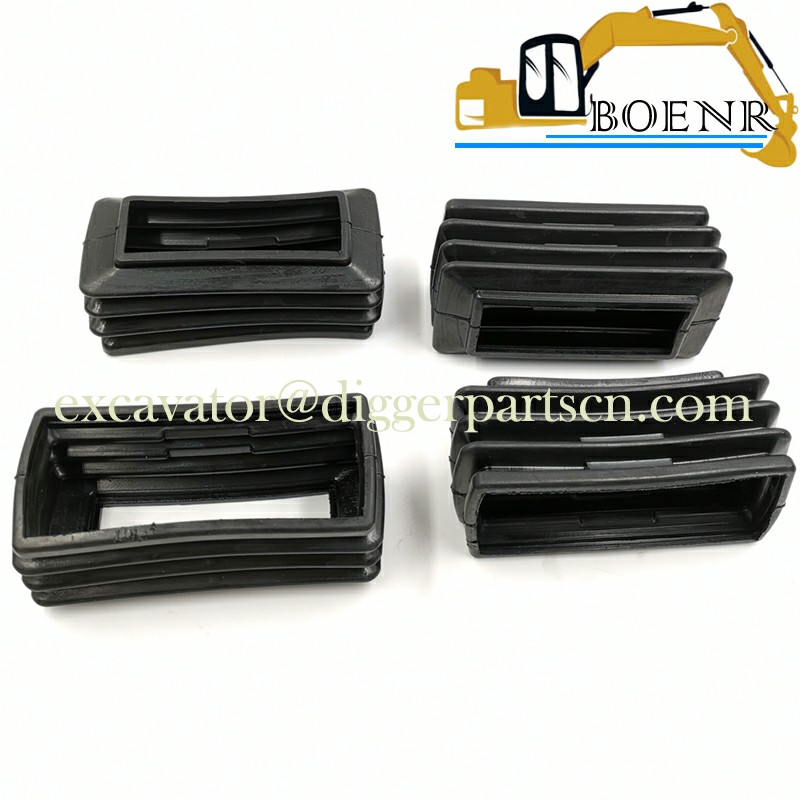

YN30V00105S005 Pilot Valve Cover For SK200-8 SK135SR SK140SR SK170-8 SK210-8 SK215SR SK235SR

SK200-8 SK170-8 SK210-8 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK295-9 SK350-8 SK350-9 SK485-8 SK485-9 Pilot Valve Cover YN30V00105S005

Part Name	Cover	Part Number	YN30V00105S005
Brand	Kobelco, Kobeki	Applicable Model	SK200-8 SK170-8 SK210-8 SK215SR SK235SR SK250-8 SK260-8 SK260-9 SK295-8 SK295-9 SK350-8 SK350-9 SK485-8 SK485-9

Weight: 0.2 kg

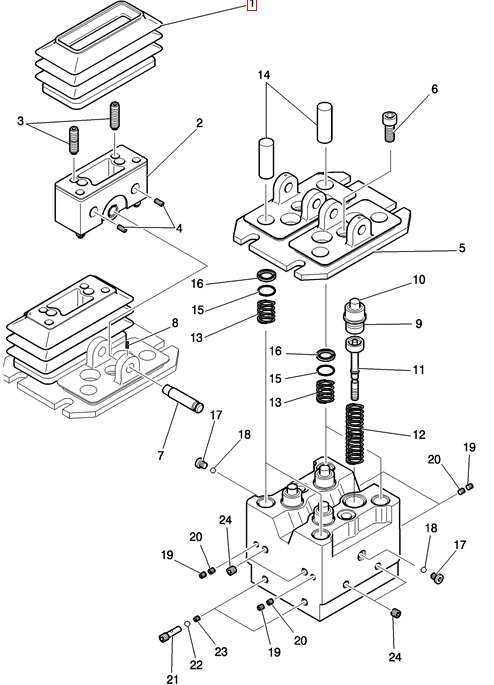

Image: Component Installation Diagram

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
	1	YN30V00105R180	KIT Repair Consists Of Ref. 21x3, 22x3, 23x3
	1	YN30V00105R170	KIT Repair Consists Of Ref. 19x4, 20x4
	1	YN30V00105R160	KIT Repair Consists Of Ref. 17x2, 18x2
	1	YN30V00105R150	KIT Repair Consists Of Ref. 14x4, 15x6, 16x6
	1	YN30V00105R140	KIT Repair Consists Of Ref. 13x4
	1	YN30V00105R130	KIT Repair Consists Of Ref. 12x4
	1	YN30V00105R120	KIT Repair Consists Of Ref. 9x4, 10x4
	1	YN30V00105R110	KIT Repair Consists Of Ref. 5x1, 6x2, 7x2, 8x2
	1	YN30V00105R100	KIT Repair Consists Of Ref. 2x1, 3x2, 4x2
24	10	NSS	NOT SERVICED SEPARATELY Plug
23	3	NSS	NOT SERVICED SEPARATELY Orifice
22	3	NSS	NOT SERVICED SEPARATELY Ball
21	3	NSS	NOT SERVICED SEPARATELY Orifice
20	4	NSS	NOT SERVICED SEPARATELY Orifice
19	4	NSS	NOT SERVICED SEPARATELY Plug
18	2	NSS	NOT SERVICED SEPARATELY Ball
17	2	NSS	NOT SERVICED SEPARATELY Plug
16	6	NSS	NOT SERVICED SEPARATELY Seal
15	6	NSS	NOT SERVICED SEPARATELY Seal
14	4	NSS	NOT SERVICED SEPARATELY Rod
13	4	NSS	NOT SERVICED SEPARATELY Spring
12	4	NSS	NOT SERVICED SEPARATELY Spring
11	4	YN30V00105S010	ROD Spool
10	4	NSS	NOT SERVICED SEPARATELY Rod, Push
9	4	NSS	NOT SERVICED SEPARATELY Plug
8	2	NSS	NOT SERVICED SEPARATELY Capscrew
7	2	NSS	NOT SERVICED SEPARATELY Pin
6	2	NSS	NOT SERVICED SEPARATELY Capscrew
5	1	NSS	NOT SERVICED SEPARATELY Plate
4	2	NSS	NOT SERVICED SEPARATELY Capscrew
3	2	NSS	NOT SERVICED SEPARATELY Capscrew
2	1	NSS	NOT SERVICED SEPARATELY Plate
1	2	YN30V00105S005	COVER
	AR	YN30V00105F1	VALVE Assy, Pilot (propelling)
