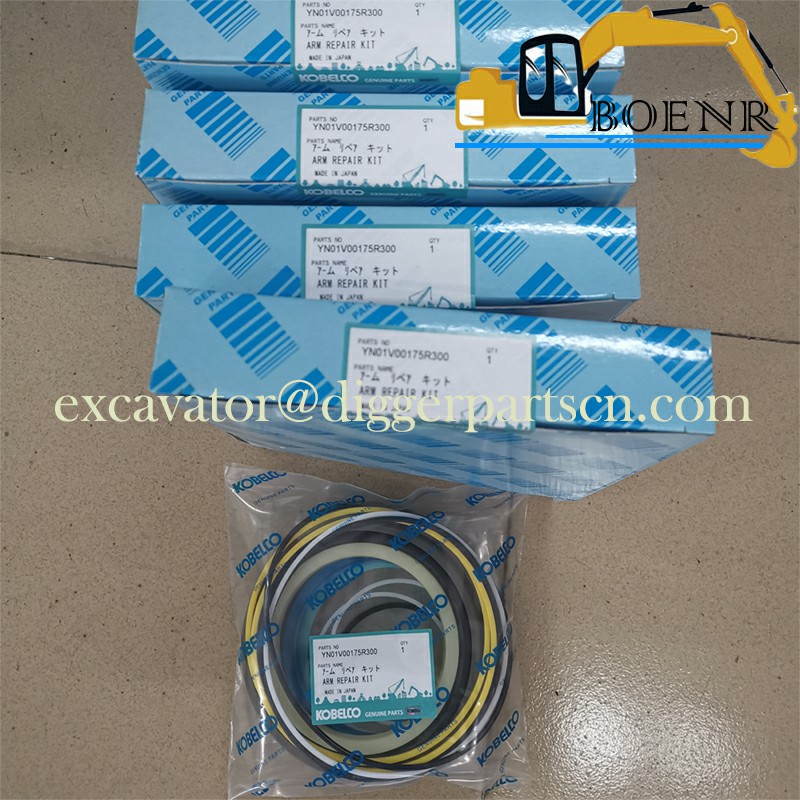

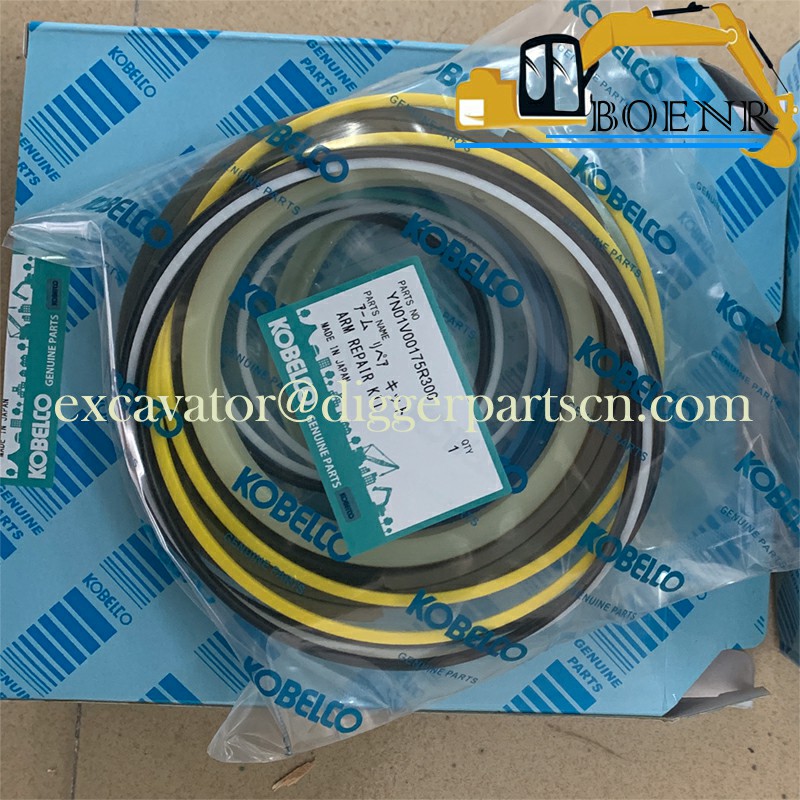

YN01V00175R300 arm cylinder seal kits For SK200-8 SK210-8
SK200-8 SK210-8 arm cylinder seal kits YN01V00175R300
| Part Name | seal kits | Part Number | YN01V00175R300 |
| Brand | Kobelco、Kobeki | Applicable Model | seal kits |
Weight:0.6KG

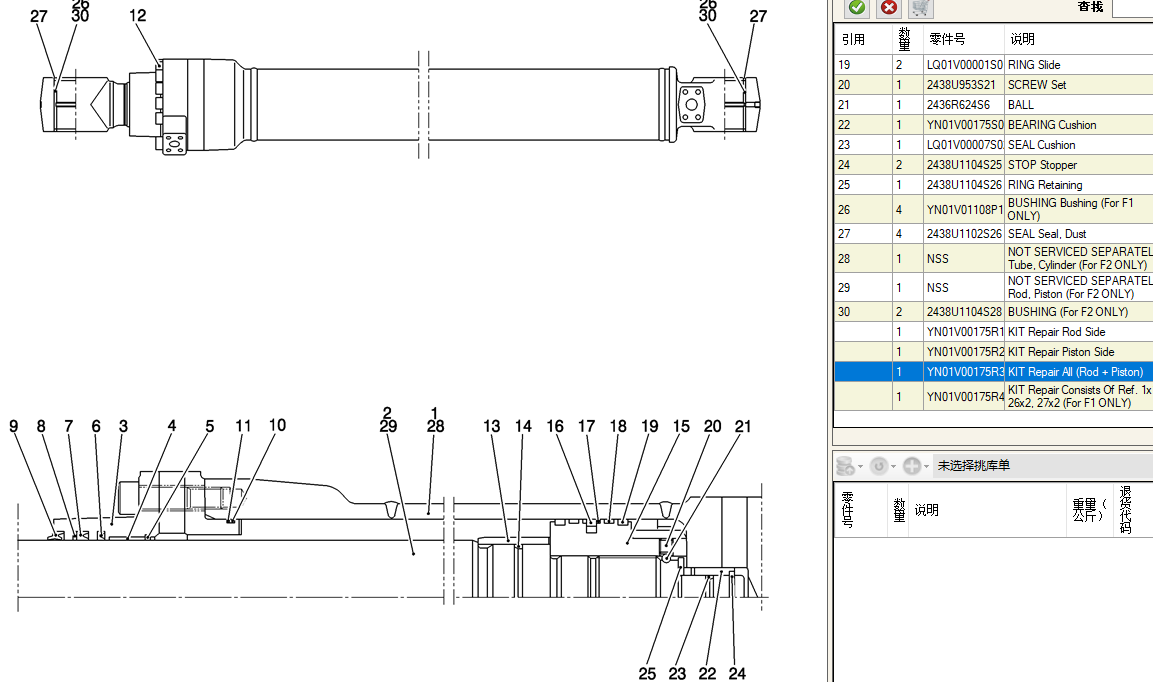

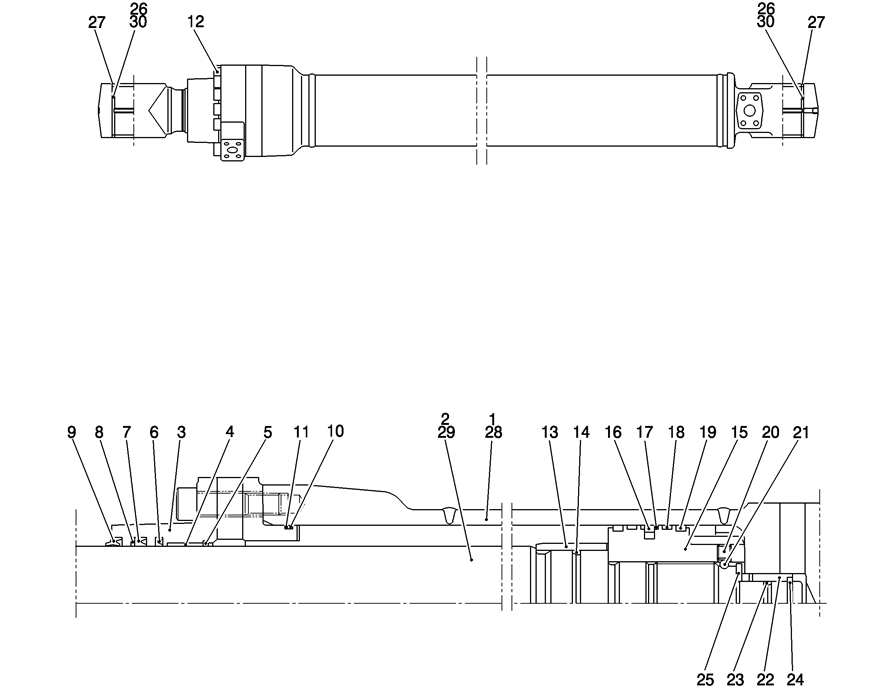

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YN01V00175R400 | KIT Repair Consists Of Ref. 1x1, 26x2, 27x2 (For F1 ONLY) | |
| 1 | YN01V00175R300 | KIT Repair All (Rod + Piston) | |
| 1 | YN01V00175R200 | KIT Repair Piston Side | |
| 1 | YN01V00175R100 | KIT Repair Rod Side | |
| 30 | 2 | 2438U1104S28 | BUSHING (For F2 ONLY) |
| 29 | 1 | NSS | NOT SERVICED SEPARATELY Rod, Piston (For F2 ONLY) |
| 28 | 1 | NSS | NOT SERVICED SEPARATELY Tube, Cylinder (For F2 ONLY) |
| 27 | 4 | 2438U1102S26 | SEAL Seal, Dust |
| 26 | 4 | YN01V01108P1 | BUSHING Bushing (For F1 ONLY) |
| 25 | 1 | 2438U1104S26 | RING Retaining |
| 24 | 2 | 2438U1104S25 | STOP Stopper |
| 23 | 1 | LQ01V00007S025 | SEAL Cushion |
| 22 | 1 | YN01V00175S022 | BEARING Cushion |
| 21 | 1 | 2436R624S6 | BALL |
| 20 | 1 | 2438U953S21 | SCREW Set |
| 19 | 2 | LQ01V00001S019 | RING Slide |
| 18 | 2 | YN01V00175S018 | RING Slide |
| 17 | 2 | LQ01V00001S017 | BACK-UP RING |
| 16 | 1 | LQ01V00001S016 | RING Seal |
| 15 | 1 | YN01V00175S015 | PISTON |
| 14 | 1 | YN01V00175S014 | SEAL Cushion |
| 13 | 1 | YN01V00175S013 | BEARING Cushion |
| 12 | 12 | ZS23C18080 | SCREW Cap |
| 11 | 1 | LQ01V00001S011 | RING Back Up |
| 10 | 1 | ZD12G13000 | O-RING |
| 9 | 1 | 2438U776S9 | RING Wiper |
| 8 | 1 | YN01V00105S008 | BACK-UP RING |
| 7 | 1 | YN01V00175S007 | RING U |
| 6 | 1 | YN01V00175S006 | RING Buffer |
| 5 | 1 | 2438U776S5 | SNAP RING Retaining |
| 4 | 1 | 2438U1018S4 | BUSHING |
| 1 | YN01V00105S003 | CYLINDER HEAD | |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Rod, Piston (For F1 ONLY) |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY Tube, Cylinder (For F1 ONLY) |
| AR | YN01V00175F2 | CYLINDER Assy, Arm | |
| AR | YN01V00175F1 | CYLINDER Assy, Arm |
