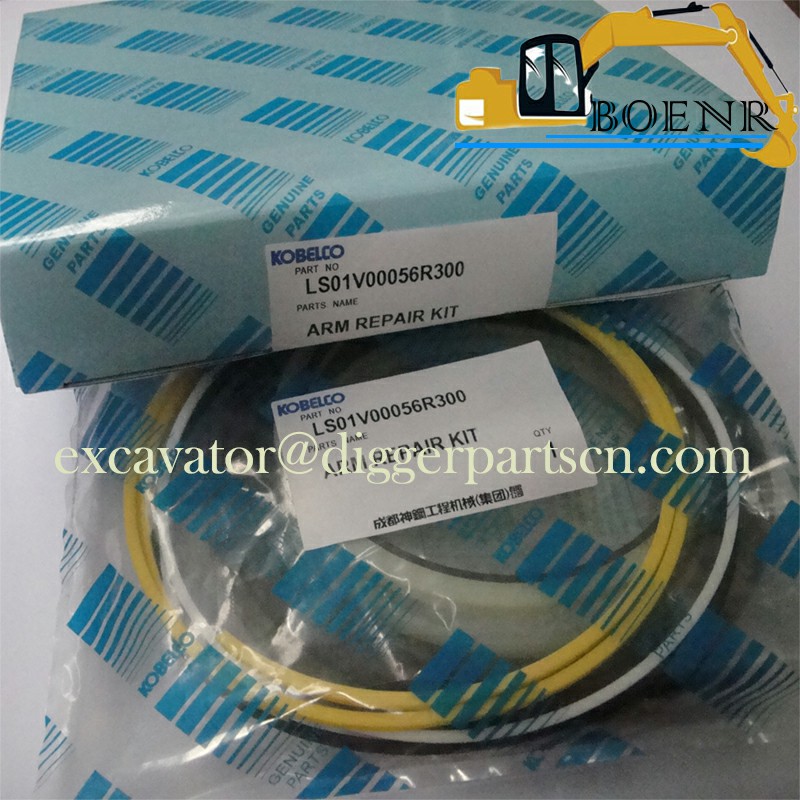

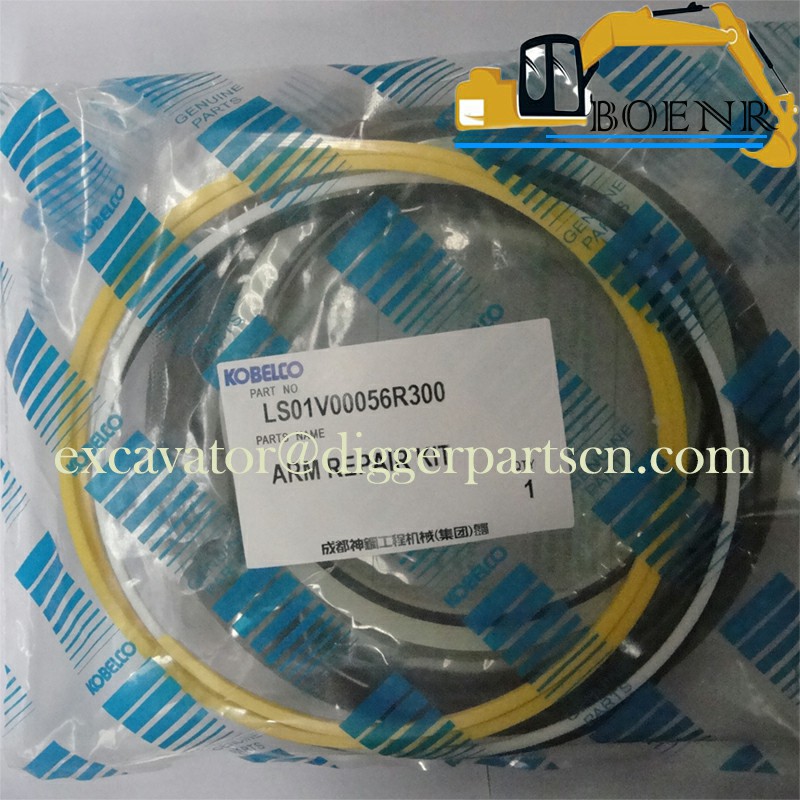

LS01V00056R300 Arm Seal kit For SK430-8 SK450-8 SK480-8 SK485-8 SK485-9
SK430-8 SK450-8 SK480-8 SK485-8 SK485-9 Arm Seal kit LS01V00056R300
| Part Name | Seal kit | Part Number | LS01V00056R300 |
| Brand | Kobelco , kobeki | Applicable Model | SK430-8 SK450-8 SK480-8 SK485-8 SK485-9 |
Weight: 0.6KG

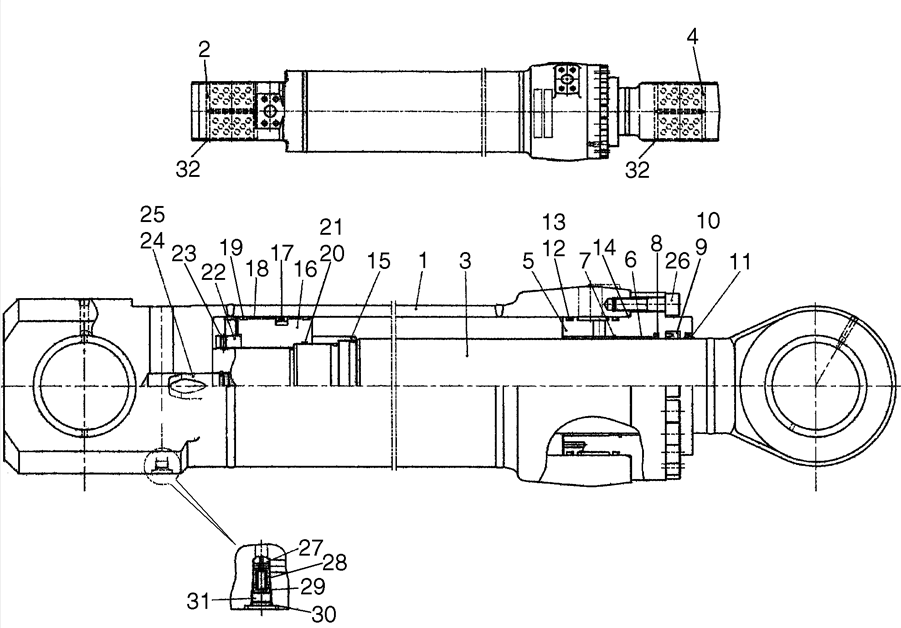

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| K | 1 | LS01V00056R500 | KIT Kit, Repair (Contains Items 2, 3, 24, 25 & 32) |
| K | 1 | LS01V00056R400 | KIT Kit, Repair (Contains Items 1, 2 & 32) |
| K | 1 | LS01V00056R300 | KIT Kit, Repair (Contains Items 8 - 14 & 17 - 21) |
| K | 1 | LS01V00056R200 | KIT Kit, Repair (Contains Items 17 - 21) |
| K | 1 | LS01V00056R100 | KIT Kit, Repair (Contains Items 8 - 14) |
| 32 | 4 | LS01V00055S026 | GASKET Seal |
| 31 | 1 | YN01V00148S032 | PLUG |
| 30 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 29 | 1 | YN01V00148S030 | SPACER |
| 28 | 1 | LS01V00056S028 | SPRING Spring |
| 27 | 1 | LS01V00056S027 | HYDRAULIC VALVE Orifice |
| 26 | 20 | LS01V00055S024 | SCREW Screw, Cap |
| 25 | 1 | LS01V00056S025 | RING Ring |
| 24 | 1 | LS01V00056S024 | RETAINER Cushion |
| 23 | 1 | LS01V00056S023 | DOWEL Screw, Set |
| 22 | 1 | LS01V00056S022 | NUT Nut |
| 21 | 2 | LS01V00056S021 | RING Ring, Back-Up |
| 20 | 1 | ZD12G11500 | O-RING ID 114.40 ± 0.94 x OD 120mm |
| 19 | 2 | LS01V00056S019 | RING Ring |
| 18 | 3 | LS01V00056S018 | RING Ring, Wear |
| 17 | 1 | LS01V00056S017 | GASKET Seal, Piston |
| 16 | 1 | LS01V00056S016 | PISTON Piston |
| 15 | 1 | LS01V00056S015 | RING Ring |
| 14 | 1 | LS01V00056S014 | O-RING O-Ring |
| 13 | 2 | LS01V00056S013 | RING Ring, Back-Up |
| 12 | 2 | ZD12G18000 | O-RING ID 179.30 ± 1.40 x OD 190mm |
| 11 | 1 | LS01V00056S011 | GASKET Seal, Dust |
| 10 | 1 | LS01V00056S010 | RING Ring, Back-Up |
| 9 | 1 | LS01V00056S009 | GASKET Seal |
| 8 | 1 | LS01V00056S008 | GASKET Seal |
| 7 | 1 | LS01V00056S007 | RING Ring, Retaining |
| 6 | 1 | LS01V00056S006 | BUSHING Bushing |
| 5 | 1 | LS01V00056S005 | COVER Cover |
| 3 | 1 | NA | NOT SERVICED Rod, Cylinder |
| 2 | 2 | LS01V01023P1 | BUSHING Bushing |
| 1 | 1 | NA | NOT SERVICED Tube, Cylinder |
| 1 | LS01V00056F1 | CYLINDER Boom Arm Cylinder Assembly |
