LS01V00055R300 Boom Cylinder Seal Kit For SK430-8 SK450-8 SK460-8 SK485-9 SK480-8 SK485-8

SK430-8 SK450-8 SK460-8 SK485-9 SK480-8 SK485-8 Boom Cylinder Seal Kit LS01V00055R300

Part Name	Boom Cylinder Seal Kit	Part Number	LS01V00055R300
Brand	Kobelco, kobeki	Applicable Model	SK430-8 SK450-8 SK460-8 SK485-9 SK480-8 SK485-8

Weight: 0.6KG

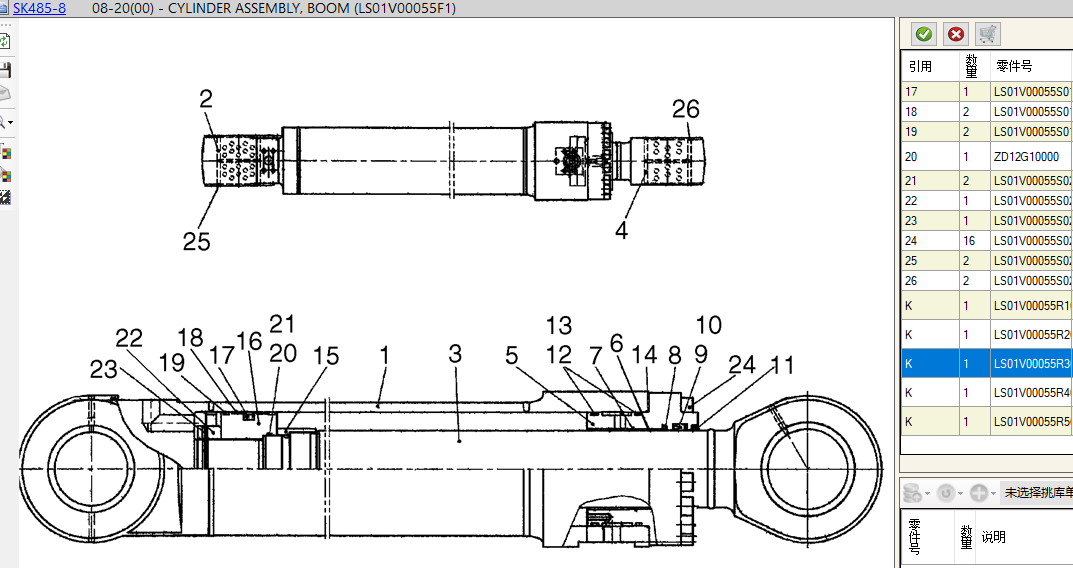

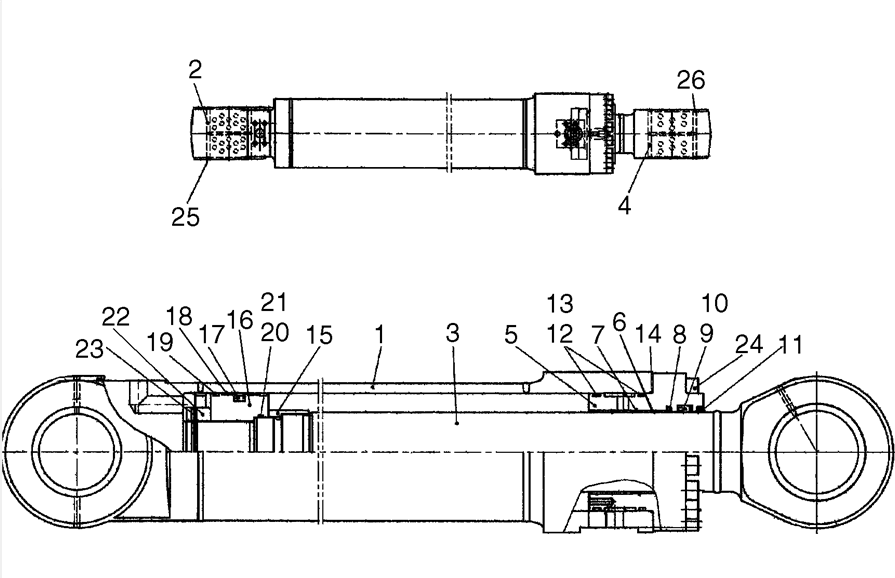

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
K	1	LS01V00055R500	REPAIR KIT Kit, Repair (Contains Items 3, 4 & 26)
K	1	LS01V00055R400	REPAIR KIT Kit, Repair (Contains Items 1, 2 & 25)
K	1	LS01V00055R300	REPAIR KIT Kit, Repair (Contains Items 8 - 14 & 18 - 21)
K	1	LS01V00055R200	REPAIR KIT Kit, Repair (Contains Items 17 - 21)
K	1	LS01V00055R100	REPAIR KIT Kit, Repair (Contains Items 8 - 14)
26	2	LS01V00055S026	GASKET Seal
25	2	LS01V00055S025	SEAL Seal
24	16	LS01V00055S024	SCREW Screw, Cap
23	1	LS01V00055S023	SCREW Screw, Set
22	1	LS01V00055S022	NUT Nut
21	2	LS01V00055S021	BACK-UP RING Ring, Back-Up
20	1	ZD12G10000	O-RING ID 99.40 ± 0.85 x OD 105mm
19	2	LS01V00055S019	RING Ring
18	2	LS01V00055S018	WEAR RING Ring, Wear
17	1	LS01V00055S017	SEAL Seal, Piston
16	1	LS01V00055S016	PISTON Piston
15	1	LS01V00055S015	RING Ring
14	1	LS01V00055S014	O-RING O-Ring
13	2	LS01V00055S013	BACK-UP RING Ring, Back-Up
12	2	ZD12G16000	O-RING 160mm ID x 170mm OD
11	1	LS01V00055S011	SEAL Seal, Dust
10	1	LS01V00055S010	BACK-UP RING Ring, Back-Up
9	1	LS01V00055S009	SEAL Seal
8	1	LS01V00055S008	SEAL Seal
7	1	LS01V00055S007	RING Ring, Retaining
6	1	LS01V00055S006	BUSHING Bushing
5	1	LS01V00055S005	COVER Cover
4	1	LS01V01025P1	BUSHING Bushing
3	1	NA	NOT SERVICED Rod, Cylinder
2	1	LS01V01024P1	BUSHING Bushing
1	1	NA	NOT SERVICED Tube, Cylinder
	2	LS01V00055F1	CYLINDER Boom Cylinder Assembly
