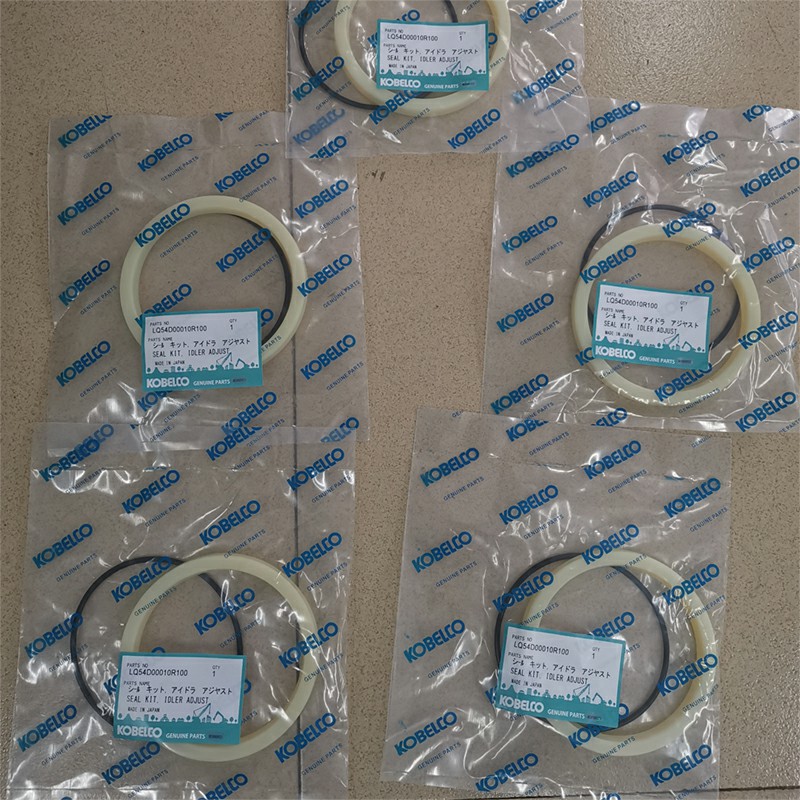

LQ54D00010R100 ZD12G09000 2445Z1034 Tensione Cylinder Repair Kit For SK250-8 SK210-8 SK210-9 SK260-9

SK250-8 SK210-8 SK210-9 SK260-9 SK235SR Tensioner Cylinder seal Repair Kit LQ54D00010R100 ZD12G09000 2445Z1034

Part NameCylinder seal RepairPart Number LQ54D00010R100 ZD12G09000 2445Z1034
BrandKobelco, KobekiApplicable ModelSK250-8 SK210-8 SK210-9 SK260-9 SK235SR

Weight: 0.2 kg


LQ54D00010R100 ZD12G09000 2445Z1034 Tensione Cylinder Repair Kit For SK250-8 SK210-8 SK210-9 SK260-9

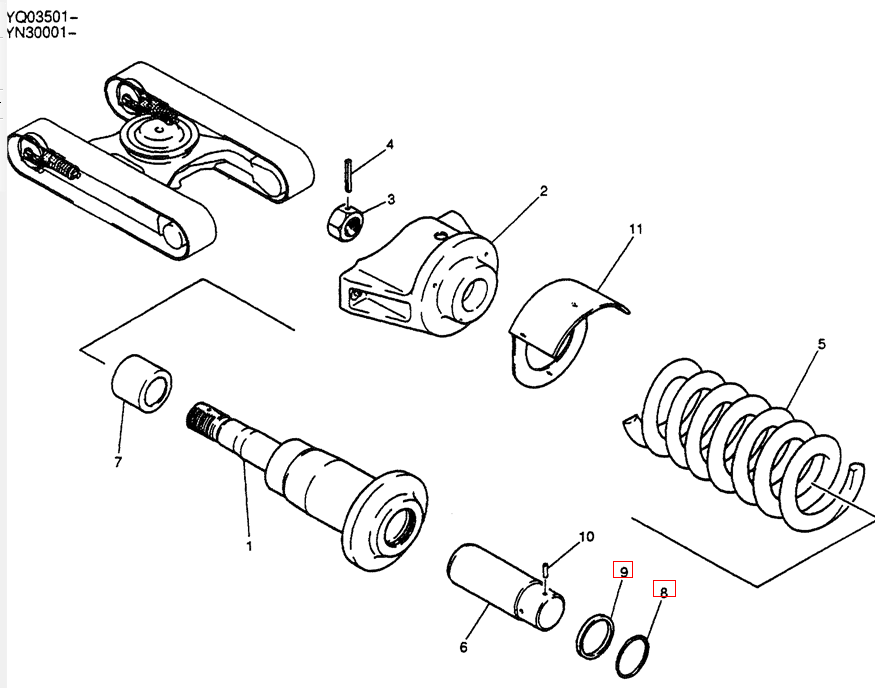

Parts Catalog

ITEMQTYPART NUMBERPART NAME
111LQ54D01014P1GUARD
102LQ54D01023P1PIN
912445Z1034GASKET
81ZD12G09000O-RING ID 89.40 ±   0.77 x OD 95mm
71YN54D01024P1COLLAR CLAMP
612439P174PISTON
51LQ54D01022P1SPRING
41ZP26D08080PIN Roll -- OD 08 x   80mm Long
31LQ54D01005P1NUT
21LQ54D01013P1U-BRACKET
11YN70V00004F2LUBE NIPPLE CYLINDER,   GREASE


LQ54D00010F1SPRING IDLER ADJUST   ASSY
