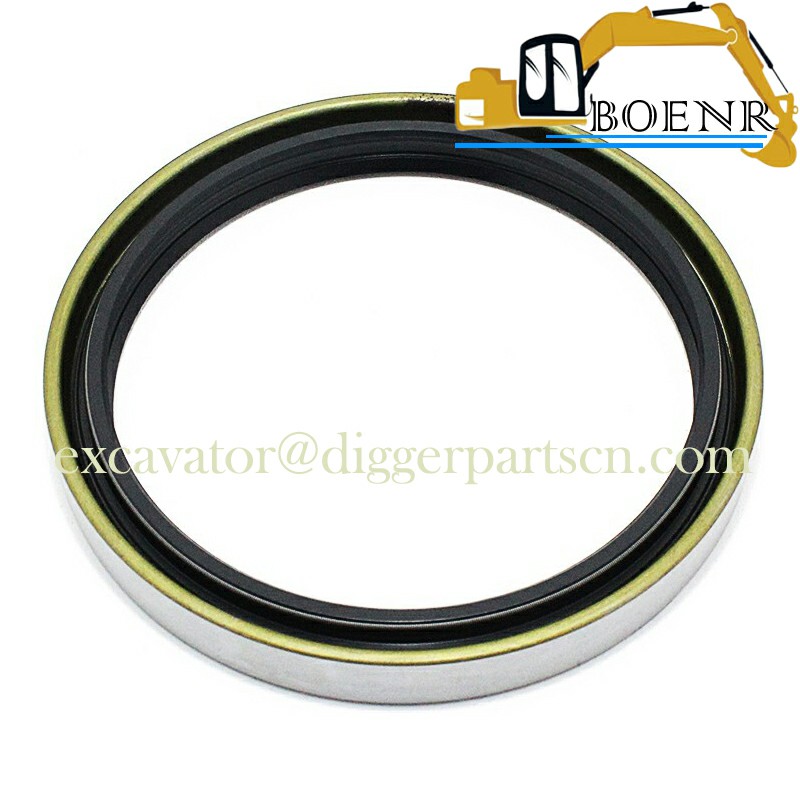

LQ32W01021P1 Swing Reduction Shaft Oil Seal For SK230-6 SK235SR SK250LC SK250-6E
SK230-6 SK235SR SK250LC SK250-6E Swing Reduction Shaft Oil Seal LQ32W01021P1
| Part Name | Oil Seal | Part Number | LQ32W01021P1 |
| Brand | Kobelco , kobeki | Applicable Model | SK230-6 SK235SR SK250LC SK250-6E |
Weight: 0.6KG

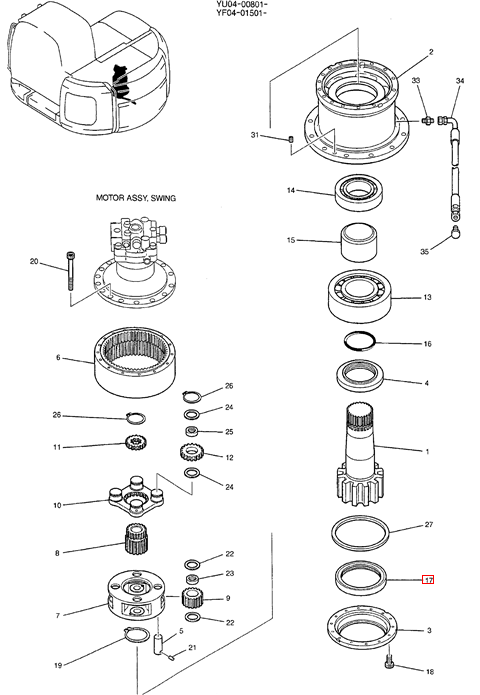

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 35 | 1 | 2444Z2728D3 | PLUG 1/2" PF x 31mm Long (No O-Ring supplied) |
| 34 | 1 | ZX32M08060 | FLEXIBLE HOSE |
| 33 | 1 | ZH22Z08012 | HYD CONNECTOR |
| 31 | 2 | ZS83C20030 | SCREW Set, M20 x 2.50 x 30mm |
| 27 | 1 | 2418T17494 | SPACER |
| 26 | 4 | ZR16X04000 | RING Retaining, ID 37 x OD 40 x Th 1.8mm |
| 25 | 4 | 2425Z540 | NEEDLE BEARING NEEDLE |
| 24 | 8 | LQ32W01013P1 | WASHER THRUST |
| 23 | 4 | 2425Z541 | NEEDLE BEARING NEEDLE |
| 22 | 8 | LQ32W01018P1 | WASHER THRUST |
| 21 | 4 | ZP26D08032 | PIN Roll, OD 08 x 32mm Long |
| 20 | 16 | ZS23C14150 | SCREW M14 x 2.0 x 150mm |
| 19 | 1 | ZR16X10000 | RING Retaining, ID 94.50 x OD 119 x Th 3.0mm |
| 18 | 14 | ZS23C10030 | SCREW M10 x 1.50 x 30mm |
| 17 | 1 | LQ32W01021P1 | GASKET OIL SEAL |
| 16 | 1 | ZD11G11000 | O-RING ID 109.40 ± 0.91 x OD 115mm |
| 15 | 1 | LQ32W01012P1 | SPACER |
| 14 | 1 | LQ32W01015P1 | BEARING ASSY SPHERICAL |
| 13 | 1 | LQ32W01016P1 | BEARING ASSY SPHERICAL |
| 12 | 4 | LQ32W01011P1 | DRIVEN SPROCKET PINION |
| 11 | 1 | LQ32W01027P1 | PLANETARY CARRIER SHAFT GEAR, SUN |
| 10 | 1 | LQ32W01007F1 | SPIDER ASSY |
| 9 | 4 | LQ32W01009P1 | DRIVEN SPROCKET PINION |
| 8 | 1 | LQ32W01010P1 | GEAR SUN |
| 7 | 1 | 2413J376 | DIFF. SPIDER |
| 6 | 1 | LQ32W01005P1 | RING GEAR |
| 5 | 4 | 2410T352 | ROLLER SHAFT |
| 4 | 1 | LQ32W01014P1 | HOSE SLEEVE |
| 3 | 1 | LQ32W01003P1 | RETAINER |
| 2 | 1 | LQ32W01022P1 | BEARING ASSY HOUSING |
| 1 | 1 | LQ32W01002P1 | DRIVEN SPROCKET SHAFT, PINION |
| AR | LQ32W00009F2 | GEAR REDUCTION UNIT ASSY, SWING |
