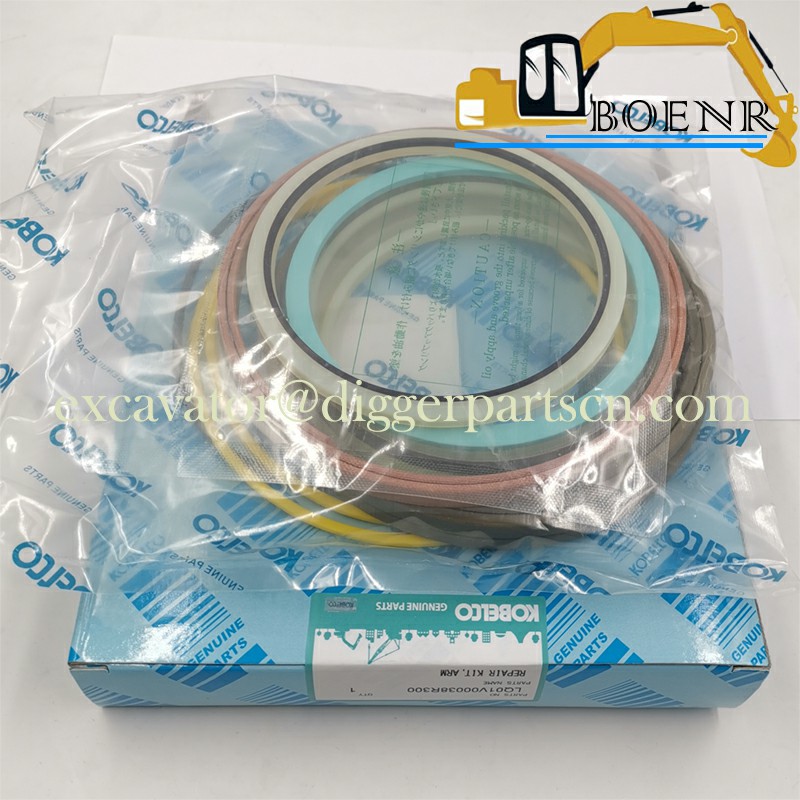

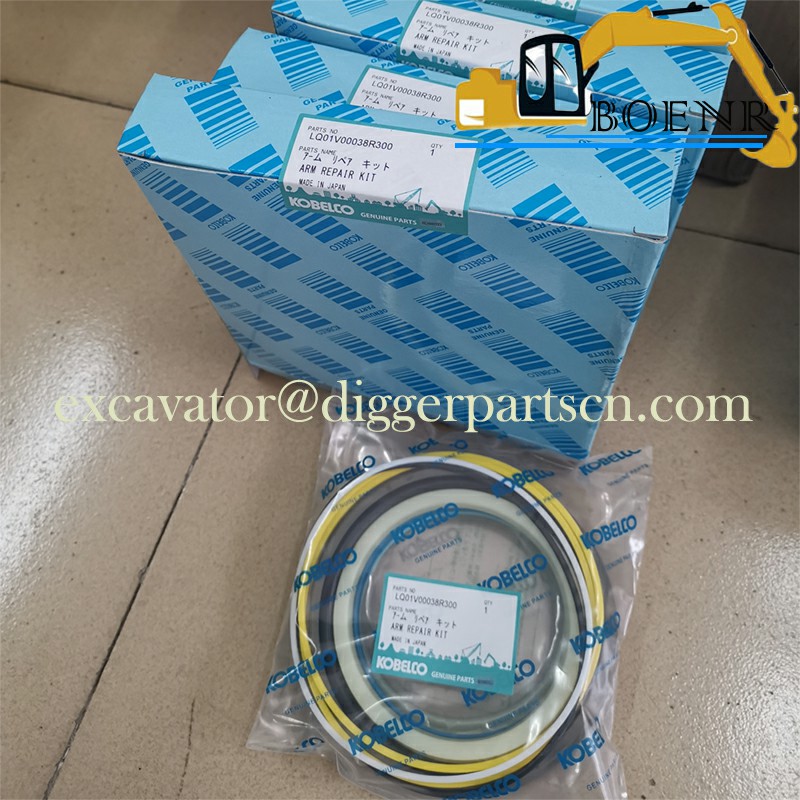

LQ01V00038R300 Arm Cylinder Seal KIT For SK250-8 SK260-8 SK260-9
SK250-8 SK260-8 SK260-9 Arm Cylinder Seal KIT LQ01V00038R300
| Part Name | Cylinder Seal KIT | Part Number | LQ01V00038R300 |
| Brand | Kobeki、Kobelco | Applicable Model | SK250-8 SK260-8 SK260-9 |
Weight0.6KG

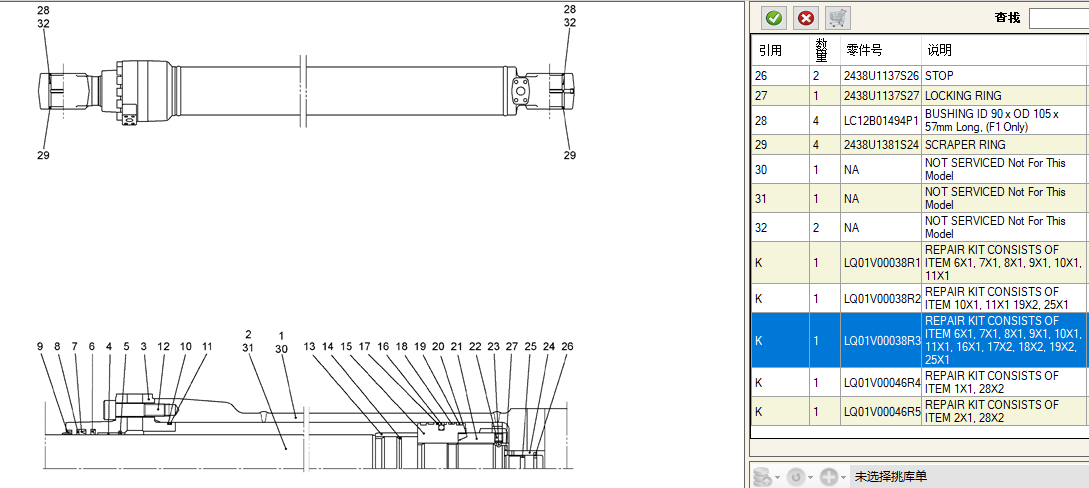

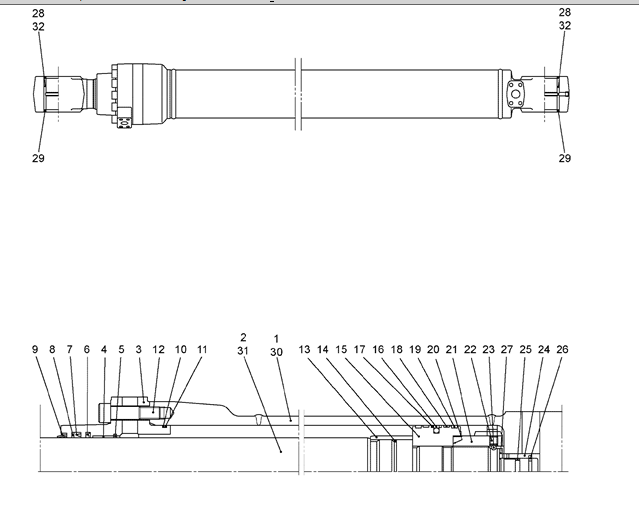

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | LQ01V00038R700 | REPAIR KIT CONSISTS OF ITEM 29X2, 31X1, 32X1 (F2 ONLY) |
| K | 1 | LQ01V00038R600 | REPAIR KIT CONSISTS OF ITEM 29X2, 30X1, 32X1 (F2 ONLY) |
| K | 1 | LQ01V00038R500 | REPAIR KIT CONSISTS OF ITEM 2X1, 28X2 (F1 ONLY) |
| K | 1 | LQ01V00038R400 | REPAIR KIT CONSISTS OF ITEM 1X1, 28X2 (F1 ONLY) |
| K | 1 | LQ01V00038R300 | REPAIR KIT CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 16X1, 17X2, 18X2, 19X2, 25X1 |
| K | 1 | LQ01V00038R200 | REPAIR KIT CONSISTS OF ITEM 10X1, 11X1 19X2, 25X1 |
| K | 1 | LQ01V00038R100 | REPAIR KIT CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| 32 | 2 | 2438U1324S22 | BUSHING (F2 ONLY) |
| 31 | 1 | NA | NOT SERVICED ROD,PISTON (F2 ONLY) |
| 30 | 1 | NA | NOT SERVICED TUBE,CYLINDER (F2 ONLY) |
| 29 | 4 | 2438U1381S24 | SCRAPER RING |
| 28 | 4 | LC12B01494P1 | BUSHING ID 90 x OD 105 x 57mm Long, (F1 Only) |
| 27 | 1 | 2438U1137S27 | LOCKING RING |
| 26 | 2 | 2438U1137S26 | STOP |
| 25 | 1 | LC01V00005S025 | SEAL |
| 24 | 1 | LQ01V00038S024 | RING CUSHION |
| 23 | 1 | 2436R624S6 | BALL |
| 22 | 1 | 2438U953S21 | SCREW |
| 21 | 1 | LB01V00007S021 | NUT |
| 20 | 1 | 2438U953S19 | SHIM |
| 19 | 2 | 2438U1104S20 | SLIDE |
| 18 | 2 | LQ01V00038S018 | RING SLIDE |
| 17 | 2 | LQ01V00038S017 | RING BACK UP |
| 16 | 1 | 2438U1104S18 | RING |
| 15 | 1 | LQ01V00038S015 | PISTON |
| 14 | 1 | LQ01V00038S014 | SEAL CUSHION |
| 13 | 1 | LQ01V00038S013 | RING CUSHION |
| 12 | 10 | ZS23C20080 | SCREW M20x2.5x80mm |
| 11 | 1 | LQ01V00038S011 | RING BACK UP |
| 10 | 1 | ZD12G14000 | O-RING ID 139.40 ± 1.12 x OD 145mm |
| 9 | 1 | YN01V00020S009 | MUDSCRAPER RING |
| 8 | 1 | LB01V00007S008 | BACK-UP RING |
| 7 | 1 | LQ01V00038S007 | RING U |
| 6 | 1 | LQ01V00038S006 | RING BUFFER |
| 5 | 1 | 2438U953S5 | LOCKING RING |
| 4 | 1 | 2438U953S4 | BUSHING |
| 3 | 1 | LQ01V00038S003 | CYLINDER HEAD |
| 2 | 1 | NA | NOT SERVICED ROD,PISTON (F1 ONLY) |
| 1 | 1 | NA | NOT SERVICED TUBE,CYLINDER (F1 ONLY) |
| LQ01V00038F2 | CYLINDER Assembly, Arm | ||
| LQ01V00038F1 | CYLINDER ASSY. Arm |
