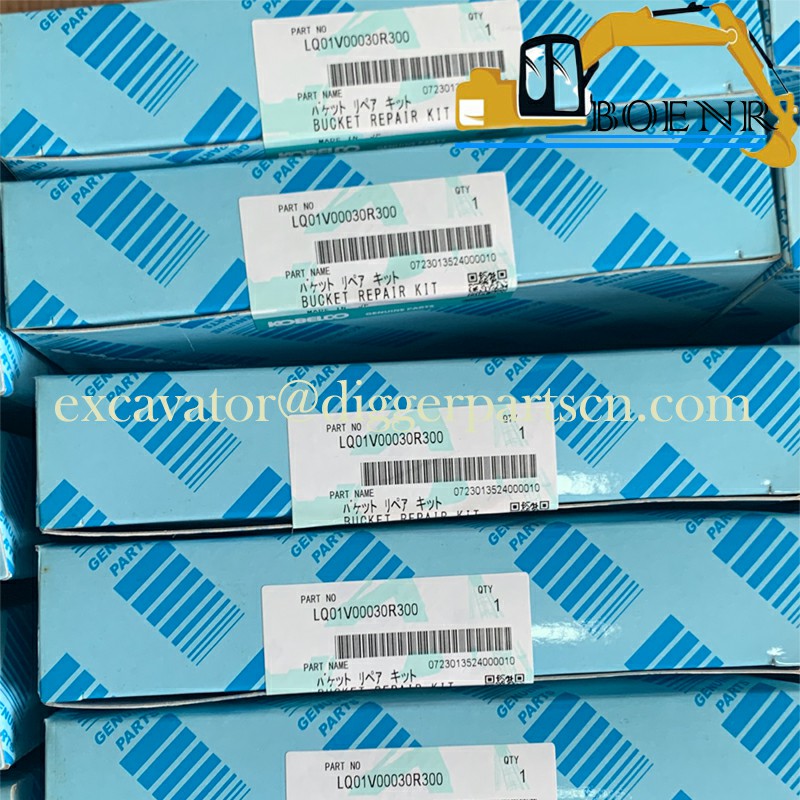

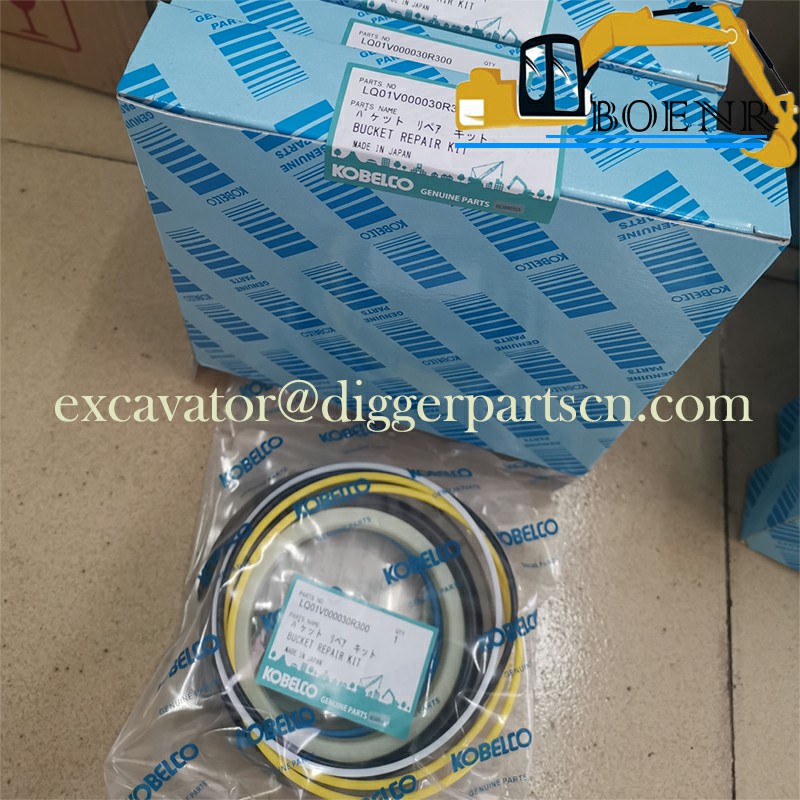

LQ01V00030R300 Bucket Cylinder Seal kit fits For SK250-8 SK260-8
SK250-8 SK260-8 Bucket Cylinder Seal kit fits LQ01V00030R300
| Part Name | Oil Seal kit | Part Number | LQ01V00030R300 |
| Brand | Kobelco、Kobeki、Nok | Applicable Model | SK250-8 SK260-8 |
Weight:0.6KG

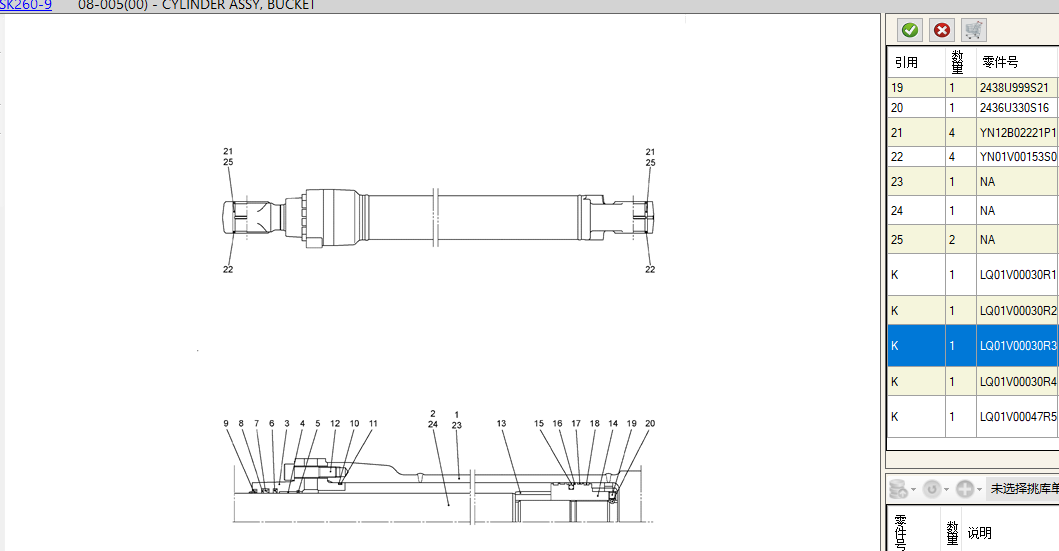

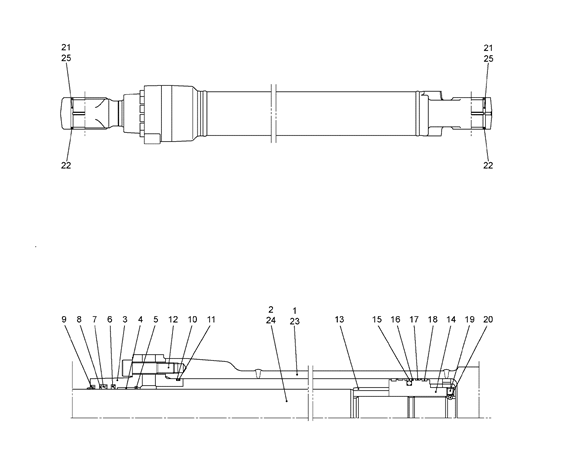

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | LQ01V00030R700 | KIT REPAIR, CONSISTS OF ITEM 22X2, 24X1, 25X1 (F2 ONLY) |
| K | 1 | LQ01V00030R600 | KIT REPAIR, CONSISTS OF ITEM 22X2, 23X1, 25X1 (F2 ONLY) |
| K | 1 | LQ01V00030R500 | KIT REPAIR, CONSISTS OF ITEM 2X1, 21X2, 22X2 (F1 ONLY) |
| K | 1 | LQ01V00030R400 | KIT REPAIR, CONSISTS OF ITEM 1X1, 21X2, 22X2 (F1 ONLY) |
| K | 1 | LQ01V00030R300 | REPAIR KIT CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 15X1, 16X2, 17X2, 18X2 |
| K | 1 | LQ01V00030R200 | REPAIR KIT CONSISTS OF ITEM 15X1, 16X2, 17X2, 18X2 |
| K | 1 | LQ01V00030R100 | SEAL KIT REPAIR, CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 |
| 25 | 2 | YN12B02221P1 | BUSHING |
| 24 | 1 | NA | NOT SERVICED ROD,PISTON |
| 23 | 1 | NA | NOT SERVICED TUBE,CYLINDER |
| 22 | 4 | YN01V00153S022 | SEAL RING,WIPER |
| 21 | 4 | YN12B02221P1 | BUSHING ID 80 x OD 95 x 47mm Long, (F1 Only) |
| 20 | 1 | 2436U330S16 | BALL |
| 19 | 1 | 2438U999S21 | SCREW Set -- M12x1.75mm |
| 18 | 2 | 2438U675S28 | RING |
| 17 | 2 | LQ01V00030S017 | RING SLIDE |
| 16 | 2 | YM01V00008S017 | RING |
| 15 | 1 | 2438U675S20 | RING |
| 14 | 1 | LQ01V00030S014 | PISTON |
| 13 | 1 | LQ01V00030S013 | BEARING CUSHION |
| 12 | 12 | ZS23C16075 | SCREW M16x2.0x75mm |
| 11 | 1 | 2438U1102S12 | RING |
| 10 | 1 | ZD12G12000 | GASKET O-Ring -- ID 119.40 ± 0.98 x OD 125mm |
| 9 | 1 | LP01V00008S009 | RING |
| 8 | 1 | 2438U959S8 | RING |
| 7 | 1 | YN01V00151S007 | RING U |
| 6 | 1 | YN01V00151S006 | RING BUFFER |
| 5 | 1 | 2438U959S5 | RING |
| 4 | 1 | 2438U1106S17 | BUSHING |
| 3 | 1 | YY01V00048S003 | CYLINDER HEAD |
| 2 | 1 | NA | NOT SERVICED ROD,PISTON |
| 1 | 1 | NA | NOT SERVICED TUBE,CYLINDER |
| LQ01V00030F1 | CYLINDER ASSY. BUCKET |
