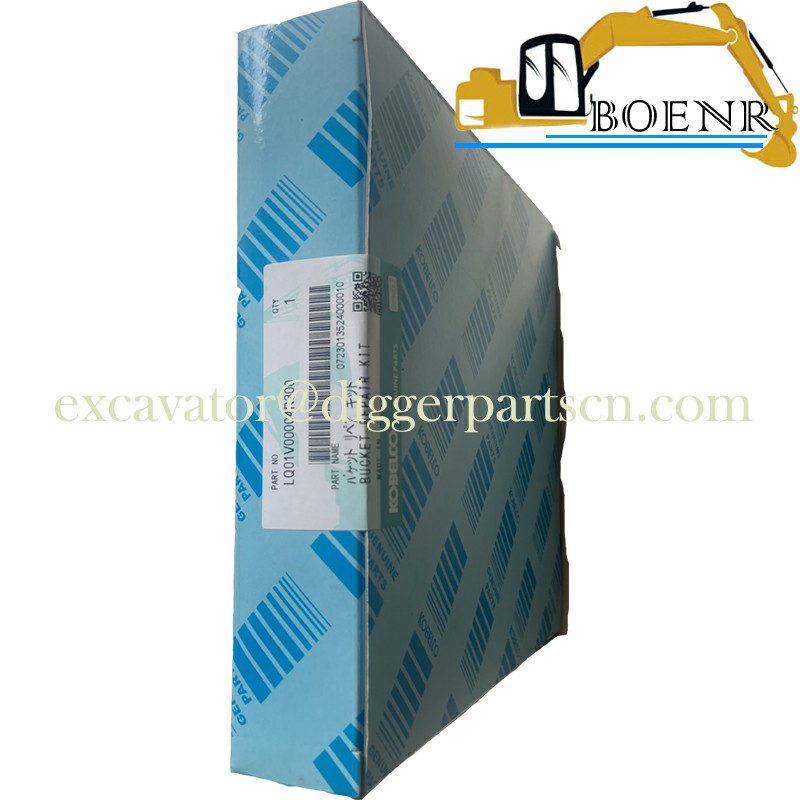

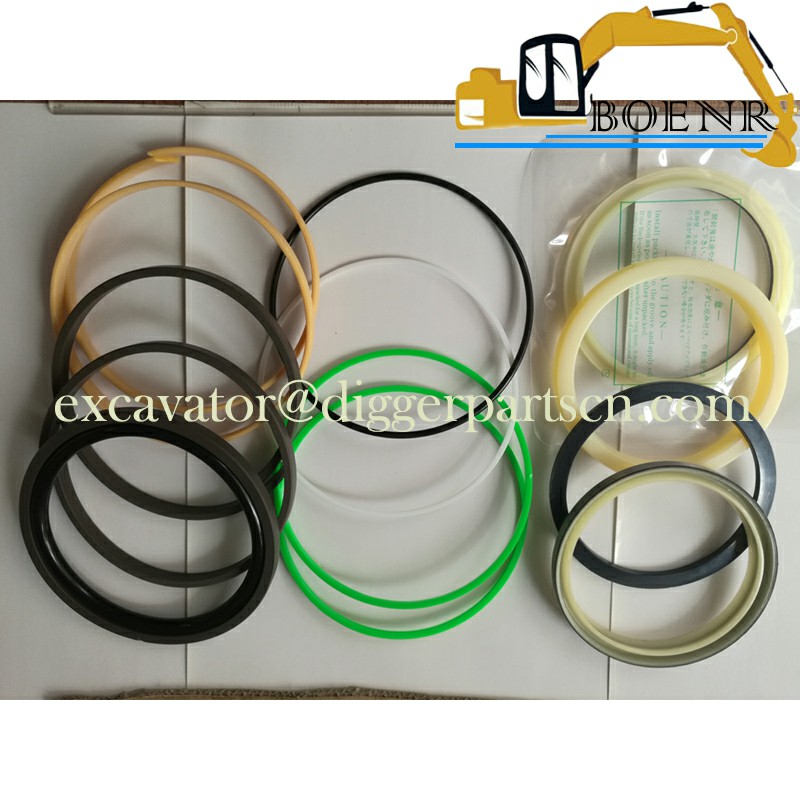

LQ01V00004R300 BUCKET Cylinder SEAL KIT For SK230-6 SK250LC
SK230-6 SK250LC BUCKET CYL SEAL KIT LQ01V00004R300
| Part Name | Cylinder Seal Kit | Part Number | LQ01V00004R300 |
| Brand | Kobelco、Kobeki | Applicable Model | SK230-6 SK250LC |
Weight:2KG

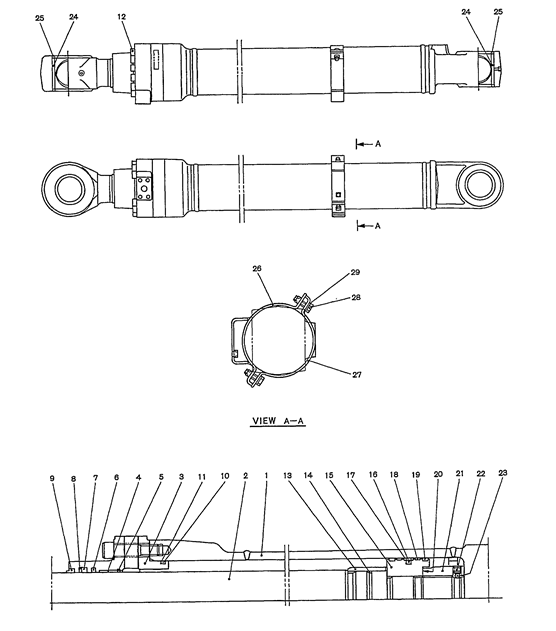

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| NSS | 1 | LQ01V00008R500 | PISTON ROD REPAIR KIT (CONSISTS OF REF 2X1, 24X1) |
| NSS | 1 | LQ01V00008R400 | BARREL REPAIR KIT, CYL TUBE (CONSISTS OF REF 1X1, 24X1) |
| NSS | 1 | LQ01V00008R300 | REPAIR KIT COMPLETE (CONSISTS OF REF 6X1, 7X1, 8X1, 9X1, 10X1, 11X1, 16X1, 17X2, 18X2, 19X2) |
| NSS | 1 | LQ01V00008R200 | REPAIR KIT PISTON SIDE (CONSISTS OF REF 16X1, 17X2, 18X2, 19X2) |
| NSS | 1 | LQ01V00004R400 | REPAIR KIT ROD SIDE (CONSISTS OF REF 6X1, 7X1, 8X1, 9X1, 10X1, 11X1) |
| 29 | 2 | ZW26X10000 | LOCK WASHER ID 10 x OD 18 x Th 2.5mm |
| 28 | 2 | ZS18C10035 | SCREW M10x1.50x35mm |
| 27 | 1 | 2438U1102S28 | U-BRACKET BAND |
| 26 | 1 | LQ01V00004S026 | BAND ASSY, BSN 26 |
| 25 | 4 | 2438U959S23 | RING WIPER |
| 24 | 2 | 2438U959S22 | BUSHING |
| 23 | 1 | 2436U330S16 | BALL |
| 22 | 1 | 2438U999S21 | SCREW Set -- M12x1.75mm |
| 21 | 1 | LQ01V00008S021 | NUT |
| 20 | 1 | 2438U959S18 | SHIM |
| 19 | 2 | 2438U1105S18 | RING SLIDE |
| 18 | 2 | LQ01V00008S018 | RING |
| 17 | 2 | LQ01V00004S017 | BACK-UP RING RING, BACK UP |
| 16 | 1 | 2438U1105S16 | RING ASSY. SEAL |
| 15 | 1 | LQ01V00004S015 | PISTON |
| 14 | 1 | LQ01V00008S014 | OIL SEAL CUSHION |
| 13 | 1 | LQ01V00004S013 | BEARING CUSHION |
| 12 | 12 | LQ01V00008S012 | SCREW |
| 11 | 1 | 2438U1105S12 | BACK-UP RING |
| 10 | 1 | ZD12G11500 | O-RING ID 114.40 ± 0.94 x OD 120mm |
| 9 | 1 | LP01V00008S009 | RING WIPER |
| 8 | 1 | 2438U959S8 | RING BACK-UP |
| 7 | 1 | 2438U959S7 | RING U |
| 6 | 1 | LQ01V00004S006 | RING BUFFER |
| 5 | 1 | 2438U959S5 | RING SNAP |
| 4 | 1 | 2438U1106S17 | BUSHING |
| 3 | 1 | LQ01V00008S003 | CYLINDER |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY ROD, PISTON |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY TUBE, CYLINDER |
| AR | LQ01V00008F1 | CYLINDER ASSY |
