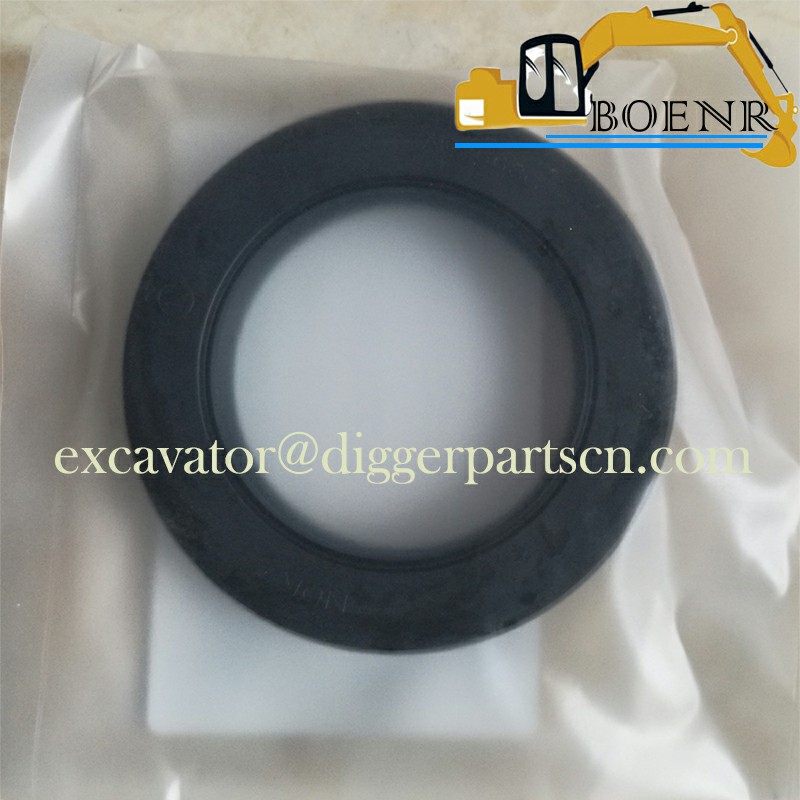

LC15V00022S491 Slewing Motor Oil Seal For SK350-8 SK295-8 SK350-9 SK330-8 SK380-8

SK350-8 SK295-8 SK350-9 SK330-8 SK380-8 Slewing Motor Oil Seal LC15V00022S491

Part Name	Oil Seal	Part Number	LC15V00022S491
Brand	Kobelco , kobeki	Applicable Model	SK350-8 SK295-8 SK350-9 SK330-8 SK380-8

Weight: 0.3KG

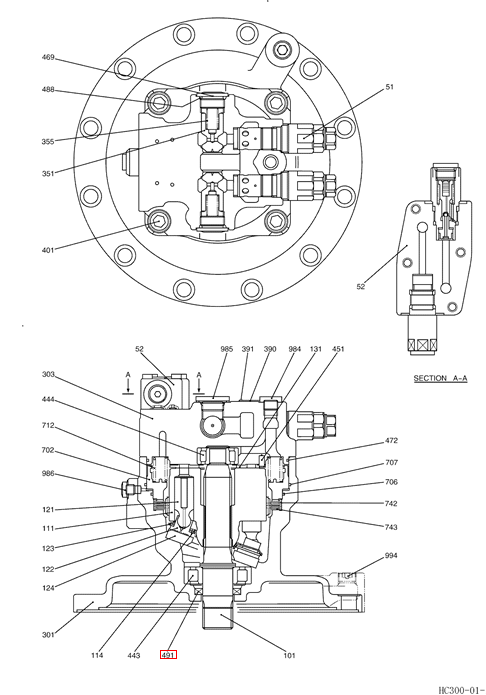

Image: Component Installation Diagram

Parts Catalog

ITEM	QTY	PART NUMBER	PART NAME
K	1	LV15V00002R200	REPAIR KIT CONSISTS OF ITEM 303X1, 451X2
K	1	LB15V00011R100	REPAIR KIT CONSISTS OF ITEM 121X9, 122X9
994	1	ZE82T12000	PLUG 3/4" PT
986	1	YN15V00035S980	PLUG
985	1	LQ15V00001S985	PLUG
984	1	LC15V00022S984	PLUG
743	4	LB15V00011S743	PLATE SEPARATOR
742	3	LB15V00011S742	PLATE FRICTION
712	14	LB15V00011S712	SPRING
707	1	2441U741S706	GASKET
706	1	2441U785S706	GASKET
702	1	LQ15V00001S015	PISTON
491	1	LC15V00022S491	GASKET OIL SEAL
488	2	ZD12P03400	O-RING ID 33.70 ± 0.33 x OD 40mm
472	1	LB15V00011S987	O-RING
469	2	LC15V00003S469	PLUG
451	2	NSS	NOT SERVICED SEPARATELY PIN
444	1	LB15V00011S444	BEARING ROLLER
443	1	LB15V00011S443	BEARING ROLLER
401	4	ZS23C20045	CAP Screw -- M20x2.5x45mm
391	2	2437U407S983	RIVET
390	1	YB15V00003S390	PLATE NAME PLATE
355	2	LC15V00003S355	SPRING
351	2	LC15V00003S351	PLUNGER
303	1	NSS	NOT SERVICED SEPARATELY CASE
301	1	LC15V00022S301	CASE
131	1	LB15V00011S131	PLATE
124	1	LB15V00011S124	PLATE SHOE
123	1	EZ15V00021S123	PLATE
122	9	NSS	NOT SERVICED SEPARATELY SHOE
121	9	NSS	NOT SERVICED SEPARATELY PISTON
114	1	EZ15V00021S114	SPRING
111	1	LB15V00011S111	CYLINDER
101	1	LB15V00011S101	SHAFT
52	1	YN20V00004F1	VALVE SEE(HC315)
51	2	YN22V00014FB	VALVE VALVE ASSY,RELIEF (SWING) SEE(HC325)
		LC15V00022F1	HYDRAULIC MOTOR
