LC15V00022R100 Swing Motor Seal kit For SK330-8 SK350-8 SK380-8 SK295-8
SK330-8 SK350-8 SK380-8 SK295-8 Swing Motor Seal kit LC15V00022R100
| Part Name | Seal kit | Part Number | LC15V00022R100 |
| Brand | Kobelco、Kobeki | Applicable Model | SK330-8 SK350-8 SK380-8 SK295-8 |
Weight:0.5KG

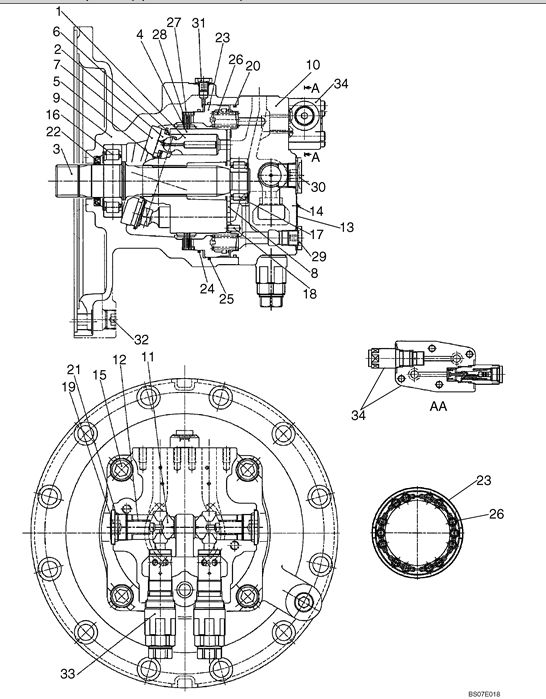

Parts Catalog
| ITEM | QTY | PART NO | PART NAME |
| K | 1 | LC15V00022R100 | KIT Repair, Incls. Refs. 20 - 22, 24 & 25 |
| K | 1 | LV15V00002R200 | REPAIR KIT Incls. Refs. 10 & 18 |
| K | 1 | LB15V00011R100 | REPAIR KIT Incls. Refs. 1 & 2 |
| 34 | 1 | YN20V00004F1 | VALVE Assembly, See Figure 08-04 |
| 33 | 2 | YN22V00014FB | VALVE Relief Valve Assembly -- See Figure 08-02 |
| 32 | 1 | ZE82T12000 | PLUG 3/4" PT |
| 31 | 1 | YN15V00035S980 | PLUG |
| 30 | 1 | LQ15V00001S985 | PLUG |
| 29 | 1 | LC15V00022S984 | PLUG |
| 28 | 4 | LB15V00011S743 | PLATE |
| 27 | 3 | LB15V00011S742 | PLATE |
| 26 | 14 | LB15V00011S712 | SPRING |
| 25 | 1 | 2441U741S706 | GASKET O-Ring |
| 24 | 1 | 2441U785S706 | GASKET O-Ring |
| 23 | 1 | LQ15V00001S015 | PISTON |
| 22 | 1 | LC15V00022S491 | GASKET Oil Seal |
| 21 | 2 | ZD12P03400 | O-RING ID 33.70 ± 0.33 x OD 40mm |
| 20 | 1 | LB15V00011S987 | O-RING |
| 19 | 2 | LC15V00003S469 | PLUG |
| 18 | 2 | NA | NOT SERVICED Pin |
| 17 | 1 | LB15V00011S444 | BEARING |
| 16 | 1 | LB15V00011S443 | BEARING |
| 15 | 4 | ZS23C20045 | CAP Screw -- M20x2.5x45mm |
| 14 | 2 | 2437U407S983 | RIVET |
| 13 | 1 | YB15V00003S390 | PLATE Plate |
| 12 | 2 | LC15V00003S355 | SPRING |
| 11 | 2 | LC15V00003S351 | PLUNGER |
| 10 | 1 | NA | NOT SERVICED Case |
| 9 | 1 | LC15V00022S301 | CASE |
| 8 | 1 | LB15V00011S131 | PLATE |
| 7 | 1 | LB15V00011S124 | PLATE |
| 6 | 1 | EZ15V00021S123 | PLATE |
| 5 | 1 | EZ15V00021S114 | SPRING |
| 4 | 1 | LB15V00011S111 | CYLINDER |
| 3 | 1 | LB15V00011S101 | SHAFT |
| 2 | 9 | NA | NOT SERVICED Shoe |
| 1 | 9 | NA | NOT SERVICED Piston |
| LC15V00022F1 | HYDRAULIC MOTOR Assembly (SWING) |
