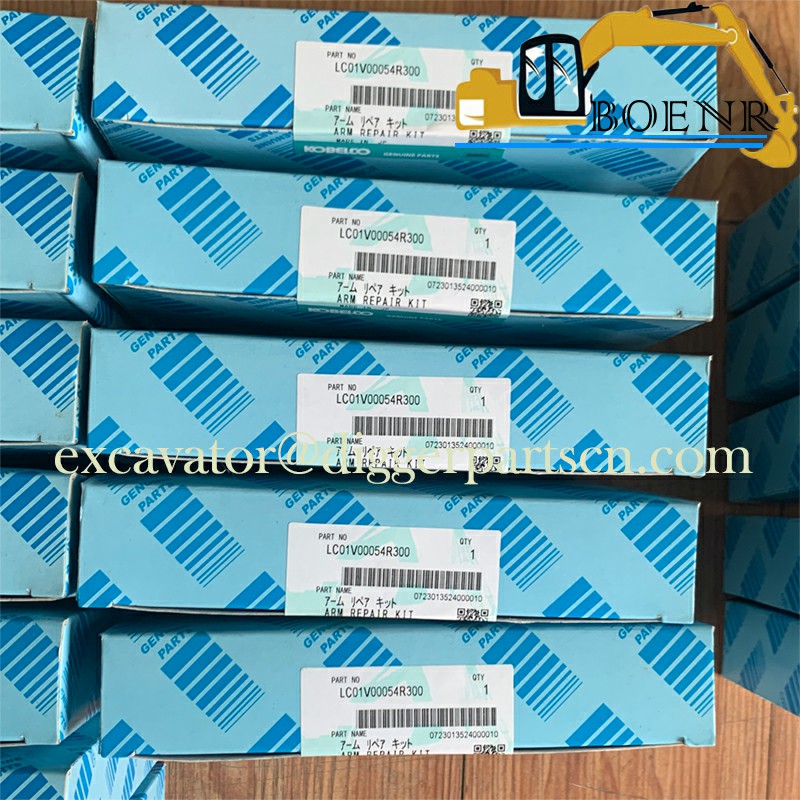

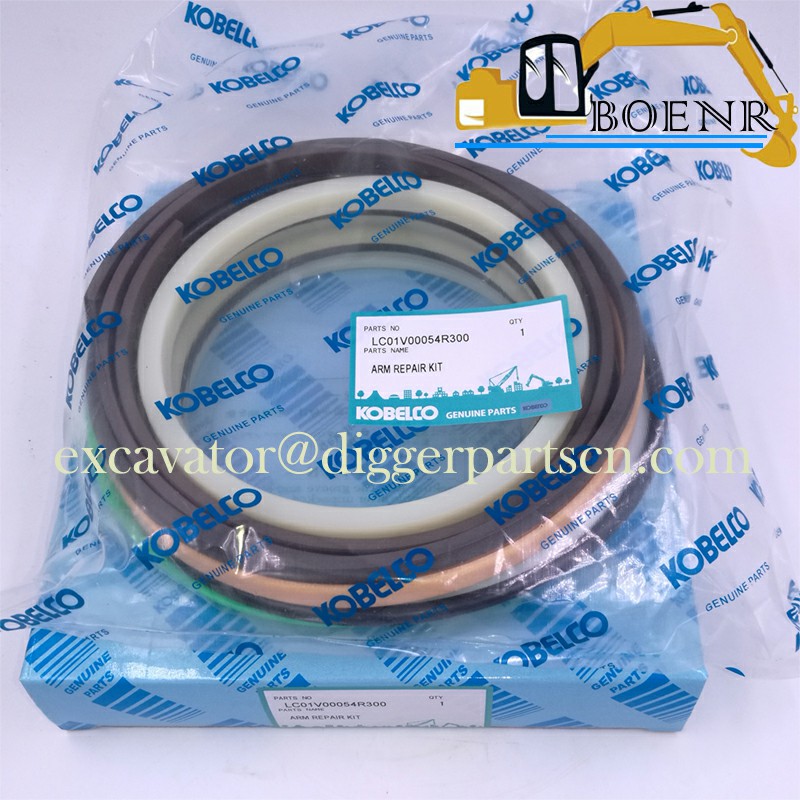

LC01V00054R300 Arm Cylinder Seal Kit For SK330-8 SK350-8 Sk380-8
SK330-8 SK350-8 Sk380-8 SK350-9 Arm Cylinder Seal Kit LC01V00054R300
| Part Name | Cylinder Seal Kit | Part Number | LC01V00054R300 LC01V00054R100 LC01V00054R200 LC01V00054R400 LC01V00054R500 |
| Brand | Kobelco, kobeki | Applicable Model | SK330-8 SK350-8 Sk380-8 SK350-9 |
Weight: 0.6KG

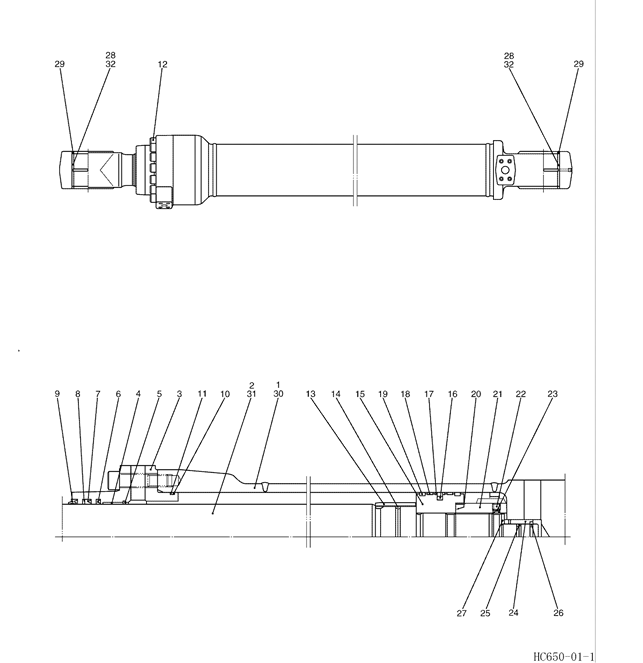

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | LC01V00054R500 | REPAIR KIT CONSISTS OF ITEM 2, 28X1, 29X2 |
| K | 1 | LC01V00054R400 | REPAIR KIT CONSISTS OF ITEM 1, 28X1, 29X2 |
| CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1,10X1, 11X1, 14X1, | |||
| K | 1 | LC01V00054R300 | REPAIR KIT ALL(ROD + PISTON) |
| CONSISTS OF ITEM 14X1, 16X1, 17X2,18X2, 19X2, 20X1,25X1 | |||
| K | 1 | LC01V00054R200 | REPAIR KIT PISTON SIDE |
| CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1, 10X1, 11X1 | |||
| K | 1 | LC01V00054R100 | REPAIR KIT ROD SIDE |
| 32 | 4 | 2438U1171S28 | BUSHING (F2 ONLY) |
| 31 | 1 | NSS | NOT SERVICED SEPARATELY ROD,PISTON (F2 ONLY) |
| 30 | 1 | NSS | NOT SERVICED SEPARATELY TUBE,CYLINDER (F2 ONLY) |
| 29 | 4 | 2438U1170S25 | RING |
| 28 | 2 | LC01V01029P1 | BUSHING (F1 ONLY) |
| 27 | 1 | 2438U1171S27 | LOCKING RING |
| 26 | 2 | 2438U1137S26 | STOP |
| 25 | 1 | LC01V00005S025 | SEAL |
| 24 | 1 | LC01V00054S024 | BEARING CUSHION |
| 23 | 1 | 2436U330S27 | BALL |
| 22 | 1 | 2438U1171S22 | SCREW |
| 21 | 1 | LC01V00054S021 | NUT |
| 20 | 1 | LC01V00005S020 | SHIM |
| 19 | 2 | 2438U1171S19 | RING |
| 18 | 2 | LC01V00054S018 | RING SLIDE |
| 17 | 2 | 2438U1171S17 | BACK-UP RING |
| 16 | 1 | 2438U1171S16 | SEAL RETAINER |
| 15 | 1 | LC01V00054S015 | PISTON |
| 14 | 1 | LC01V00054S014 | SEAL CUSHION |
| 13 | 1 | LC01V00054S013 | BEARING CUSHION |
| 12 | 12 | LC01V00005S012 | SCREW CAP |
| 11 | 1 | 2438U1171S11 | BACK-UP RING |
| 10 | 1 | ZD12G16000 | O-RING 160mm ID x 170mm OD |
| 9 | 1 | 2438U1171S34 | GASKET |
| 8 | 1 | LS01V00020S008 | RING BACK-UP |
| 7 | 1 | LC01V00054S007 | RING U |
| 6 | 1 | LC01V00054S006 | RING BUFFER |
| 5 | 1 | 2438U1171S5 | LOCKING RING |
| 4 | 1 | 2438U1171S4 | BUSHING |
| 3 | 1 | LS01V00020S003 | CYLINDER HEAD CYLINDER HEAD |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY ROD,PISTON (F1 ONLY) |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY TUBE,CYLINDER (F1 ONLY) |
| LC01V00054F2 | CYLINDER Assembly | ||
| LC01V00054F1 | CYLINDER Assembly |
