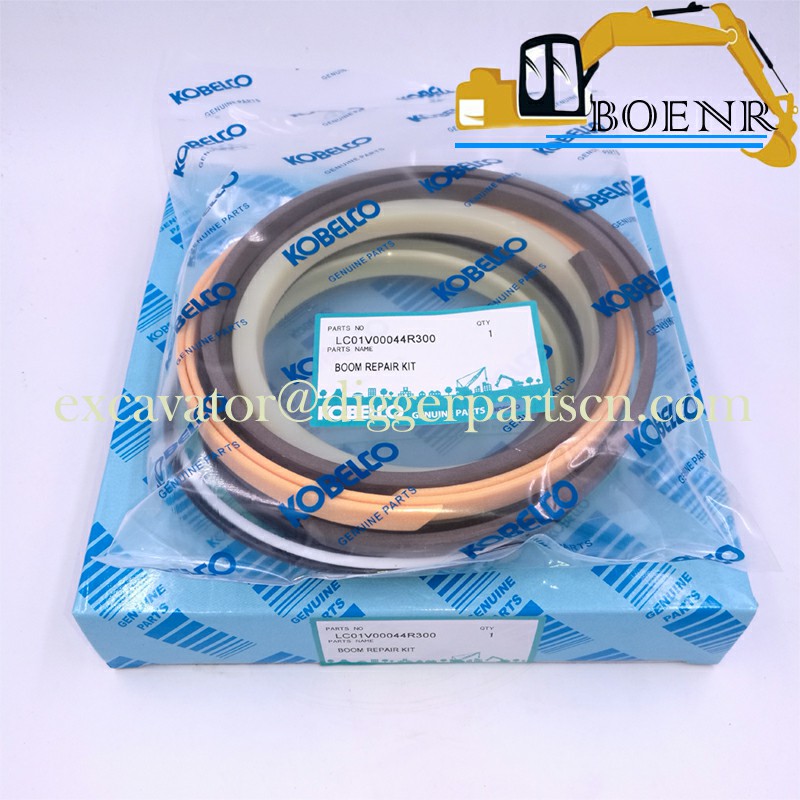

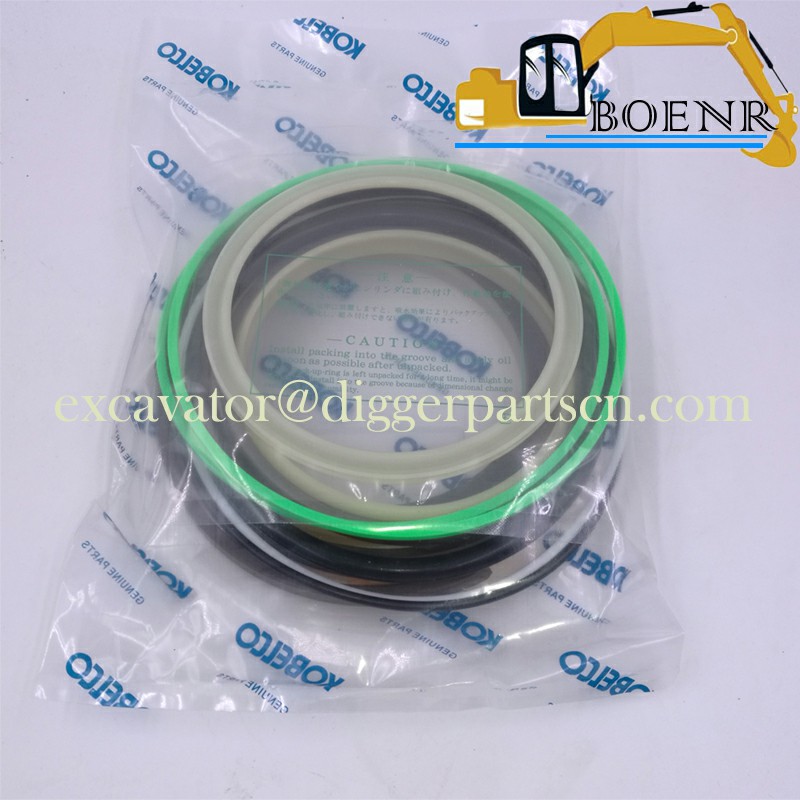

LC01V00044R300 Boom Cylinder Seal Repair Kit For SK330-8 SK350-8 SK350-9 SK380-8
SK330-8 SK350-8 SK350-9 SK380-8 Cylinder Seal Repair Kit LC01V00044R300
| Part Name | Cylinder Seal Repair Kit | Part Number | LC01V00044R300 |
| Brand | Kobelco、Kobeki | Applicable Model | SK330-8 SK350-8 SK350-9 SK380-8 |
Weight:0.6KG

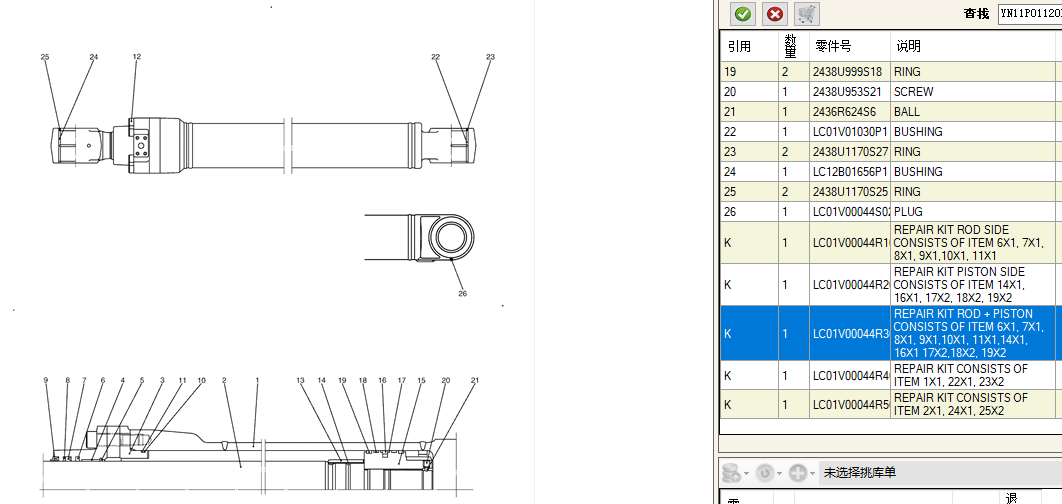

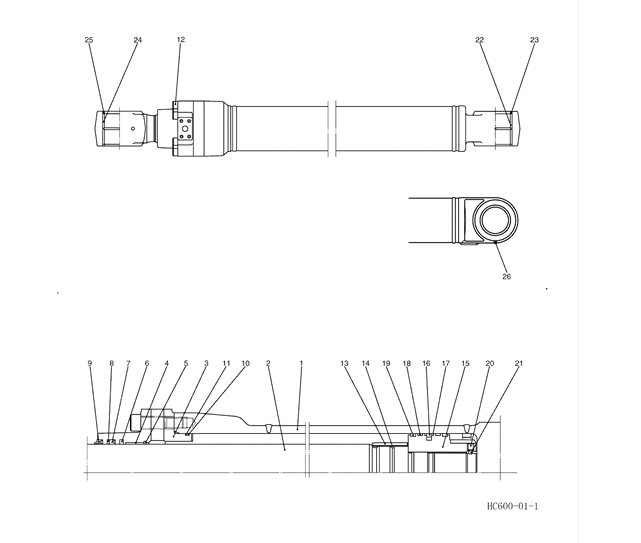

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | LC01V00044R500 | REPAIR KIT CONSISTS OF ITEM 2X1, 24X1, 25X2 |
| K | 1 | LC01V00044R400 | REPAIR KIT CONSISTS OF ITEM 1X1, 22X1, 23X2 |
| K | 1 | LC01V00044R300 | REPAIR KIT ROD + PISTON CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1,10X1, 11X1,14X1, 16X1 17X2,18X2, 19X2 |
| K | 1 | LC01V00044R200 | REPAIR KIT PISTON SIDE CONSISTS OF ITEM 14X1, 16X1, 17X2, 18X2, 19X2 |
| K | 1 | LC01V00044R100 | REPAIR KIT ROD SIDE CONSISTS OF ITEM 6X1, 7X1, 8X1, 9X1,10X1, 11X1 |
| 26 | 1 | LC01V00044S026 | PLUG |
| 25 | 2 | 2438U1170S25 | RING |
| 24 | 1 | LC12B01656P1 | BUSHING |
| 23 | 2 | 2438U1170S27 | RING |
| 22 | 1 | LC01V01030P1 | BUSHING |
| 21 | 1 | 2436R624S6 | BALL |
| 20 | 1 | 2438U953S21 | SCREW |
| 19 | 2 | 2438U999S18 | RING |
| 18 | 2 | LC01V00044S018 | RING SLIDE |
| 17 | 2 | LQ01V00003S017 | RING |
| 16 | 1 | 2438U999S16 | RING |
| 15 | 1 | LC01V00044S015 | PISTON |
| 14 | 1 | LQ01V00007S034 | SEAL |
| 13 | 1 | LC01V00044S013 | BEARING CUSHION |
| 12 | 12 | ZS23C18080 | SCREW M18x2.50x80mm |
| 11 | 1 | 2438U1753S16 | RING |
| 10 | 1 | ZD12G13500 | O-RING ID 134.40 ± 1.08 x OD 140mm |
| 9 | 1 | 2438U1172S37 | SCRAPER RING |
| 8 | 1 | LQ01V00007S008 | RING |
| 7 | 1 | LC01V00044S007 | RING U-RING |
| 6 | 1 | LC01V00044S006 | RING BUFFER |
| 5 | 1 | 2438U1324S5 | SNAP RING |
| 4 | 1 | 2438U1104S4 | BUSHING |
| 3 | 1 | LQ01V00012S003 | BASE PLATE CYLINDER HEAD |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY ROD,PISTON |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY TUBE,CYLINDER |
| LC01V00044F1 | CYLINDER Assembly |
(SK350-8) - ACERA MARK 8 EXCAVATOR - TIER 3 ASN YC08U
SK350-9) - ACERA MARK 9 EXCAVATOR TIER 4 (NA) ASN YC12U2401
(SK350-9) - HYDRAULIC EXCAVATOR - TIER 3 (NRC) (LA) ASN YC13U3001
