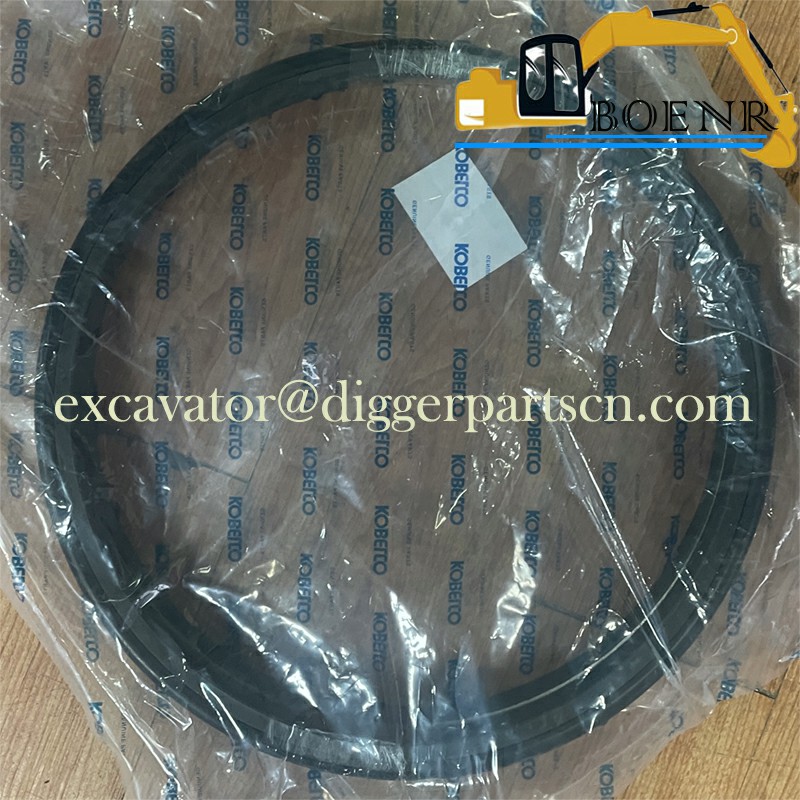

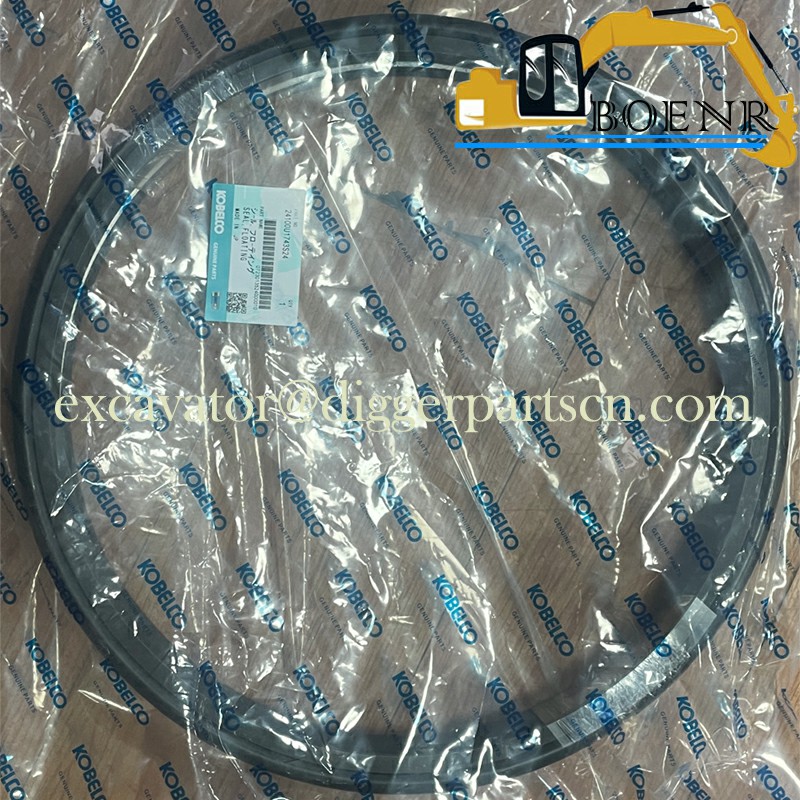

24100U1743S24 Floating Seal For SK330-6E SK330-8 SK350-8 SK350-9 SK485-8 SK485LC-9
SK330-6E SK330-8 SK350-8 SK350-9 SK485-8 SK485LC-9 Floating Seal 24100U1743S24
| Part Name | Floating Seal | Part Number | 24100U1743S24 |
| Brand | Kobelco、Kobeki | Applicable Model | SK330-6E SK330-8 SK350-8 SK350-9 SK485-8 SK485LC-9 |
Weight: 3.5KG

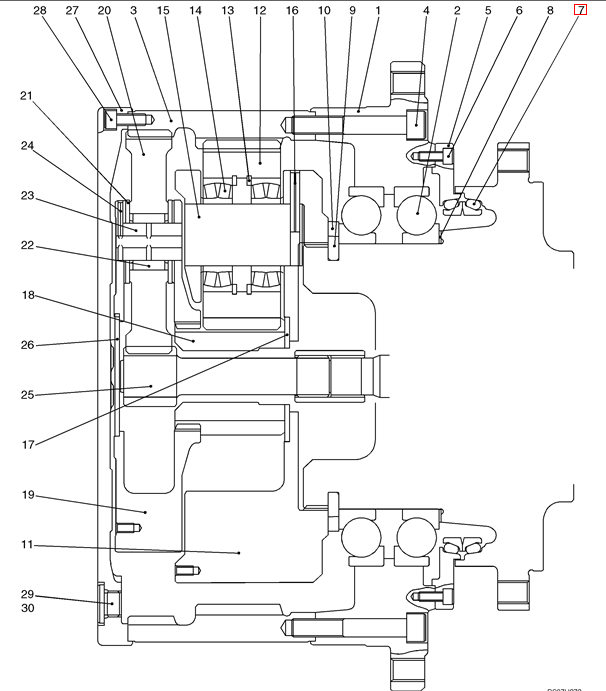

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 30 | 2 | ZD12P02400 | O-RING ID 23.70 ± 0.24 x OD 30mm |
| 29 | 2 | YR30V00001S116 | PLUG |
| 28 | 25 | ZS23C12030 | SCREW M12x1.75x30mm |
| 27 | 1 | LS53D00007S027 | COVER Cover |
| 26 | 1 | LQ15V00005S008 | PLATE Thrust |
| 25 | 1 | LS53D00007S025 | SUN GEAR Gear, Sun |
| 24 | 3 | ZP26D06036 | PIN Roll -- OD 06 x 36mm Long |
| 23 | 3 | LC53D00007S003 | PIN |
| 22 | 3 | LS53D00007S022 | NEEDLE BEARING Bearing, Needle |
| 21 | 6 | LS53D00003S005 | PLATE Washer, Thrust |
| 20 | 3 | LS53D00003S006 | GEAR Gear, Planetary |
| 19 | 1 | LS53D00003S002 | SPIDER Carrier |
| 18 | 1 | 24100U1743S10 | SUN GEAR |
| 17 | 1 | LS53D00007S017 | SPACER Spacer |
| 16 | 3 | ZP26D10063 | ROLL PIN OD 10 x 63mm Long |
| 15 | 3 | LS53D00003S012 | PIN Carrier |
| 14 | 6 | LS53D00007S014 | BEARING Bearing |
| 13 | 6 | ZR26X12000 | LOCKING RING Retaining -- ID 124 x OD 127 x Th 4.0mm |
| 12 | 3 | 24100U1743S14 | PINION |
| 11 | 1 | LS53D00007S011 | SPIDER Carrier |
| 10 | 1 | LS53D00007S010 | SUPPORT Ring |
| 9 | 2 | LS53D00007S009 | LOCK WASHER Lock Washer |
| 8 | 1 | LS53D00007S008 | SHIM Shim |
| 7 | 1 | 24100U1743S24 | GASKET |
| 6 | 16 | ZS23C10025 | SCREW M10x1.50x25mm |
| 5 | 1 | LS53D00007S005 | COVER Cover, Seal |
| 4 | 26 | ZS23C20120 | SCREW M20x2.5x120mm |
| 3 | 1 | LS53D00007S003 | RING GEAR Gear, Ring |
| 2 | 1 | LS53D00007S002 | BEARING Bearing |
| 1 | 1 | LS53D00007S001 | HOUSING Housing |
| 1 | LS53D00007F1 | REDUCER Propel Reduction Assembly |
