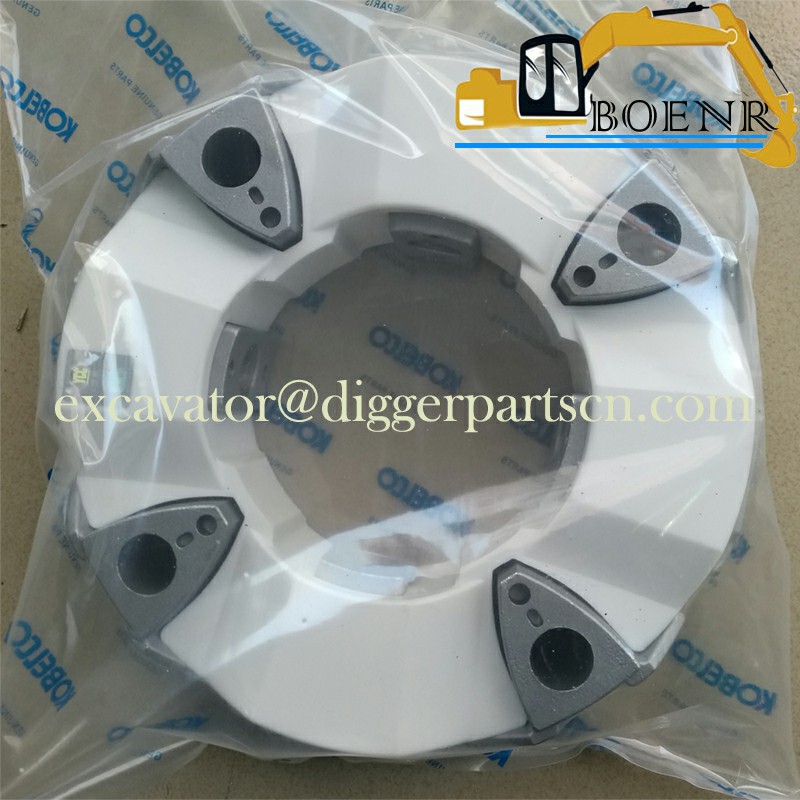

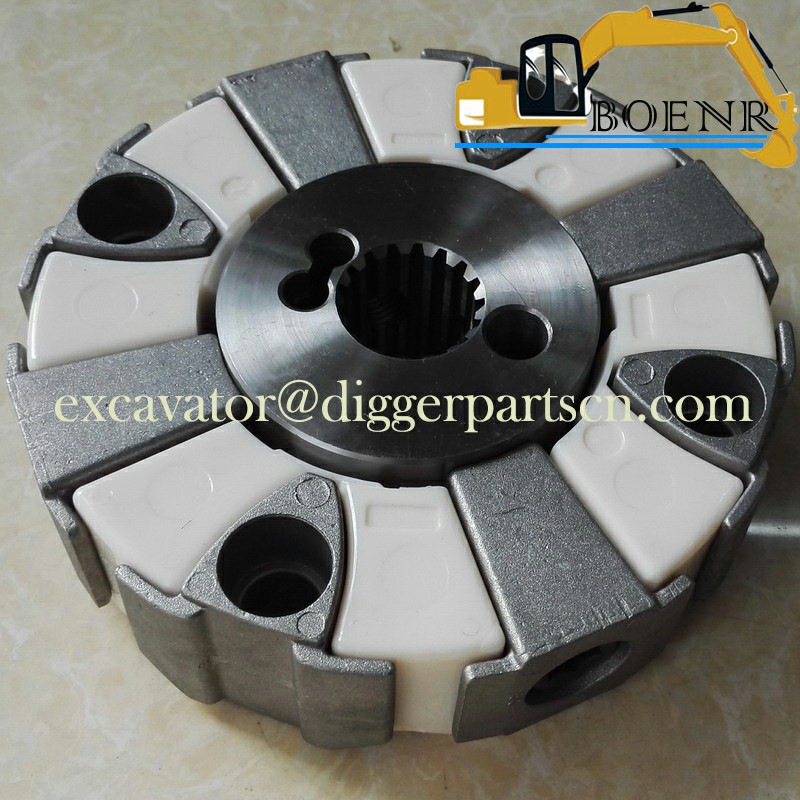

YN30P01023F1 YN30P01009F1 LQ30P01003S001 YN30P01028F1 Coupling Assy For SK200-8 SK210-8 SK235SR
SK200-8 SK210-8 SK235SR SK210-9 Coupling Assy YN30P01023F1 YN30P01009F1 LQ30P01003S001 YN30P01028F1
| Part Name | Coupling | Part Number | YN30P01023F1 YN30P01009F1 LQ30P01003S001 YN30P01028F1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-8 SK210-8 SK235SR SK210-9 |
Weight: 5.5 kg

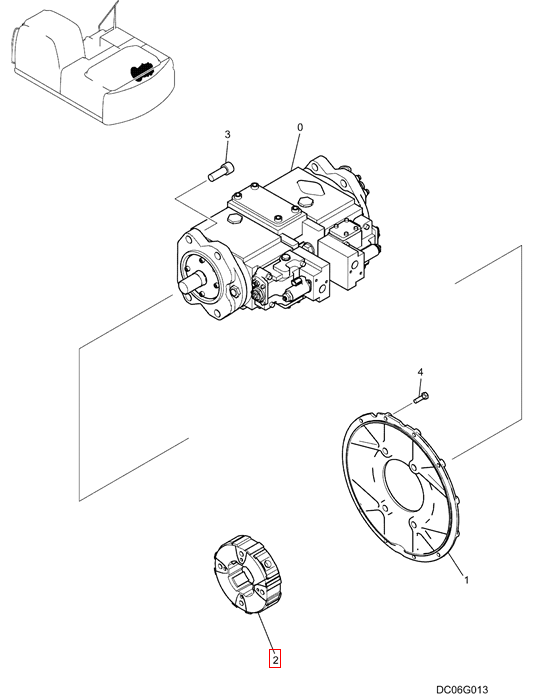

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 5 | 3 | ZM73C10045 | BOLT M10x1.50x45mm (Incls. Washer), USED TO ATTACH MUFFLER BRACKET |
| 4 | 5 | ZS18C10035 | SCREW M10x1.50x35mm |
| 3 | 4 | ZS28C20055 | CAP M20x2.5x55mm |
| 2 | 1 | YN30P01023F1 | UNIVERSAL JOINT COUPLING ASSY |
| 1 | 1 | YN30P01029P1 | BRACKET |
| 1 | YN10V00036F3 | HYDRAULIC PUMP Assy | |
| 1 | YN10V00036F2 | HYDRAULIC PUMP ASSY |
