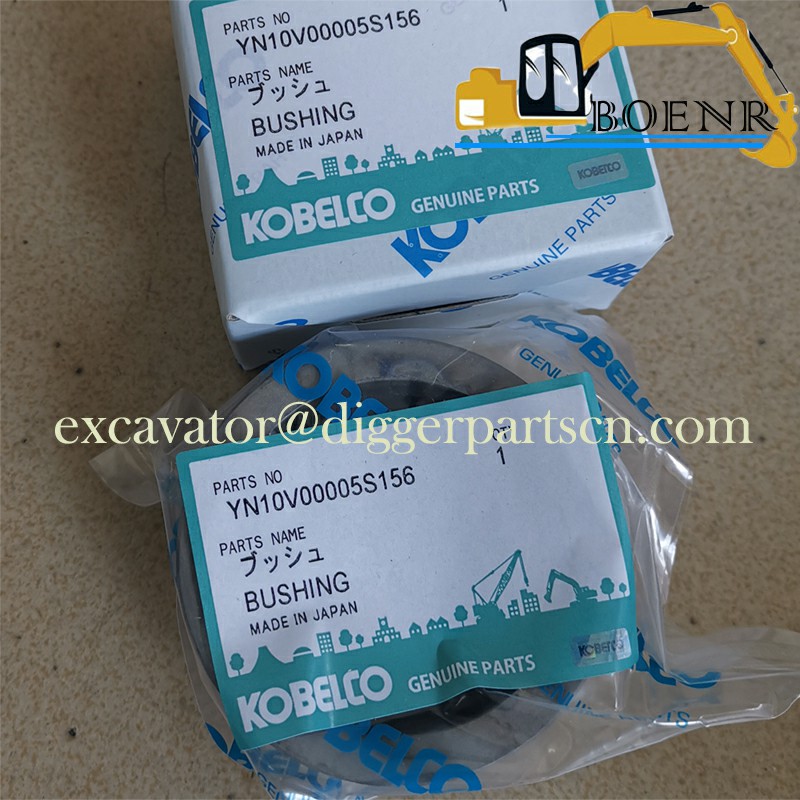

YN10V00005S156 K3V112 K5V140 Hydraulic Pump Bushing For SK200-8 SK200-6 SK200-6E SK210-8 SK210-9
SK200-8 SK200-6 SK200-6E SK210-8 SK210-9 SK260-9 SK290-6E SK295-8 SK295-9 SK350-8 K3V112 K5V140 Hydraulic Pump Bushing YN10V00005S156
| Part Name | Bushing | Part Number | YN10V00005S156 |
| Brand | Kobeki、Kobelco、KPM | Applicable Model | SK200-8 SK200-6 SK200-6E SK210-8 SK210-9 SK260-9 SK290-6E SK295-8 SK295-9 SK350-8 |
Weight:0.5KG

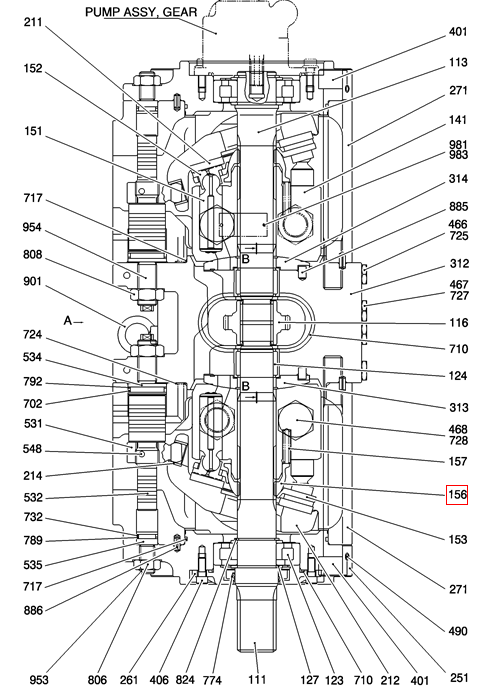

| ITEM | QTY | PARTS NO. | PART NAME |
| 1 | 2437U213S530 | REPAIR KIT Repair Kit Consists Of Ref. 531x1, 548x1 | |
| 1 | 2437U213S30 | REPAIR KIT Repair Kit Consists Of Ref. 212x1, 214x1 | |
| 1 | YN10V00043R200 | REPAIR KIT Repair Kit Consists Of Ref. 141x1, 314x1 | |
| 1 | YN10V00043R100 | REPAIR KIT Repair Kit Consists Of Ref. 141x1, 313x1 | |
| 1 | YN10V00003S011 | PISTON ASSY Repair Kit Consists Of Ref. 151x9, 152x9 | |
| 983 | 2 | 2437U407S983 | RIVET Pin |
| 981 | 1 | YB15V00003S390 | PLATE |
| 954 | 2 | 2437U213S954 | SCREW Setscrew |
| 953 | 2 | 2437U188S953 | CAP Setscrew |
| 901 | 2 | ZS91C01000 | BOLT Eye |
| 886 | 4 | ZP26D06014 | PIN Spring |
| 885 | 2 | 2441U723S885 | PIN |
| 824 | 2 | ZR16X04000 | RING Retaining |
| 808 | 2 | ZN18C20012 | NUT |
| 806 | 2 | ZN18C16010 | NUT |
| 792 | 2 | ZD85G03500 | RING Back Up |
| 789 | 2 | ZD85P01800 | RING Back Up |
| 774 | 1 | YN10V00032S775 | OIL SEAL |
| 732 | 2 | YT10V00003S708 | O-RING |
| 728 | 4 | YN10V00020S015 | O-RING |
| 727 | 3 | YN10V01001S727 | GASKET O-Ring |
| 725 | 9 | YT10V00003S710 | O-RING |
| 724 | 16 | YX10V00003S015 | O-RING |
| 717 | 4 | YN10V00020S012 | O-RING |
| 710 | 2 | YX10V00003S012 | O-RING |
| 702 | 2 | YN10V00003S702 | GASKET O-ring |
| 548 | 2 | NSS | NOT SERVICED SEPARATELY Pin, Feedback |
| 546 | 2 | YN10V00043S546 | SPACER |
| 535 | 2 | 2437U213S535 | STOP Stopper |
| 534 | 2 | 2437U213S534 | STOP Stopper |
| 532 | 2 | 2437U213S532 | PISTON |
| 531 | 2 | NSS | NOT SERVICED SEPARATELY Pin |
| 490 | 32 | 2441U722S490 | PLUG |
| 468 | 4 | 2441U436S469 | PLUG |
| 467 | 2 | 2441U549S464 | PLUG |
| 466 | 2 | 2441U667S466 | PLUG |
| 407 | 3 | ZS23C06055 | SCREW Cap |
| 406 | 4 | ZS23C08020 | SCREW Cap |
| 401 | 8 | 2437U213S401 | SCREW Cap |
| 325 | 1 | YN10V00043S325 | COVER |
| 314 | 1 | NSS | NOT SERVICED SEPARATELY Plate, Valve |
| 313 | 1 | NSS | NOT SERVICED SEPARATELY Plate, Valve |
| 312 | 1 | LC10V00010S312 | BLOCK Valve |
| 271 | 2 | YN10V00043S271 | BOX Case |
| 261 | 1 | 2437U420S261 | COVER Seal |
| 251 | 2 | 2437U213S251 | PLATE Support |
| 214 | 2 | NSS | NOT SERVICED SEPARATELY Bushing |
| 212 | 2 | NSS | NOT SERVICED SEPARATELY Plate |
| 211 | 2 | 2441U242S211 | PLATE Shoe |
| 157 | 18 | 2437U213S157 | SPRING |
| 156 | 2 | YN10V00005S156 | BUSHING |
| 153 | 2 | 2437U213S153 | PLATE |
| 152 | 18 | NSS | NOT SERVICED SEPARATELY Shoe |
| 151 | 18 | NSS | NOT SERVICED SEPARATELY Piston |
| 141 | 2 | NSS | NOT SERVICED SEPARATELY Block, Cylinder |
| 127 | 4 | 2441U723S127 | SPACER |
| 124 | 2 | YN10V00011S124 | NEEDLE BEARING Needle |
| 123 | 2 | LC10V00002S123 | BEARING Roller |
| 116 | 1 | YN10V00020S116 | GEAR |
| 113 | 1 | YN10V00013S113 | SHAFT |
| 111 | 1 | YN10V00043S111 | SHAFT |
| AR | YN10V00043F1 | HYDRAULIC PUMP Assy |
