LQ15V00004S014 M3V150 Final drive motor cylinder block plunger for SK220-3 SK220-5 SK250-6E
SK220-3 SK220-5 SK250-6E M3V150 Final drive motor cylinder block plunger LQ15V00004S014
| Part Name | plunger | Part Number | LQ15V00004S014 |
| Brand | Kobelco Kobeki | Applicable Model | SK220-3 SK220-5 SK250-6E |
Weight: 0.4 kg

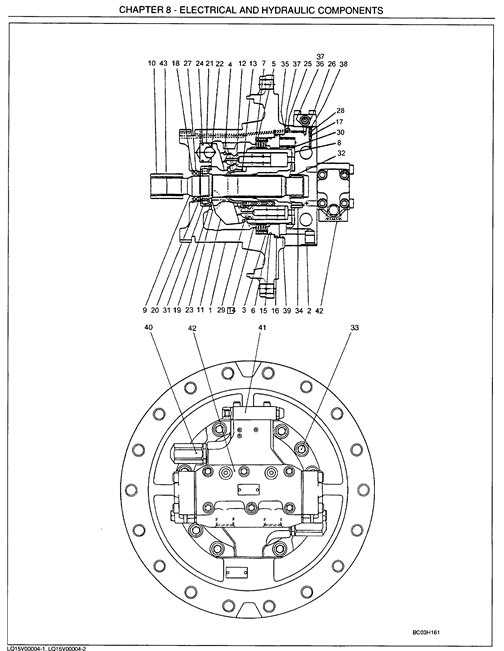

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 43 | 1 | ZR26X03200 | SNAP RING Retaining -- ID 32 x OD 34.4 x Th 1.2mm |
| 42 | 1 | YN23V00001F1 | BRAKE VALVE COUNTER |
| 41 | 1 | 2436R874F1 | VALVE PILOT |
| 40 | 2 | 2436R866F1 | PILOT VALVE OVERLOAD |
| 39 | 1 | YN15V00003S039 | O-RING |
| 38 | 3 | ZD12P00900 | O-RING ID 08.80 ± 0.17 x OD 12mm |
| 37 | 2 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 36 | 3 | ZD12P00600 | O-RING ID 05.80 ± 0.15 x OD 09mm |
| 35 | 1 | LQ15V00004S035 | O-RING |
| 34 | 1 | ZP26D10022 | PIN |
| 33 | 8 | ZS23C16045 | CAP Screw -- M16x2.0x45mm |
| 32 | 1 | LQ15V00004S032 | NEEDLE BEARING |
| 31 | 1 | GB15V00003S029 | BEARING |
| 30 | 11 | YN15V00003S030 | SPRING |
| 29 | 9 | LQ15V00004S029 | SPRING |
| 28 | 3 | 2441U783S30 | SPRING |
| 27 | 1 | YN15V00003S027 | GASKET OIL SEAL |
| 26 | 1 | 2436U812S4 | |
| 25 | 1 | 2436U1123S14 | ORIFICE |
| 24 | 1 | YN15V00003S024 | SEAL PISTON |
| 23 | 2 | LQ15V00004S023 | PLATE |
| 22 | 1 | LQ15V00004S022 | BALL |
| 21 | 1 | LQ15V00004S021 | PISTON PISTON |
| 20 | 1 | ZR16X04000 | RING Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 19 | 1 | ZR26X08000 | SNAP RING Retaining -- ID 80 x OD 85.5 x Th 2.5mm |
| 18 | 1 | ZR26X06200 | SNAP RING |
| 17 | 3 | 2441U783S20 | VALVE CHECK |
| 16 | 1 | YN15V00003S016 | O-RING |
| 15 | 1 | YN15V00003S015 | O-RING |
| 14 | 9 | LQ15V00004S014 | PISTON ASSY |
| 13 | 1 | YN15V00003S013 | SPRING |
| 12 | 1 | LQ15V00004S012 | BALL JOINT |
| 11 | 1 | LQ15V00004S011 | PLATE |
| 10 | 1 | YN15V00003S010 | COUPLING |
| 9 | 1 | LQ15V00004S009 | SHAFT |
| 8 | 1 | LQ15V00004S008 | PLATE |
| 7 | 5 | 2441U783S7 | STEP PLATE SEPARATE |
| 6 | 1 | YN15V00003S006 | PISTON |
| 5 | 4 | LQ15V00004S005 | PLATE |
| 4 | 1 | LQ15V00004S004 | SHOE |
| 3 | 1 | LQ15V00004S003 | CYLINDER |
| 2 | 1 | LQ15V00004S002 | COVER |
| 1 | 1 | LQ15V00004S001 | CASE |
| 1 | LQ15V00004F1 | HYDRAULIC MOTOR ASSY |
