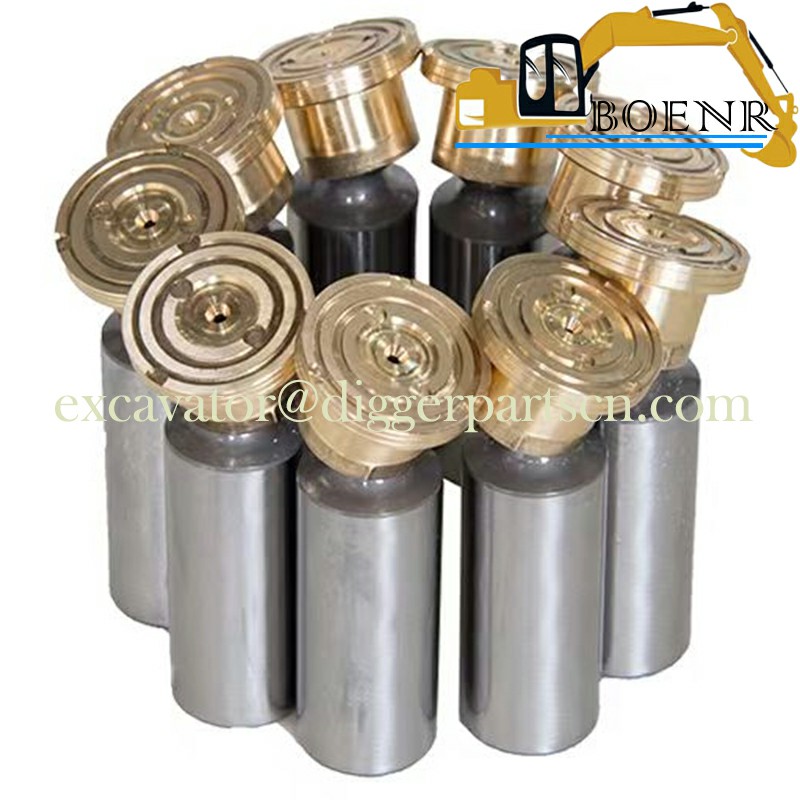

LQ10V00021R100 K3V112 Hydraulic Pump Plunger For SK170-9 SK235SR SK200-8 SK210-8 SK250-8 SK260-8
SK170-9 SK235SR SK200-8 SK210-8 SK250-8 SK260-8 K3V112 Hydraulic Pump Plunger LQ10V00021R100
| Part Name | Plunger | Part Number | LQ10V00021R100 |
| Brand | Kobelco、Kobeki | Applicable Model | SK170-9 SK235SR SK200-8 SK210-8 SK250-8 SK260-8 K |
Weight: 0.3KG

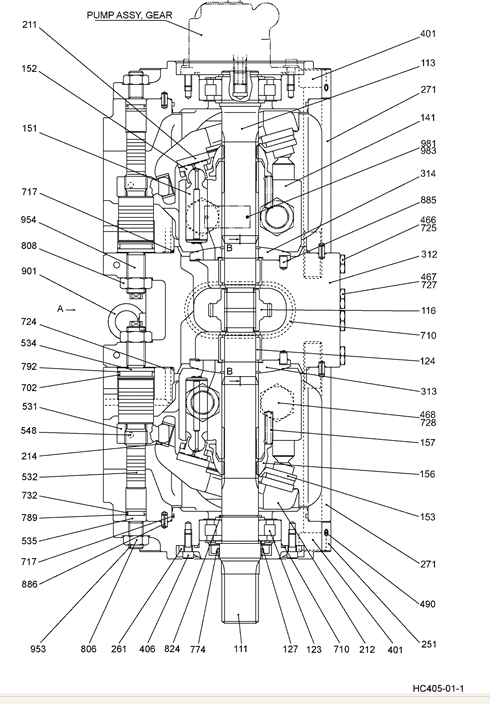

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| K | 1 | 2437U213S530 | REPAIR KIT Contains Items 531 & 548 |
| K | 1 | 2437U213S30 | REPAIR KIT Contains Items 212 & 214 |
| K | 1 | YN10V00043R200 | REPAIR KIT Contains Items 141 & 314 |
| K | 1 | YN10V00043R100 | REPAIR KIT Contains Items 141 & 313 |
| K | 1 | LQ10V00021R100 | PISTON & RINGS KIT Repair, Contains Items 151 & 152 |
| 983 | 2 | 2437U407S983 | RIVET |
| 981 | 1 | NA | NOT SERVICED Name Plate |
| 954 | 2 | 2437U213S954 | SCREW |
| 953 | 2 | 2437U188S953 | CAP |
| 901 | 2 | ZS91C01000 | BOLT Eye -- M10x1.50x18mm |
| 886 | 4 | ZP26D06014 | PIN Roll -- OD 06 x 14mm Long |
| 885 | 2 | 2441U723S885 | PIN |
| 824 | 2 | ZR16X04000 | RING Retaining -- ID 37 x OD 40 x Th 1.8mm |
| 808 | 2 | ZN18C20012 | NUT M20x2.5mm |
| 806 | 2 | ZN18C16010 | NUT M16x2.0mm |
| 792 | 2 | ZD85G03500 | RING Back-Up -- ID 35 x OD 40 x Th 1.25mm |
| 789 | 2 | ZD85P01800 | RING Back-Up -- ID 18 x OD 22 x Th 1.25mm |
| 774 | 1 | YN10V00032S775 | OIL SEAL |
| 732 | 2 | YT10V00003S708 | O-RING |
| 728 | 4 | YN10V00020S015 | O-RING |
| 727 | 3 | YN10V01001S727 | GASKET |
| 725 | 9 | YT10V00003S710 | O-RING |
| 724 | 16 | YX10V00003S015 | O-RING |
| 717 | 4 | YN10V00020S012 | O-RING |
| 710 | 2 | YX10V00003S012 | O-RING |
| 702 | 2 | YN10V00003S702 | GASKET |
| 548 | 2 | NA | NOT SERVICED Pin, Feedback |
| 546 | 2 | YN10V00043S546 | SPACER |
| 535 | 2 | 2437U213S535 | STOP |
| 534 | 2 | LQ10V00021S534 | STOP |
| 532 | 2 | LC10V00010S532 | PISTON |
| 531 | 2 | NA | NOT SERVICED Pin |
| 490 | 32 | 2441U722S490 | PLUG 1/16" NPTF |
| 468 | 4 | 2441U436S469 | PLUG |
| 467 | 2 | 2441U549S464 | PLUG |
| 466 | 2 | 2441U667S466 | PLUG 1/4" PF |
| 407 | 3 | ZS23C06055 | SCREW M06x1.0x55mm |
| 406 | 4 | ZS23C08020 | SCREW M08x1.25x20mm |
| 401 | 8 | 2437U213S401 | SCREW |
| 325 | 1 | YN10V00043S325 | COVER |
| 314 | 1 | NA | NOT SERVICED Plate, Valve |
| 313 | 1 | NA | NOT SERVICED Plate, Valve |
| 312 | 1 | LC10V00010S312 | BLOCK Valve |
| 271 | 2 | YN10V00043S271 | BOX Case |
| 261 | 1 | 2437U420S261 | COVER |
| 251 | 2 | 2437U213S251 | PLATE |
| 214 | 2 | NA | NOT SERVICED Bushing |
| 212 | 2 | NA | NOT SERVICED Plate |
| 211 | 2 | 2441U242S211 | PLATE |
| 157 | 18 | 2437U213S157 | SPRING |
| 156 | 2 | YN10V00005S156 | BUSHING |
| 153 | 2 | LC10V00010S153 | PLATE Set |
| 152 | 18 | NA | NOT SERVICED Shoe |
| 151 | 18 | NA | NOT SERVICED Piston |
| 141 | 2 | NA | NOT SERVICED Block, Cylinder |
| 127 | 4 | 2441U723S127 | SPACER |
| 124 | 2 | YN10V00011S124 | NEEDLE BEARING |
| 123 | 2 | LC10V00002S123 | BEARING |
| 116 | 1 | YN10V00020S116 | GEAR |
| 113 | 1 | YN10V00013S113 | SHAFT |
| 111 | 1 | YN10V00043S111 | SHAFT |
| LQ10V00021F1 | HYDRAULIC PUMP Assembly, Page 1 of 2 |
