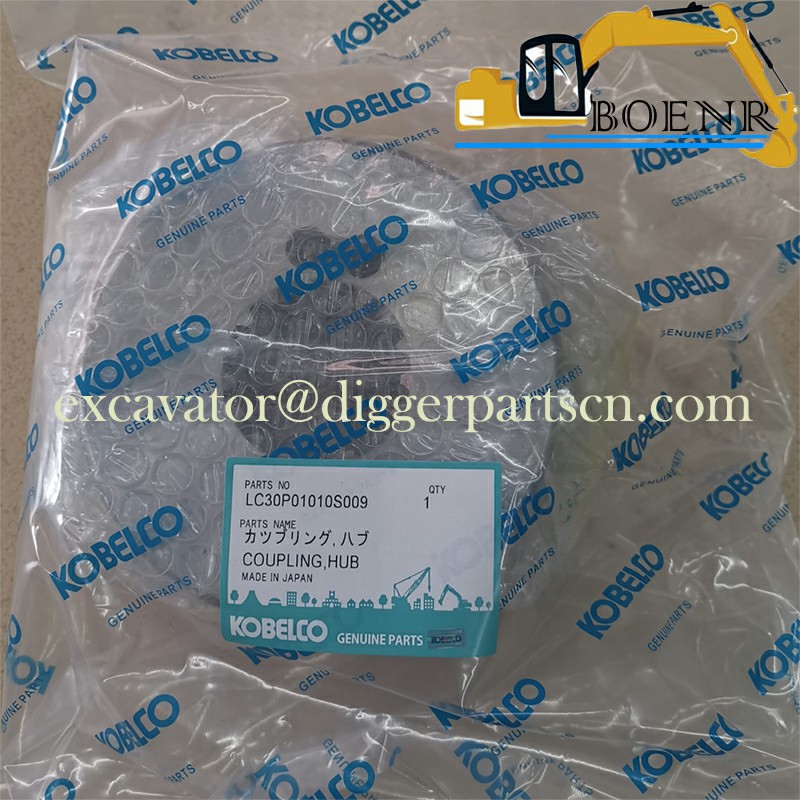

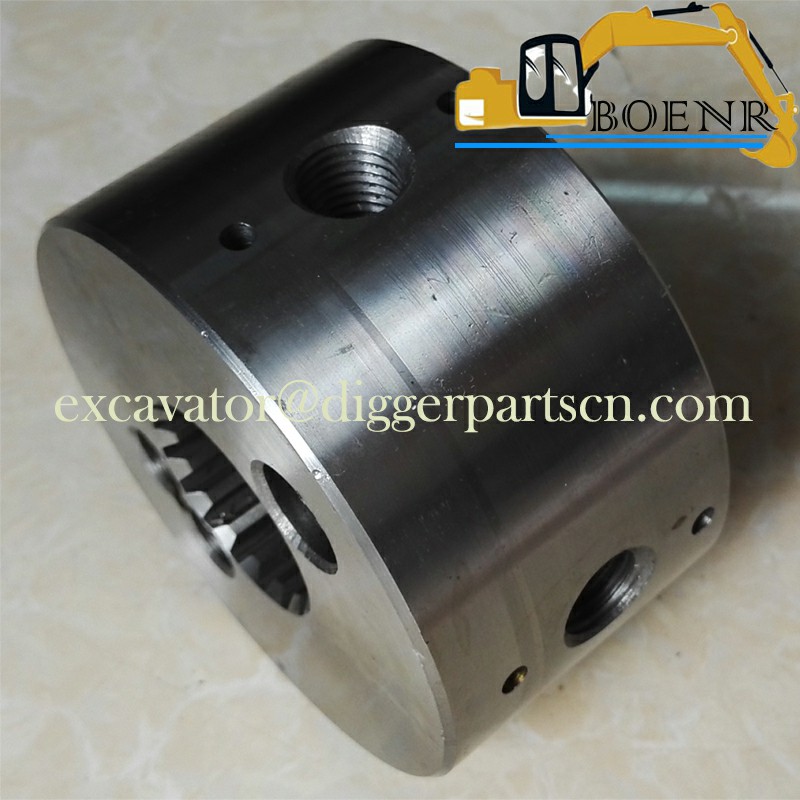

Lc30P01010S009 Coupling Hub For SK350-8 SK350-9 SK330-8 SK380-8
SK350-8 SK350-9 SK330-8 SK380-8 Coupling Hub Lc30P01010S009
| Part Name | Coupling Hub | Part Number | Lc30P01010S009 |
| Brand | Kobelco Kobeki | Applicable Model | SK350-8 SK350-9 SK330-8 SK380-8 |
Weight: 4.5 kg

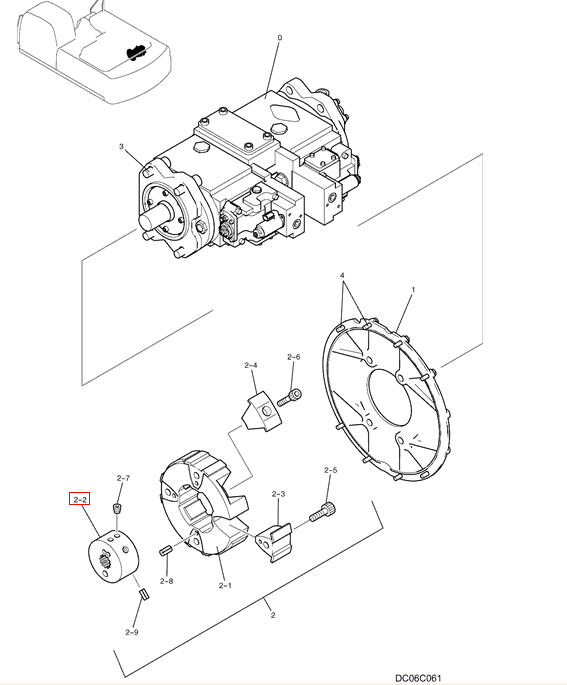

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 3 | 4 | ZS28C20055 | CAP M20x2.5x55mm |
| 2-9 | 8 | ZP26D08016 | ROLL PIN |
| 2-8 | 4 | 2418R605S7 | COTTER PIN |
| 2-7 | 2 | ZS73C20025 | SET OF SCREWS |
| 2-6 | 4 | 2418U153S5 | SCREW |
| 2-5 | 4 | 2418U153S4 | SCREW |
| 2-4 | 4 | LC30P01023S004 | INSERT INSERT MR |
| 2-3 | 4 | LC30P01023S003 | INSERT INSERT MA |
| 2-2 | 1 | LC30P01010S009 | HUB HUB |
| 2-1 | 1 | 2418R605S1 | GASKET |
| 2 | 1 | LC30P01023F1 | COUPLING COUPLING |
| 1 | 1 | YN30P01029P1 | BRACKET BRACKET |
| LC30P00009F1 | POWER TAKE-OFF ASSEMBLY INCLUDE 1- 4 | ||
| 0 | 1 | LC10V00029F3 | HYDRAULIC PUMP |
| 0 | 1 | LC10V00014F1 | PUMP Assembly Hyd (see fig 8.014), |
