2437U213S14 hydraulic pump Cylinder Block For SK200-3 SK200-5
SK200-3 SK200-5 hydraulic pump Cylinder Block 2437U213S14
| Part Name | Cylinder Block | Part Number | 2437U213S14 |
| Brand | Kobelco、Kobeki、Kawasaki | Applicable Model | SK200-3 SK200-5 |
Weight:10KG

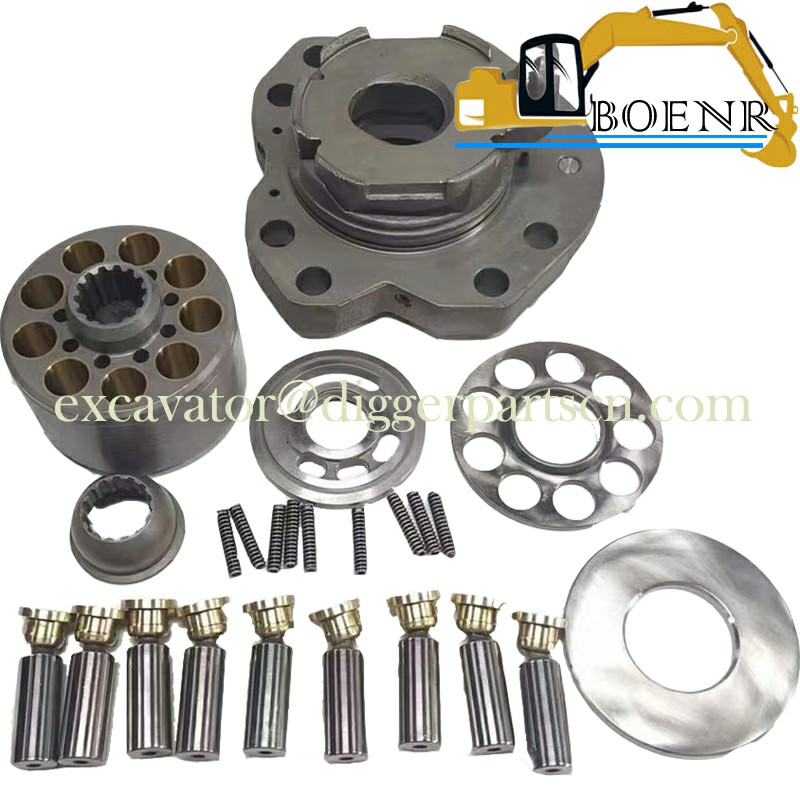

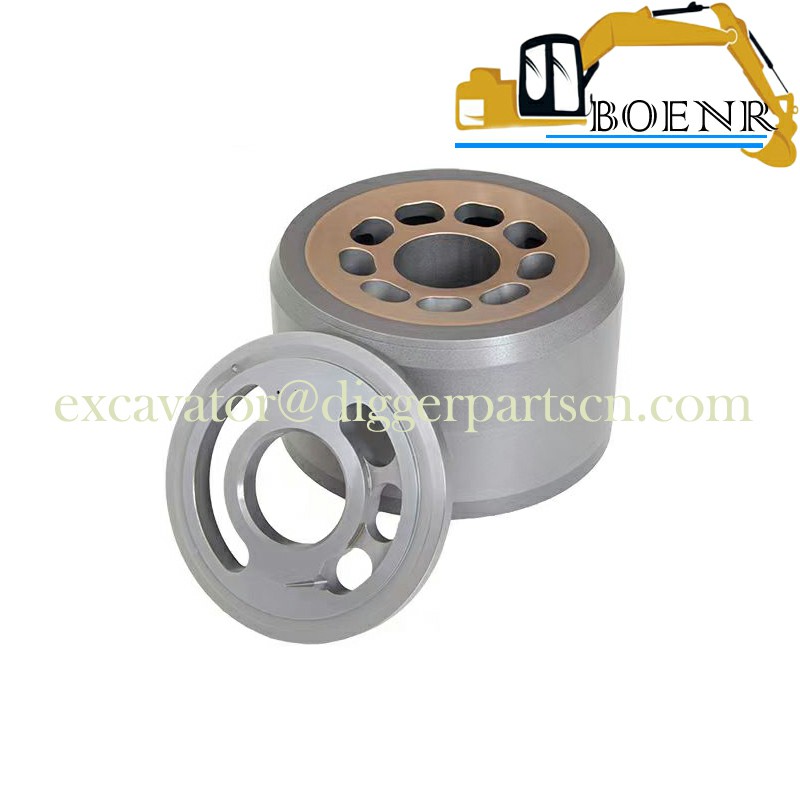

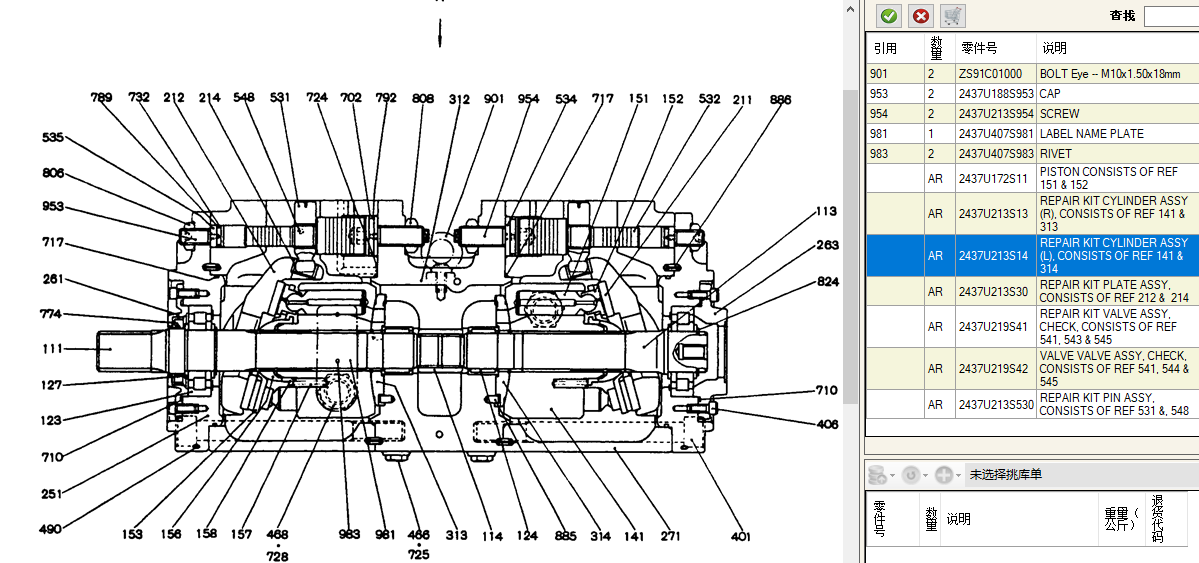

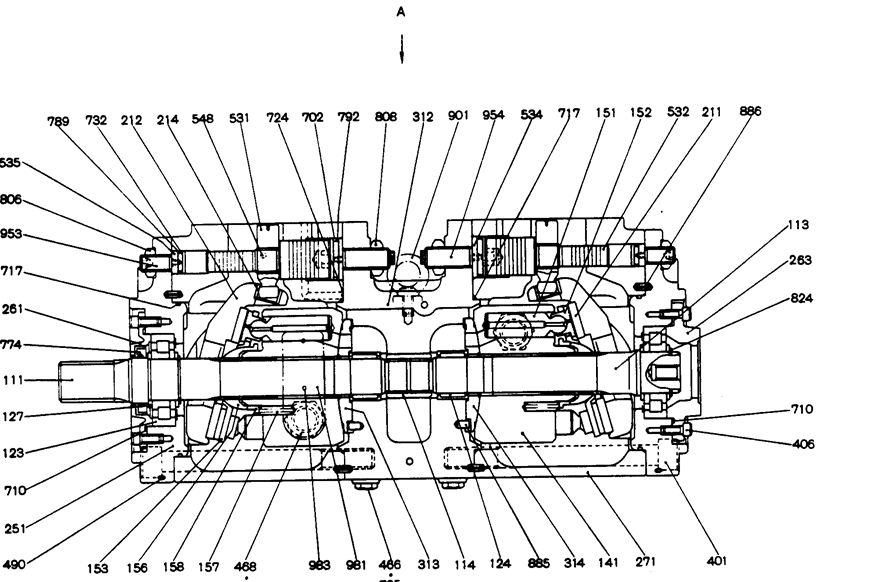

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 2437U213S530 | REPAIR KIT PIN ASSY, Remarks: CONSISTS OF ITEM 531, 548 | ||
| 2437U219S42 | VALVE VALVE ASSY, CHECK, Remarks: CONSISTS OF ITEM 541, 544, 545 | ||
| 2437U219S41 | REPAIR KIT VALVE ASSY, CHECK, Remarks: CONSISTS OF ITEM 541, 543, 545 | ||
| 2437U213S30 | REPAIR KIT PLATE ASSY, Remarks: CONSISTS OF ITEM 212, 214 | ||
| 2437U213S14 | REPAIR KIT CYLINDER ASSY (L), Remarks: CONSISTS OF ITEM 141, 314 | ||
| 2437U213S13 | REPAIR KIT CYLINDER ASSY (R), Remarks: CONSISTS OF ITEM 141, 313 | ||
| 2437U172S11 | PISTON PISTON ASSY, Remarks: CONSISTS OF ITEM 151, 152 | ||
| 983 | 2 | 2437U407S983 | RIVET SCREW |
| 981 | 1 | 2437U407S981 | LABEL NAME PLATE |
| 954 | 2 | 2437U213S954 | SCREW SETSCREW |
| 953 | 2 | 2437U188S953 | CAP SETSCREW |
| 901 | 2 | ZS91C01000 | BOLT Eye -- M10x1.50x18mm |
| 886 | 4 | ZP26D06014 | PIN Roll -- OD 06 x 14mm Long |
| 885 | 2 | 2441U723S885 | PIN PIN |
| 824 | 2 | R13N0013E22 | SNAP RING RING, SNAP |
| 808 | 2 | ZN11C20012 | NUT M20x2.50mm |
| 806 | 2 | ZN11C16010 | NUT M16x2.0mm |
| 792 | 2 | ZD85G03500 | RING Back-Up -- ID 35 x OD 40 x Th 1.25mm |
| 789 | 2 | ZD85P01800 | RING Back-Up -- ID 18 x OD 22 x Th 1.25mm |
| 774 | 1 | 2441U436S774 | OIL SEAL OIL SEAL |
| 732 | 2 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm |
| 728 | 3 | ZD12P02400 | O-RING ID 23.70 ± 0.24 x OD 30mm |
| 727 | 2 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 725 | 8 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| 724 | 16 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 717 | 4 | ZD12G14500 | O-RING ID 144.40 ± 1.16 x OD 150mm |
| 710 | 2 | ZD12G09500 | GASKET O-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 702 | 2 | ZD12G03500 | O-RING ID 34.40 ± 0.33 x OD 40mm |
| 548 | 2 | PIN, FEEDBACK | |
| 545 | 4 | BALL | |
| 544 | 2 | STOPPER | |
| 543 | 2 | STOPPER | |
| 541 | 4 | SEAT | |
| 535 | 2 | 2437U213S535 | STOP STOPPER |
| 534 | 2 | 2437U213S534 | STOP STOPPER |
| 532 | 2 | 2437U213S532 | PISTON PISTON |
| 531 | 2 | PIN | |
| 490 | 24 | 2441U722S490 | PLUG 1/16" NPTF |
| 468 | 3 | 2441U436S469 | PLUG PLUG |
| 466 | 3 | 2441U667S466 | PLUG 1/4" PF |
| 407 | 3 | ZS23C06065 | SCREW M06x1.0x65mm |
| 406 | 8 | ZS23C08025 | SCREW M08x1.25x25mm |
| 401 | 8 | 2437U213S401 | SCREW CAPSCREW |
| 325 | 1 | 2437U407S325 | CASE CASE, VALVE |
| 314 | 1 | PLATE, VALVE (L) | |
| 313 | 1 | PLATE, VALVE (R) | |
| 312 | 1 | 2437U213S312 | COUPLING BLOCK BLOCK, VALVE |
| 271 | 2 | 2437U213S271 | CASE CASE |
| 263 | 1 | 2437U213S263 | COVER COVER, REAR |
| 261 | 1 | 2437U213S261 | COVER COVER, SEAL |
| 251 | 2 | 2437U213S251 | PLATE PLATE |
| 214 | 2 | BUSHING | |
| 212 | 2 | PLATE | |
| 211 | 2 | 2441U242S211 | PLATE PLATE, SHOE |
| 158 | 2 | 2437U213S158 | SPACER SPACER |
| 157 | 18 | 2437U213S157 | SPRING SPRING |
| 156 | 2 | 2437U213S156 | BUSHING BUSHING |
| 153 | 2 | 2437U213S153 | PLATE PLATE |
| 152 | 18 | SHOE | |
| 151 | 18 | PISTON | |
| 141 | 2 | CYLINDER BLOCK | |
| 127 | 4 | 2441U723S127 | SPACER SPACER, BEARING |
| 124 | 2 | 2437U213S124 | BEARING BEARING, NEEDLE |
| 123 | 2 | 2437U213S123 | BEARING BEARING, ROLLER |
| 114 | 1 | 2437U213S114 | COUPLING COUPLING |
| 113 | 1 | 2437U213S113 | SHAFT SHAFT (R) |
| 111 | 1 | 2437U213S111 | SHAFT SHAFT (F) |
| (79) | 1 | 2436R884F1 | VALVE VALVE ASSY, SOLENOID, Remarks: SEE.P. 2436R884-1 |
| 2437U407F1 | HYDRAULIC PUMP PUMP ASSY, Remarks: CONSISTS OF THE FOLLOWING PARTS |
