2437U157F1 Hydraulic pump Gear Pump For SK200-2 SK200-3 SK220-3 SK220-4 SK200-5
SK200-2 SK200-3 SK220-3 SK220-4 SK200-5 Hydraulic pump Gear Pump 2437U157F1
| Part Name | Gear Pump | Part Number | 2437U157F1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK200-2 SK200-3 SK220-3 SK220-4 SK200-5 |
Weight: 2 kg

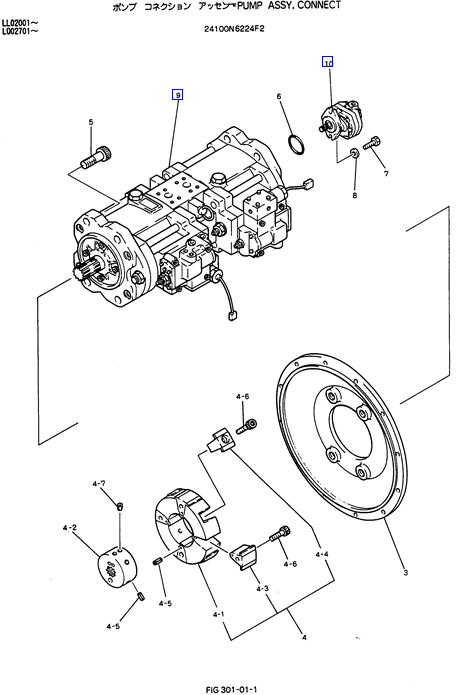

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 10 | 1 | 2437U157F1 | HYDRAULIC PUMP GEAR, SEE(C.P.M) |
| 1 | 2437U402F4C | CORE-HYDRAULIC PUMP Return Number, N.A. Only | |
| 1 | 2437U402F4RMP | PUMP Remanufactured, HYDRAULIC PUMP, N.A. Only | |
| 1 | 2437U402F4 | HYDRAULIC PUMP Hydraulic Pump | |
| 2437U402F1C | CORE-HYDRAULIC PUMP Not Shown | ||
| 2437U402F1RMP | REMAN-HYD PUMP Remanufactured -- Not Shown | ||
| 9 | 1 | 2437U402F1 | PUMP ASSY |
| 8 | 2 | ZW11K10000 | WASHER ID 10 x OD 18 x Th 2.0mm |
| 7 | 2 | ZS13C10025 | SCREW M10x1.50x25mm |
| 6 | 1 | ZD12G05500 | RING O -- ID 54.40 ± 0.49 x OD 60mm |
| 5 | 4 | ZS23C20055 | SCREW M20x2.5x55mm |
| 4-7 | 2 | ZS73C16025 | HYDRAULIC VALVE Screw, Set -- M16x2.0x25mm |
| 4-6 | 8 | 2418R219S6 | SCREW |
| 4-5 | 12 | ZP26D05010 | PIN Roll -- OD 05 x 10mm Long |
| 4-4 | 4 | 2418R219S4 | INSERT ALMINUM |
| 4-3 | 4 | 2418R219S3 | INSERT ALMINUM |
| 4-2 | 1 | 2418R272S2 | HUB |
| 4-1 | 1 | 2418R219S1 | ELEMENT ELEMENT |
| 4 | 1 | 2418R272F1 | COUPLING |
| 3 | 1 | 2416N3333 | U-BRACKET |
| 24100N6224F2 |
