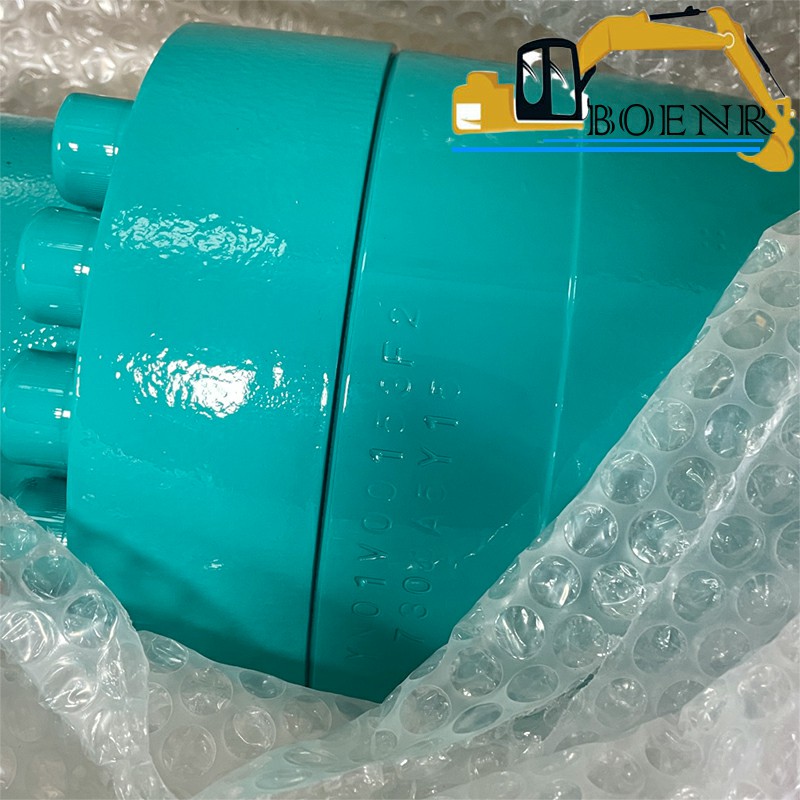

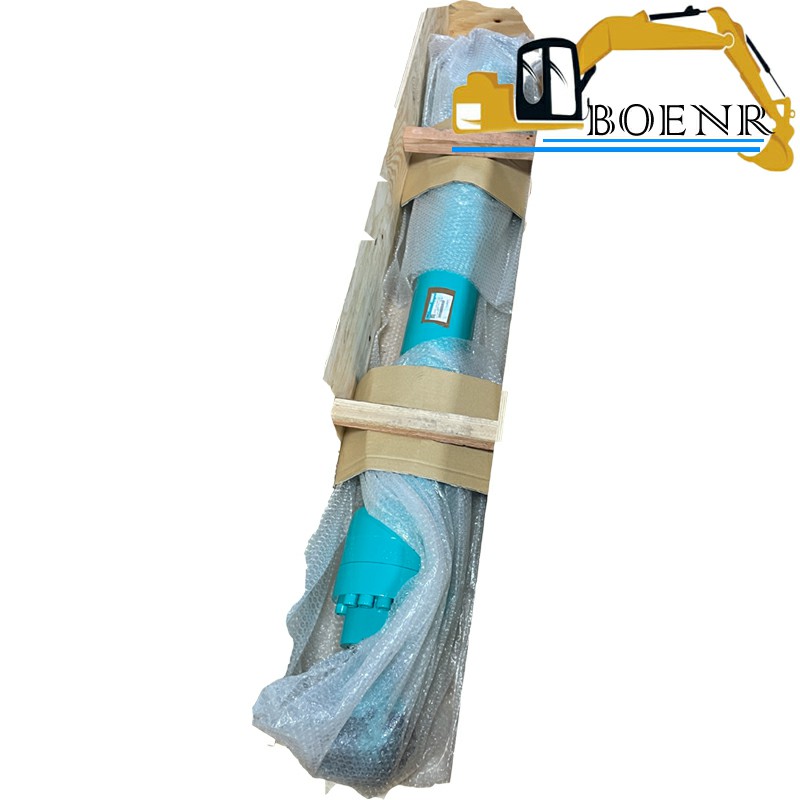

YN01V00153F2 Bucket Cylinder Assy For SK200-8 SK210-8 SK200-10 SK210-10
SK200-8 SK210-8 SK200-10 SK210-10 Bucket Cylinder Assy YN01V00153F2
| Part Name | Bucket Cylinder Assy | Part Number | YN01V00153F2 |
| Brand | Kobelco Kobeki | Applicable Model | SK200-8 SK210-8 SK200-10 SK210-10 |
Weight: 180 Kg

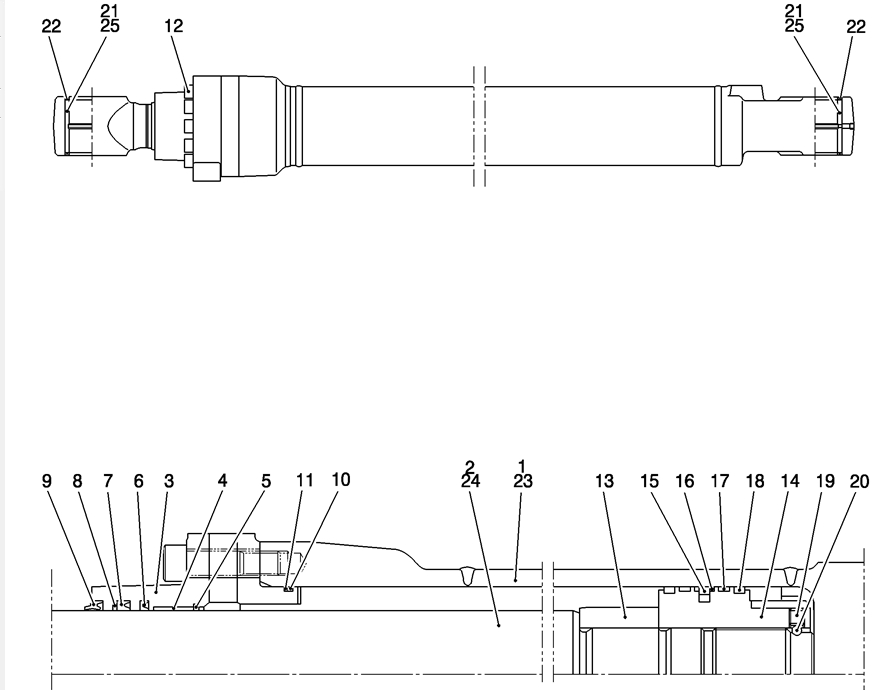

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 1 | YN01V00153R700 | REPAIR KIT Consists Of Ref. 22x2, 24x1, 25x1 (For F2 ONLY) | |
| 1 | YN01V00153R600 | REPAIR KIT Consists Of Ref. 22x2, 23x1, 25x1 (For F2 ONLY) | |
| 1 | YN01V00153R500 | REPAIR KIT Consists Of Ref. 2x1, 21x1, 22x2 (For F1 ONLY) | |
| 1 | YN01V00153R400 | REPAIR KIT Consists Of Ref. 1x1, 21x2, 22x2 (For F1 ONLY) | |
| 1 | YN01V00153R300 | REPAIR KIT All (Rod + Piston) | |
| 1 | YN01V00151R200 | REPAIR KIT Piston Side | |
| 1 | YN01V00153R100 | REPAIR KIT Rod Side | |
| 25 | 2 | 2438U959S22 | BUSHING (For F1 ONLY) |
| 24 | 1 | NSS | NOT SERVICED SEPARATELY Rod, Piston (For F2 ONLY) |
| 23 | 1 | NSS | NOT SERVICED SEPARATELY Tube, Cylinder (For F2 ONLY) |
| 22 | 4 | YN01V00153S022 | SEAL Dust |
| 21 | 4 | YN12B02221P1 | BUSHING (For F1 ONLY) |
| 20 | 1 | 2436U330S16 | BALL |
| 19 | 1 | 2438U999S21 | SCREW Set |
| 18 | 2 | 2438U1105S18 | RING Slide |
| 17 | 2 | YN01V00151S018 | RING Slide |
| 16 | 2 | LQ01V00004S017 | BACK-UP RING |
| 15 | 1 | 2438U1105S16 | RING ASSY. Seal |
| 14 | 1 | YN01V00153S014 | PISTON |
| 13 | 1 | YN01V00153S013 | BEARING Cushion |
| 12 | 12 | ZS23C16075 | SCREW Cap |
| 11 | 1 | 2438U1105S12 | BACK-UP RING |
| 10 | 1 | ZD12G11500 | O-RING |
| 9 | 1 | 2438U1105S35 | RING Wiper |
| 8 | 1 | 2438U1105S8 | RING Back Up |
| 7 | 1 | YN01V00153S007 | RING U |
| 6 | 1 | YN01V00153S006 | RING Buffer |
| 5 | 1 | 2438U1105S5 | SNAP RING Retaining |
| 4 | 1 | 2438U1109S14 | BUSHING |
| 3 | 1 | YN01V00112S003 | CYLINDER HEAD |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY Rod, Piston (For F1 ONLY) |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY Tube, Cylinder (For F1 ONLY) |
| AR | YN01V00153F2 | CYLINDER Assy, Bucket | |
| AR | YN01V00153F1 | CYLINDER Assy, Bucket |
