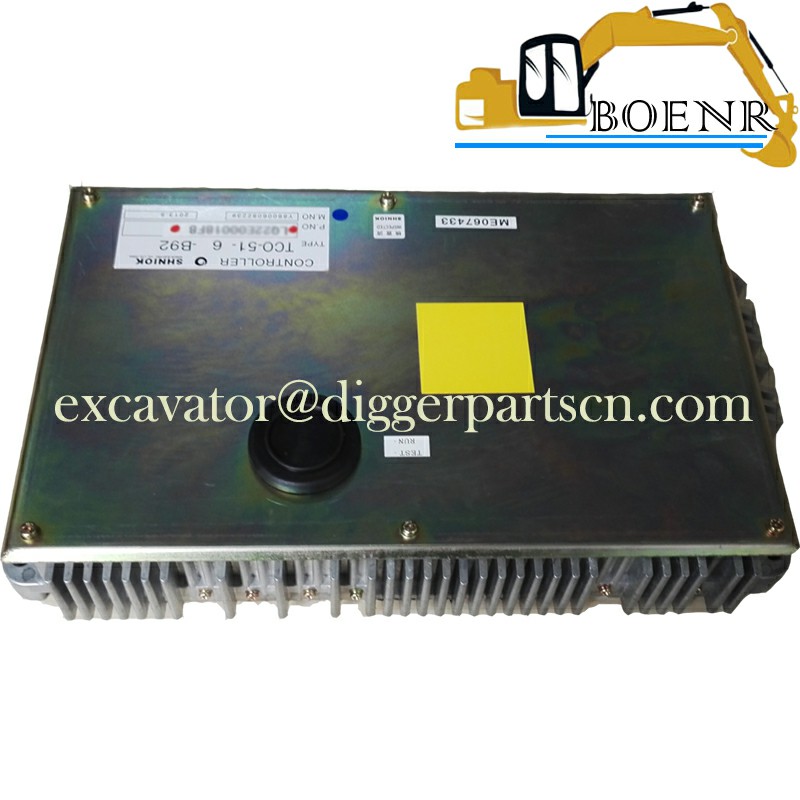

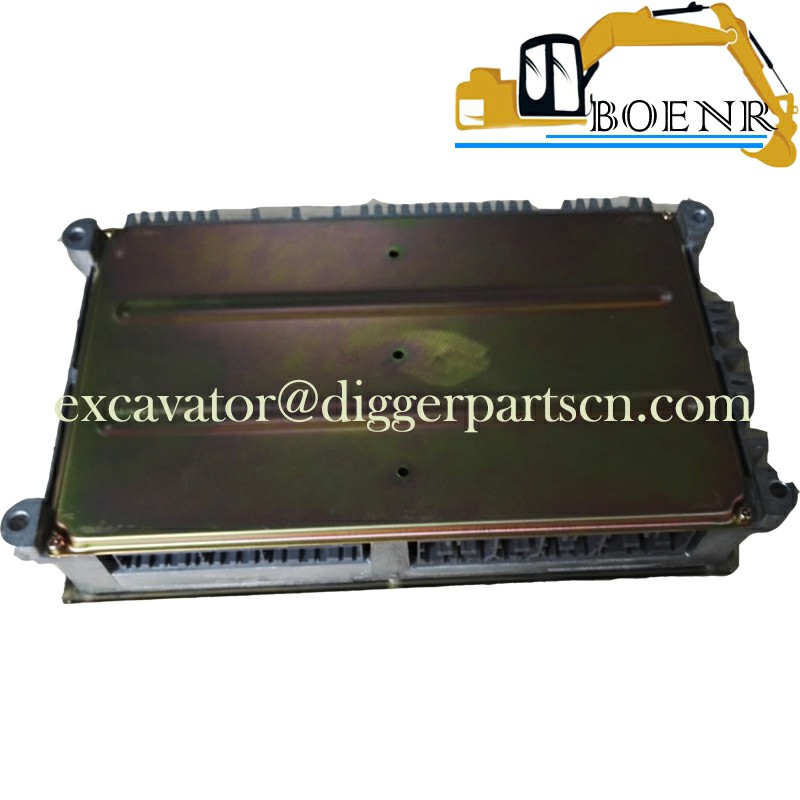

YM22E00001F1 Controller For SK160LC
SK160LC Controller YM22E00001F1
| Part Name | Controller | Part Number | YM22E00001F1 |
| Brand | kobeki、Kobelco | Applicable Model | SK160LC |
Weight:5KG

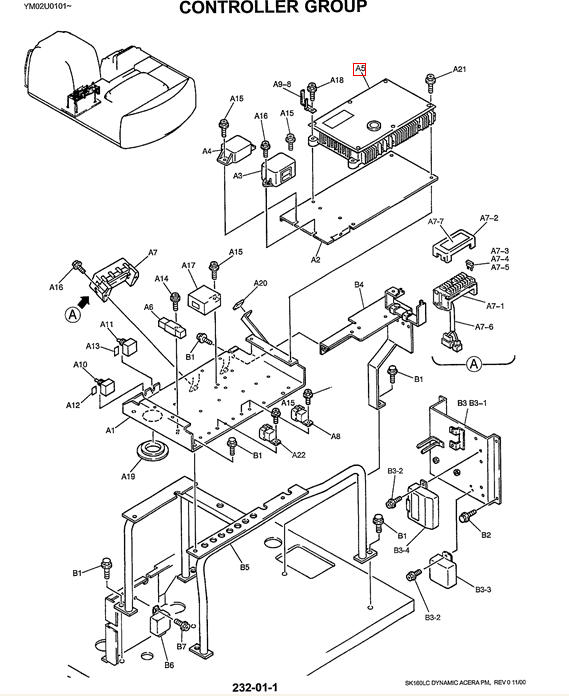

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| A4 | 1 | VAME077148 | RELAY SAFETY (R-4) |
| MITSUBISHI COMPONENTS | |||
| B7 | 3 | ZM66C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| B6 | 1 | YN25S00001P1 | TIMER |
| B5 | 1 | YN22E01028P1 | SUPPORT |
| B4 | 1 | YN22E01032P1 | PLATE |
| B3-4 | 1 | YY24S00001P1 | RELAY FLASHER |
| B3-3 | 1 | YN77S00005F1 | CONVERTER |
| B3-2 | 3 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| B3-1 | 1 | YN24E01004P3 | PLATE |
| B3 | 1 | YN24E00005F1 | RELAY |
| B2 | 4 | ZM66C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| B1 | 9 | ZM22C10025 | BOLT M10x1.50x25mm (Incls. Washer & Lockwasher) |
| AR | YN22E00060F1 | CONTROLLER INSTALLATION | |
| A22 | 1 | YN24S00001P1 | RELAY TRAVEL ALARM (R-8) |
| A21 | 2 | ZM61C06035 | BOLT M06x1.0x35mm (Incls. Washer & Lockwasher) |
| A20 | 1 | YN22E01012P1 | RUBBER |
| A19 | 1 | 2420Z699 | GROMMET |
| A18 | 2 | ZM61C06030 | BOLT M06x1.0x30mm (Incls. Washer & Lockwasher) |
| A17 | 1 | YT24E00001F1 | RELAY WIPER/WASHER (R-7) |
| A16 | 3 | ZM61C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| A15 | 7 | ZM61C06016 | BOLT M06x1.0x16mm (Incls. Washer & Lockwasher) |
| A14 | 1 | ZM41C04016 | BOLT M04x0.7x16mm (Incls. Washer & Lockwasher) |
| A13 | 1 | YN22M01014P1 | LABEL Decal, Swing Parking Brake Release Lock and Normal |
| A12 | 1 | YN22M01013P1 | LABEL |
| A11 | 1 | YX50E00002F1 | SWITCH SWING PARKING RELEASE (SW-4) |
| A10 | 1 | YN50S01003P1 | SWITCH KPSS RELEASE (SW-5) |
| A9-8 | 1 | 2432R233D1 | CLIP 37x12x40mm |
| A9-7 | 2 | ZW16X06000 | WASHER ID 06 x OD 12.5 x Th 1.6mm |
| A9-6 | 2 | ZW26X06000 | LOCK WASHER ID 06 x OD 07 x Th 1.5mm |
| A9-5 | 1 | PY01P01043D3 | CLIP Wire Ties -- 188mm Long |
| A9-4 | 14 | YN03E01001D5 | CLIP 195mm Long (7-43/64 in) -- Black |
| A9-3 | 6 | ZM66C06020 | BOLT M06x1.0x20mm (Incls. Washer & Lockwasher) |
| A9-2 | 2 | ZS18C06016 | SCREW M06x1.0x16mm |
| A9-1 | 1 | YM14E01001P3 | WIRE HARNESS |
| A9 | 1 | YM14E00001F1 | HARNESS ASSY, CAB |
| A8 | 2 | YR24S00002P1 | RELAY SAFETY (R-5, R-6) |
| A7-7 | 1 | YN73E01010P1 | LABEL |
| A7-6 | 1 | LC73E00001S006 | |
| A7-5 | 8 | 2479R655S9 | FUSE 20 Amp |
| A7-4 | 4 | 2479R655S8 | FUSE 10 Amp |
| A7-3 | 6 | 2479R655S10 | FUSE 5 Amp |
| A7-2 | 1 | YN73E00001S002 | COVER |
| A7-1 | 1 | YN73E00001S001 | BASE |
| A7 | 1 | LC73E00001F1 | FUSE BOX (E-1) |
| A6 | 1 | LC22E01001D1 | RESISTOR 16 Ohm, (E-4) |
| A5 | 1 | YM22E00001F1 | CONTROL (C-1 KPSS) |
| A3 | 1 | YN50E00004F1 | SWITCH ASSY BOX (C-3) |
| A2 | 1 | YN22E01027P1 | PLATE |
| A1 | 1 | YN22E01033P2 | BOX |
| F1 | YM22E00003F1 | CONTROL Assembly - NSS - Order individual parts |
