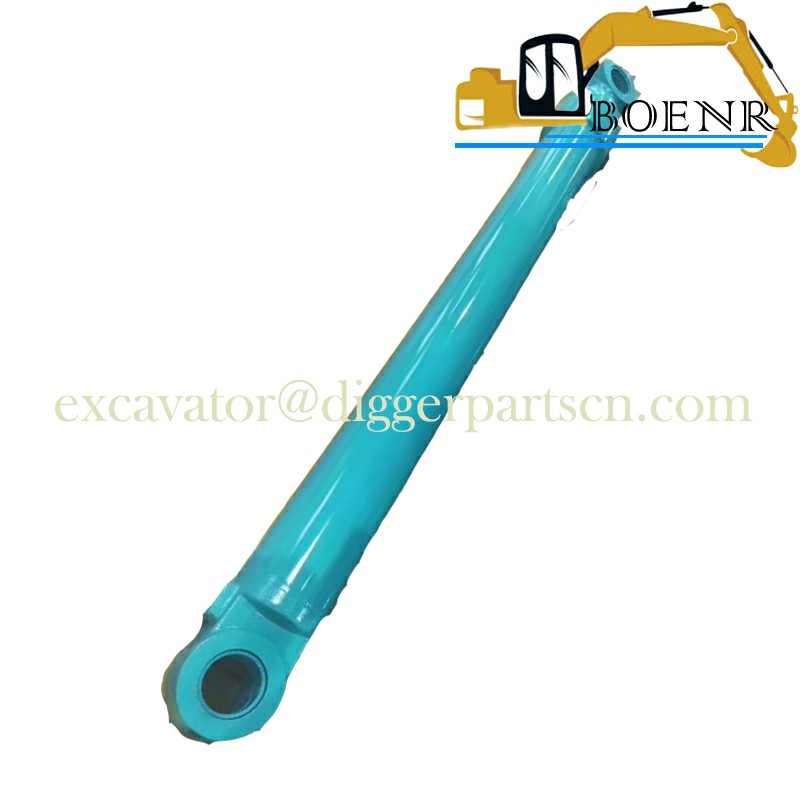

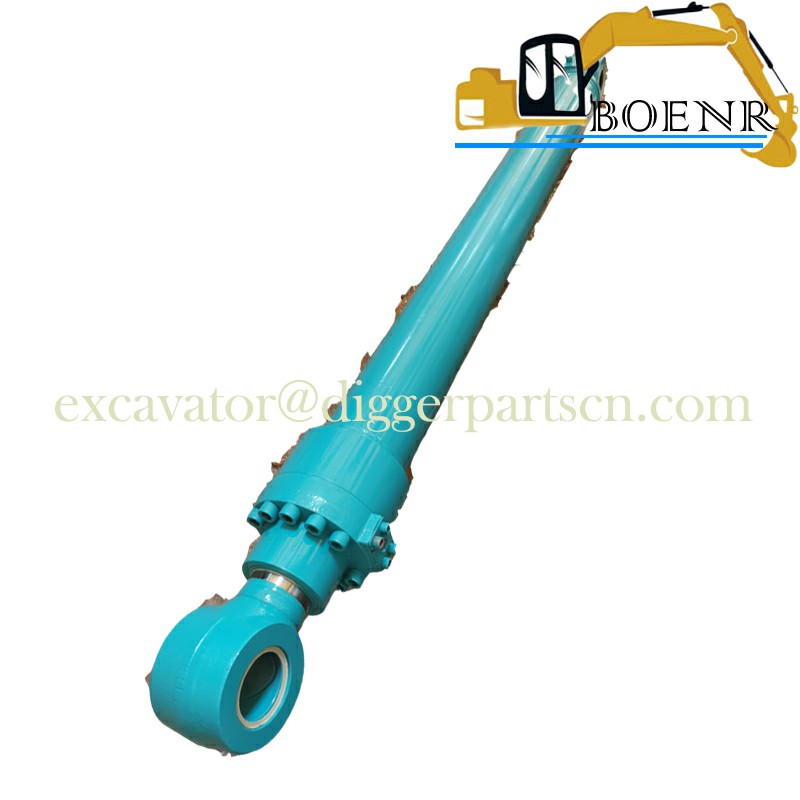

LS01V00057F1 Bucket Cylinder Assy For SK480-8 SK485-9 SK430-8
SK480-8 SK485-9 SK430-8 Bucket Hydraulic Cylinder Assy LS01V00057F1
| Part Name | Bucket Hydraulic Cylinder | Part Number | LS01V00057F1 |
| Brand | Kobelco、Kobeki | Applicable Model | SK480-8 SK485-9 SK430-8 |
Weight: 285KG

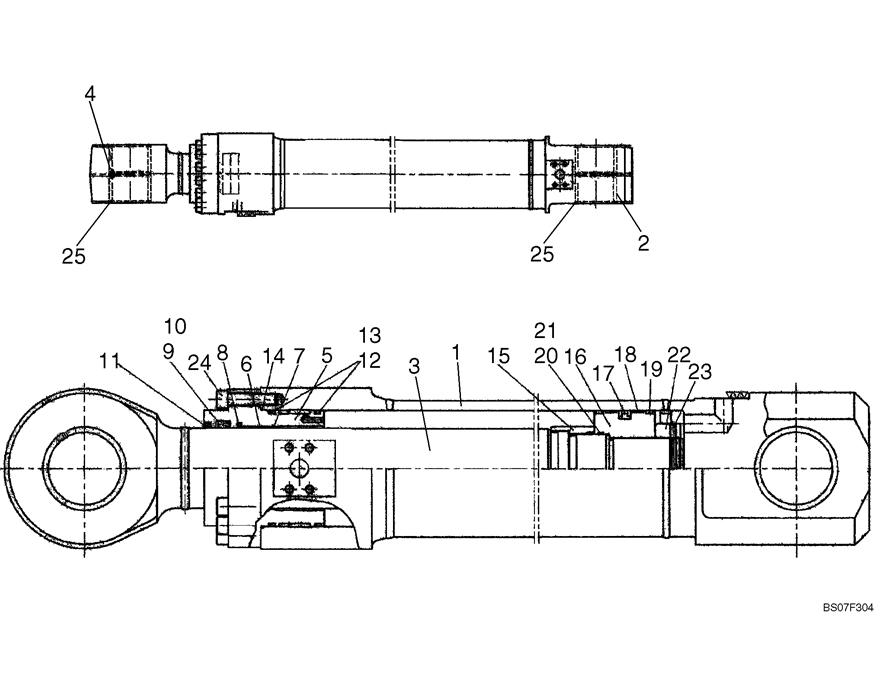

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| K | 1 | LS01V00057R500 | REPAIR KIT Kit, Repair (Contains Items 2, 3 & 25) |
| K | 1 | LS01V00057R400 | REPAIR KIT Kit, Repair (Contains Items 1, 2 & 25) |
| K | 1 | LS01V00057R300 | REPAIR KIT Kit, Repair (Contains Items 8 - 14 & 17 - 21) |
| K | 1 | LS01V00057R200 | REPAIR KIT Kit, Repair (Contains Items 17 - 21) |
| K | 1 | LS01V00057R100 | REPAIR KIT Kit, Repair (Contains Items 8 - 14) |
| 25 | 4 | LS01V00057S025 | SEAL Seal |
| 24 | 16 | LS01V00055S024 | SCREW Screw, Cap |
| 23 | 1 | LS01V00055S023 | SCREW Screw, Set |
| 22 | 1 | LS01V00057S022 | NUT Nut |
| 21 | 2 | LS01V00057S021 | RING Ring, Back-Up |
| 20 | 1 | ZD12G09500 | GASKET O-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 19 | 2 | LS01V00057S019 | RING Ring |
| 18 | 2 | LS01V00057S018 | WEAR RING Ring, Wear |
| 17 | 1 | LS01V00057S017 | SEAL Seal, Piston |
| 16 | 1 | LS01V00057S016 | PISTON Piston |
| 15 | 1 | LS01V00057S015 | RING Ring |
| 14 | 1 | LS01V00057S014 | O-RING O-Ring |
| 13 | 2 | LS01V00057S013 | RING Ring, Back-Up |
| 12 | 2 | ZD12G15000 | O-RING ID 149.30 ± 1.19 x OD 160mm |
| 11 | 1 | LS01V00057S011 | SEAL Seal, Dust |
| 10 | 1 | LS01V00057S010 | RING Ring, Back-Up |
| 9 | 1 | LS01V00057S009 | SEAL Seal |
| 8 | 1 | LS01V00057S008 | SEAL Seal |
| 7 | 1 | LS01V00057S007 | RING Ring, Retainer |
| 6 | 1 | LS01V00057S006 | BUSHING Bushing |
| 5 | 1 | LS01V00057S005 | COVER Cover |
| 3 | 1 | NA | NOT SERVICED Rod, Cylinder |
| 2 | 4 | LS01V01022P1 | BUSHING Bushing |
| 1 | 4 | NA | NOT SERVICED Tube, Cylinder |
| 1 | LS01V00057F1 | CYLINDER Bucket Cylinder Assembly |
