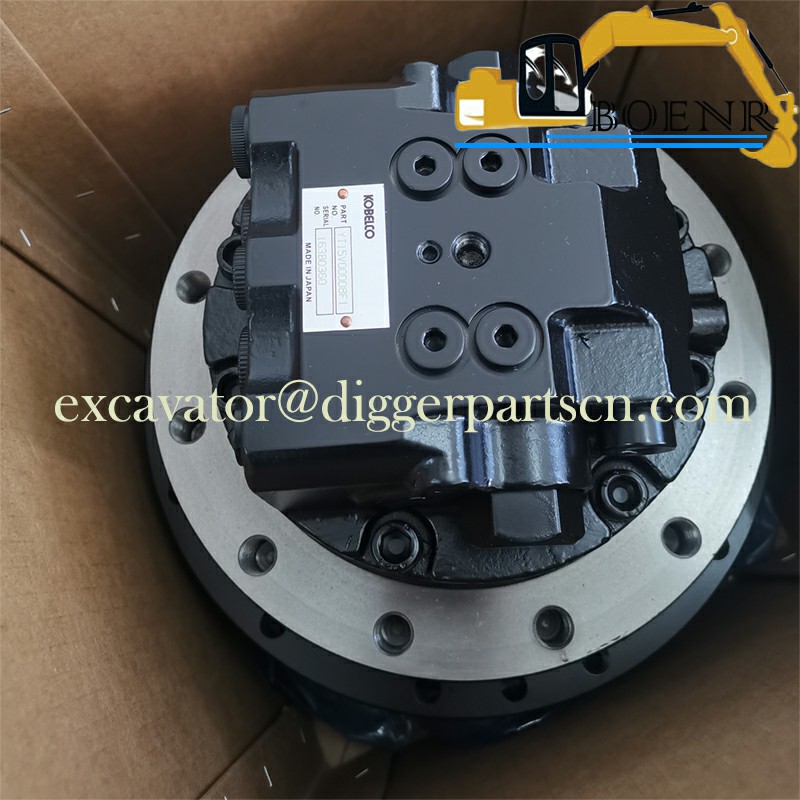

YT15V00008F1 Final Drive For SK70SR SK80MSR SK80SC

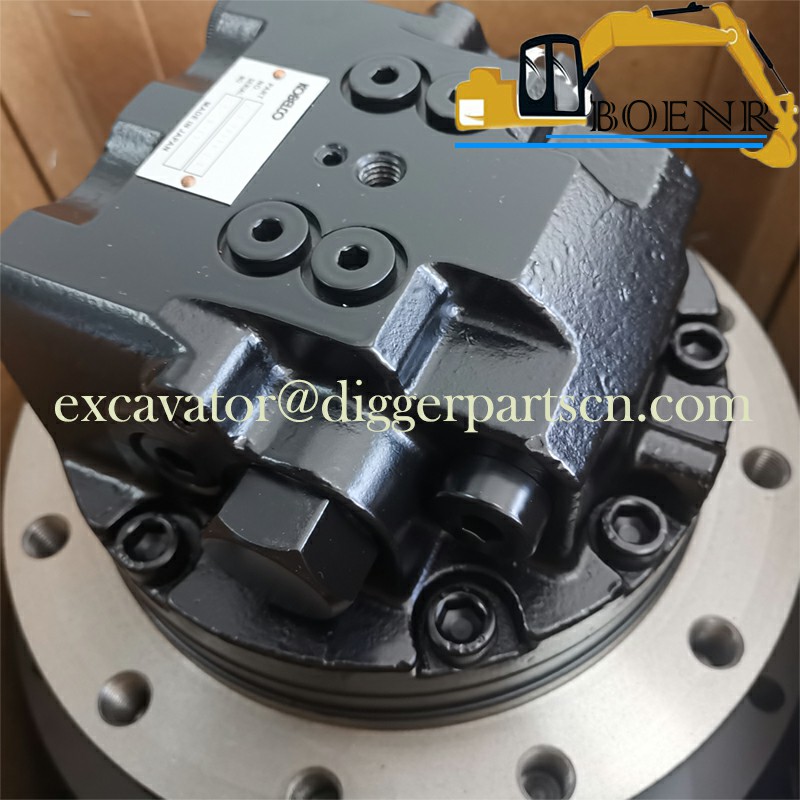

SK70SR SK80MSR SK80SC Final Drive YT15V00008F1
| Part Name | Final Drive | Part Number | YT15V00008F1 |
| Brand | Kobelco Kobeki | Applicable Model | SK70SR SK80MSR SK80SC |
Weight: 236 kg

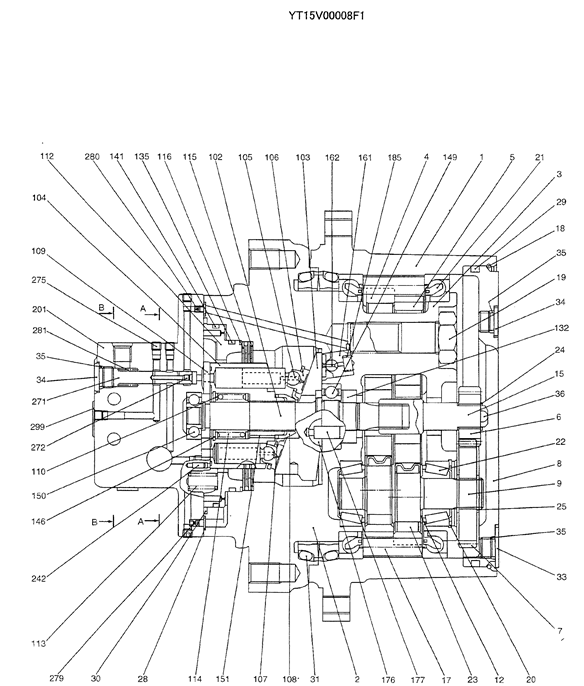

Parts Catalog
| ITEM | QTY | Part Number | Part Name |
| 1 | YT15V00008R500 | REPAIR KIT CONSISTS OF REF 2 (1), 3 (1) | |
| 1 | LF15V00002R490 | SEAL KIT REPAIR, CONSISTS OF REF 28 (4), 29 (1), 30 (1), 31 (2), 35 (7), 132 (1), 135 (1), 141 (1), 236 (2), 238 (6), 291 (2), 293 (2), 294 (4), 295 (4) | |
| 1 | LF15V00002R480 | SPOOL REPAIR, CONSISTS OF REF 271 (1), 272 (1) | |
| 1 | YT15V00008R470 | REPAIR KIT CONSISTS OF REF 201 (1), 223 (1), 252 (1), 268 (1), 275 (10), 279 (1), 280 (4), 283 (1), 286 (2), 299 (1) | |
| 1 | YT15V00008R460 | REPAIR KIT CONSISTS OF REF 28 (2), 35 (4), 201 (1), 221 (2), 223 (1), 224 (2), 225 (2), 227 (7), 228 (2), 230 (2), 236 (2), 238 (6), 252 (1), 268 (1), 271 (1), 272 (1), 275 (1), 279 (1), 280 (4), 281 (1), 282 (4), 283 (1), 284 (2), 286 (2), 287 (2), 288 (2), 289 (2) | |
| 1 | LF15V00002R450 | REPAIR KIT CONSISTS OF REF 161 (1), 162 (1) | |
| 1 | LF15V00002R440 | REPAIR KIT CONSISTS OF REF 105 (9), 106 (9) | |
| 1 | LF15V00002R430 | REPAIR KIT CONSISTS OF REF 31 (2) | |
| 1 | LF15V00002R420 | GEAR REPAIR KIT, CONSISTS OF REF 7 (3) | |
| 1 | LF15V00002R410 | GEAR REPAIR KIT, CONSISTS OF REF 4 (1), 5 (1), 9 (3), 12 (6), 22 (6), 23 (6) | |
| 1 | LF15V00002R400 | REPAIR KIT CONSISTS OF REF 2 (1), 3 (1), 19 (3) | |
| 299 | 1 | NSS | NOT SERVICED SEPARATELY NAME PLATE |
| 297 | 2 | LF15V00002S297 | ORIFICE |
| 296 | 2 | 2441U829S168 | BALL |
| 295 | 4 | ZD85P01400 | RING Back-Up -- ID 14 x OD 18 x Th 1.25mm |
| 294 | 4 | ZD85P01200 | BACK-UP RING |
| 293 | 2 | LP22V00004S221 | SEAL PISTON |
| 291 | 2 | ZD12P01200 | O-RING ID 11.80 ± 0.19 x OD 16mm |
| 290 | 2 | LF15V00002S290 | SPRING |
| 289 | 2 | LF15V00002S289 | PLUG |
| 288 | 2 | LF15V00002S288 | SLEEVE |
| 287 | 2 | LF15V00002S287 | CHECK VALVE |
| 286 | 2 | NSS | NOT SERVICED SEPARATELY PISTON |
| 284 | 2 | YT15V00008S284 | PLUG |
| 283 | 1 | NSS | NOT SERVICED SEPARATELY PLUG |
| 282 | 4 | 2441U995S121 | PLUG |
| 281 | 1 | LF15V00002S281 | SPRING |
| 280 | 4 | NSS | NOT SERVICED SEPARATELY ORIFICE |
| 279 | 1 | NSS | NOT SERVICED SEPARATELY FILTER |
| 275 | 10 | PY15V00006S154 | PLUG |
| 272 | 1 | NSS | NOT SERVICED SEPARATELY STOPPER, OIL |
| 271 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 268 | 1 | PH15V00009S268 | BALL |
| 252 | 1 | YX15V00003S146 | PLUG |
| 245 | 6 | ZS23C12030 | SCREW M12x1.75x30mm |
| 242 | 2 | 2441U815S141 | PIN |
| 238 | 6 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm |
| 236 | 2 | ZD12P02600 | O-RING ID 25.70 ± 0.26 x OD 32mm |
| 230 | 2 | LF15V00002S230 | SPRING |
| 228 | 2 | 2441U532S128 | SPRING |
| 227 | 2 | LF15V00002S227 | CHECK VALVE |
| 225 | 2 | YR15V00002S125 | SEAT SPRING |
| 224 | 2 | 2441U532S123 | PLUG |
| 223 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 201 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE |
| 185 | 1 | YT15V00002S185 | SPRING |
| 177 | 2 | YW15V00005S171 | PIN |
| 176 | 2 | LF15V00002S176 | SHAFT PIVOT |
| 162 | 1 | NSS | NOT SERVICED SEPARATELY SHOE |
| 161 | 1 | NSS | NOT SERVICED SEPARATELY PISTON |
| 151 | 3 | LF15V00002S151 | ROLLER |
| 150 | 1 | LF15V00002S150 | BEARING BALL |
| 149 | 1 | 2441U532S129 | BEARING BALL |
| 146 | 1 | LF15V00002S146 | RING SNAP |
| 141 | 1 | LF15V00002S141 | O-RING |
| 135 | 1 | LF15V00002S135 | O-RING |
| 132 | 1 | 2441U815S132 | SEAL OIL |
| 116 | 2 | LF15V00002S116 | PLATE |
| 115 | 2 | LF15V00002S115 | PLATE |
| 114 | 1 | LF15V00002S114 | SPRING |
| 113 | 8 | LF15V00002S113 | SPRING |
| 112 | 1 | LF15V00002S112 | PISTON |
| 110 | 2 | LF15V00002S110 | WASHER |
| 109 | 1 | LF15V00002S109 | PLATE |
| 108 | 1 | LF15V00002S108 | BALL THRUST |
| 107 | 1 | LF15V00002S107 | RETAINER PLATE |
| 106 | 9 | NSS | NOT SERVICED SEPARATELY SHOE |
| 105 | 9 | NSS | NOT SERVICED SEPARATELY PISTON |
| 104 | 1 | LF15V00002S104 | CYLINDER BLOCK |
| 103 | 1 | YT15V00008S103 | PLATE |
| 102 | 1 | LF15V00002S102 | SHAFT |
| 43 | 2 | LF15V00002S043 | PIN |
| 36 | 1 | 2441U815S26 | BALL |
| 35 | 7 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 34 | 4 | YR15V00002S121 | PLUG |
| 33 | 1 | YT15V00008S033 | PLUG |
| 31 | 2 | NSS | NOT SERVICED SEPARATELY SEAL, FLOATING |
| 30 | 1 | LF15V00002S030 | O-RING |
| 29 | 1 | ZD11G23000 | O-RING |
| 28 | 4 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 25 | 6 | ZR16X02500 | RING Retaining -- ID 23.2 x OD 25 x Th 1.2mm |
| 24 | 1 | ZR16X01900 | SNAP RING RETAINING |
| 23 | 6 | NSS | NOT SERVICED SEPARATELY BEARING, NEEDLE |
| 22 | 6 | NSS | NOT SERVICED SEPARATELY BEARING, ROLLER |
| 21 | 2 | LF15V00002S021 | BEARING BALL |
| 20 | 3 | 2441U532S19 | RING |
| 19 | 3 | LF15V00002S019 | BOLT REAMER |
| 18 | 1 | 2441U815S18 | RING |
| 17 | 28 | LF15V00002S017 | PIN |
| 15 | 1 | LF15V00002S015 | SHAFT |
| 12 | 6 | NSS | NOT SERVICED SEPARATELY SPACER |
| 9 | 3 | NSS | NOT SERVICED SEPARATELY SHAFT |
| 8 | 1 | LF15V00002S008 | COVER |
| 7 | 3 | NSS | NOT SERVICED SEPARATELY GEAR |
| 6 | 1 | LF15V00002S006 | GEAR |
| 5 | 1 | NSS | NOT SERVICED SEPARATELY GEAR |
| 4 | 1 | NSS | NOT SERVICED SEPARATELY GEAR |
| 3 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY SPINDLE |
| 1 | 1 | LF15V00002S001 | HUB |
| AR | YT15V00008F1 | MOTOR ASSY (PROPELLING) |
