YT15V00002F1 YT15V00002F2 TM09 Final Drive Assy For SK70SR

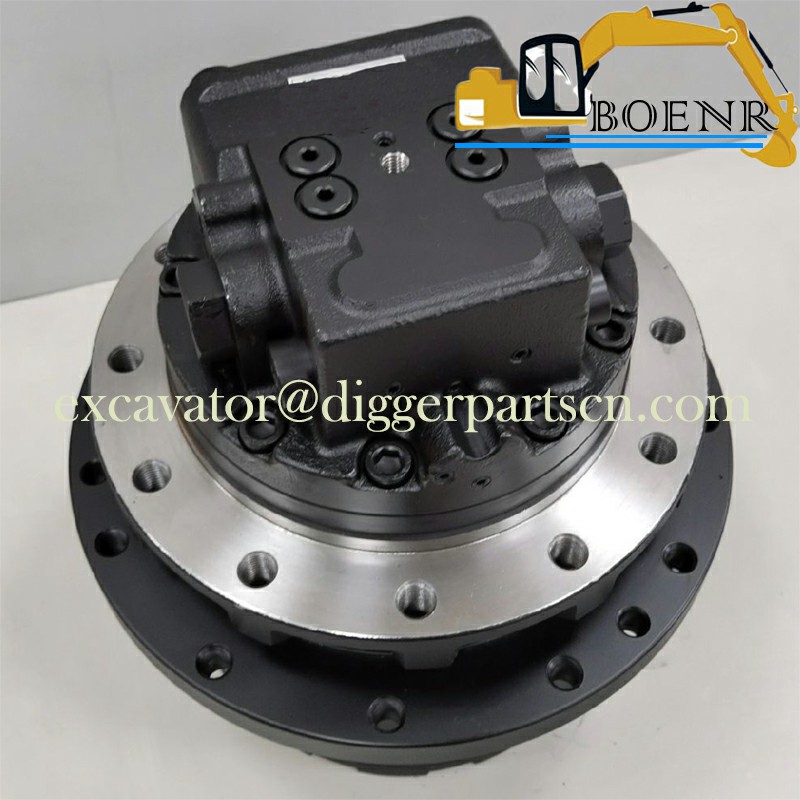

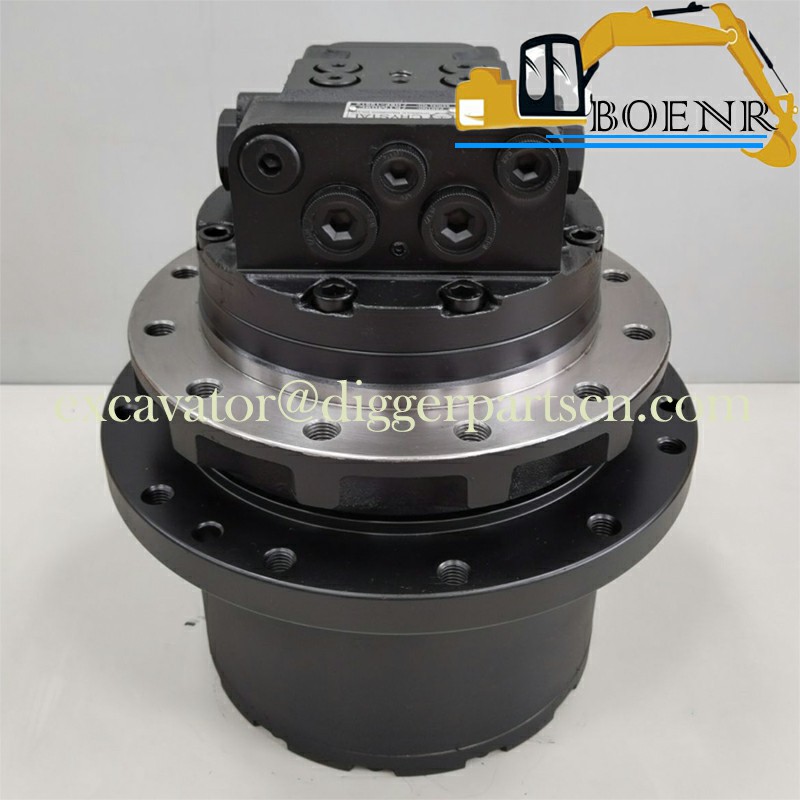

SK70SR TM09 Final Drive Assy YT15V00002F1 YT15V00002F2
| Part Name | Final Drive | Part Number | TM09 YT15V00002F1 YT15V00002F2 |
| Brand | Kobeki Kobelco | Applicable Model | SK70SR |
Weight: 103 kg

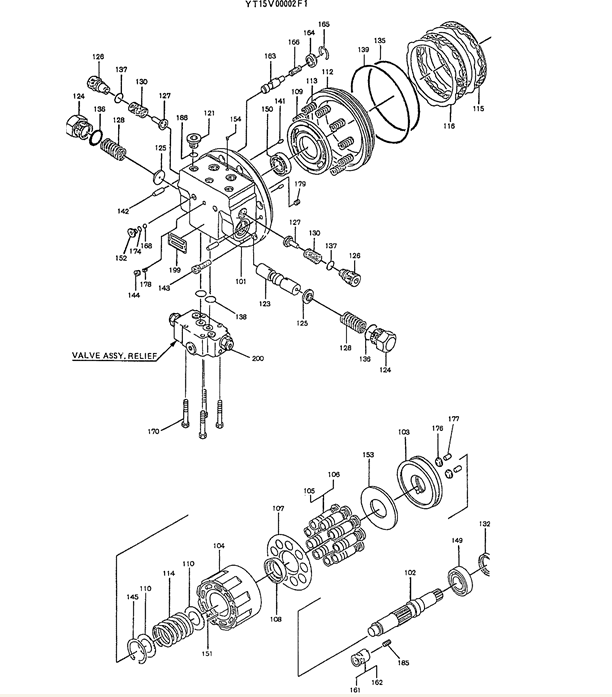

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| 1 | YX15V00001R200 | REPAIR KIT CONSISTS OF REF 10(1),31(1) | |
| 1 | YT15V00002R500 | REPAIR KIT CONSISTS OF REF 161(1),162(1) | |
| 1 | YT15V00002R400 | REPAIR KIT CONSISTS OF REF 101(1),123(1), 144(1),152(2), 154X7,174(2), 178(1),179(1), 199(1) | |
| 1 | YT15V00002R300 | REPAIR KIT CONSISTS OF REF 4(1),5(1),9x3, 12X6,22X6,23X6 | |
| 1 | YT15V00002R200 | REPAIR KIT REPAIR KIT CONSISTS OF REF 2(1),3(1),19x3, 37(1) | |
| 1 | YT15V00002R100 | REPAIR KIT CONSISTS OF REF 27(2).28(1),29(1), 30(1),132(1),135(1), 136(2),137(2), 138(2),139(1), 174(2),186(1) | |
| 1 | YR15V00002R100 | REPAIR KIT CONSISTS OF REF 7(3) | |
| 1 | 2441U815R600 | REPAIR KIT CONSISTS OF REF 105(9),106(9) | |
| 200 | 1 | YT22V00002F1 | VALVE RELIEF SEE.P.YT22V00002 |
| 199 | 1 | 2441U829S199 | PLATE NAME |
| 186 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 185 | 1 | YT15V00002S185 | SPRING |
| 179 | 1 | NSS | NOT SERVICED SEPARATELY FILTER |
| 178 | 1 | NSS | NOT SERVICED SEPARATELY ORIFICE |
| 177 | 2 | YW15V00005S171 | PIN |
| 176 | 2 | EN01W00009S125 | PIVOT |
| 174 | 2 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 170 | 4 | ZS23C08055 | SCREW M08x1.25x55mm |
| 168 | 2 | 2441U829S168 | BALL |
| 166 | 1 | 2441U750S166 | SPRING |
| 165 | 1 | 2441U750S165 | RING |
| 164 | 1 | 2441U750S164 | STOP |
| 163 | 1 | 2441U815S163 | VALVE |
| 162 | 1 | NSS | NOT SERVICED SEPARATELY SHOE |
| 161 | 1 | NSS | NOT SERVICED SEPARATELY PISTON |
| 154 | 7 | PY15V00006S154 | PLUG |
| 153 | 1 | YT15V00002S153 | PLATE,THRUST |
| 152 | 2 | YT15V00002S152 | PLUG |
| 151 | 3 | YT15V00002S151 | ROLLER |
| 150 | 1 | YT15V00002S150 | BALL BEARING BEARING, BALL |
| 149 | 1 | 2441U532S129 | BEARING BALL |
| 145 | 1 | EN01W00009S121 | SNAP RING |
| 144 | 1 | ZE82T02000 | PLUG Pipe, 1.25" PT |
| 143 | 8 | ZS23C10030 | SCREW M10x1.50x30mm |
| 142 | 2 | 2441U815S142 | PIN |
| 141 | 2 | 2441U815S141 | PIN |
| 139 | 1 | EN01W00009S127 | O-RING |
| 138 | 2 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm |
| 137 | 2 | ZD12P01600 | O-RING ID 15.80 ± 0.20 x OD 20mm |
| 136 | 2 | ZD12P02600 | O-RING ID 25.70 ± 0.26 x OD 32mm |
| 135 | 1 | EN01W00009S128 | O-RING |
| 132 | 1 | 2441U815S132 | SEAL OIL |
| 130 | 2 | 2441U532S127 | SPRING |
| 128 | 2 | 2441U532S128 | SPRING |
| 127 | 2 | 2441U532S126 | HYDRAULIC VALVE |
| 126 | 2 | EN01W00009S153 | PLUG |
| 125 | 2 | YR15V00002S125 | SEAT RETAINER |
| 124 | 2 | 2441U532S123 | PLUG |
| 123 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 121 | 1 | YR15V00002S121 | PLUG |
| 116 | 2 | 2441U532S116 | PLATE |
| 115 | 2 | 2441U532S115 | PLATE |
| 114 | 1 | 2441U815S114 | SPRING |
| 113 | 8 | YT15V00002S113 | SPRING |
| 112 | 1 | EN01W00009S112 | PISTON |
| 110 | 2 | 2441U532S110 | WASHER |
| 109 | 1 | 2441U532S109 | PLATE |
| 108 | 1 | 2441U815S108 | BALL BEARING |
| 107 | 1 | YT15V00002S107 | RETAINER PLATE, RETAINER |
| 106 | 9 | NSS | NOT SERVICED SEPARATELY SHOE |
| 105 | 9 | NSS | NOT SERVICED SEPARATELY PISTON |
| 104 | 1 | YT15V00002S104 | BLOCK BLOCK, CYLINDER |
| 103 | 1 | YT15V00002S103 | PLATE |
| 102 | 1 | 2441U815S102 | SHAFT |
| 101 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE |
| 37 | 1 | 2441U815S37 | |
| 33 | 3 | ZE82T06000 | PLUG Pipe, 3/8" PT |
| 31 | 1 | NSS | NOT SERVICED SEPARATELY SEAL, FLOATING |
| 30 | 1 | YW15V00005S030 | O-RING |
| 29 | 1 | YT15V00002S029 | SPARE PART O-RING |
| 28 | 1 | ZD12G23000 | O-RING |
| 27 | 2 | ZD12P00700 | GASKET O-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 26 | 1 | 2441U815S26 | BALL |
| 25 | 3 | ZR16X02500 | RING Retaining -- ID 23.2 x OD 25 x Th 1.2mm |
| 24 | 1 | ZR16X01900 | SNAP RING RETAINING |
| 23 | 5 | 2441U815S23 | BEARING NEEDLE |
| 22 | 6 | 2441U815S22 | BEARING ROLLER |
| 21 | 2 | 2441U815S21 | BEARING BALL |
| 20 | 3 | 2441U532S19 | RING |
| 19 | 3 | 2441U815S19 | SPECIAL BOLT REAMER |
| 18 | 1 | 2441U815S18 | RING |
| 17 | 24 | 2441U815S17 | PIN |
| 16 | 1 | 2441U815S16 | SHAFT |
| 15 | 1 | 2441U815S15 | COUPLING |
| 14 | 3 | 2441U815S14 | REPAIR KIT |
| 12 | 6 | 2441U815S12 | SPACER |
| 11 | 1 | 2441U815S11 | COLLAR |
| 10 | 1 | NSS | NOT SERVICED SEPARATELY PIECE, DISTANCE |
| 9 | 3 | YT15V00002S009 | SHAFT |
| 8 | 1 | YT15V00002S008 | COVER |
| 7 | 3 | NSS | NOT SERVICED SEPARATELY GEAR |
| 6 | 1 | YR15V00002S006 | GEAR |
| 5 | 1 | NSS | NOT SERVICED SEPARATELY GEAR |
| 4 | 1 | NSS | NOT SERVICED SEPARATELY GEAR |
| 3 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY SPINDLE |
| 1 | 1 | 2441U815S1 | HUB |
| AR | YT15V00002F1 | HYDRAULIC MOTOR ASSY (PROPELLING) |
