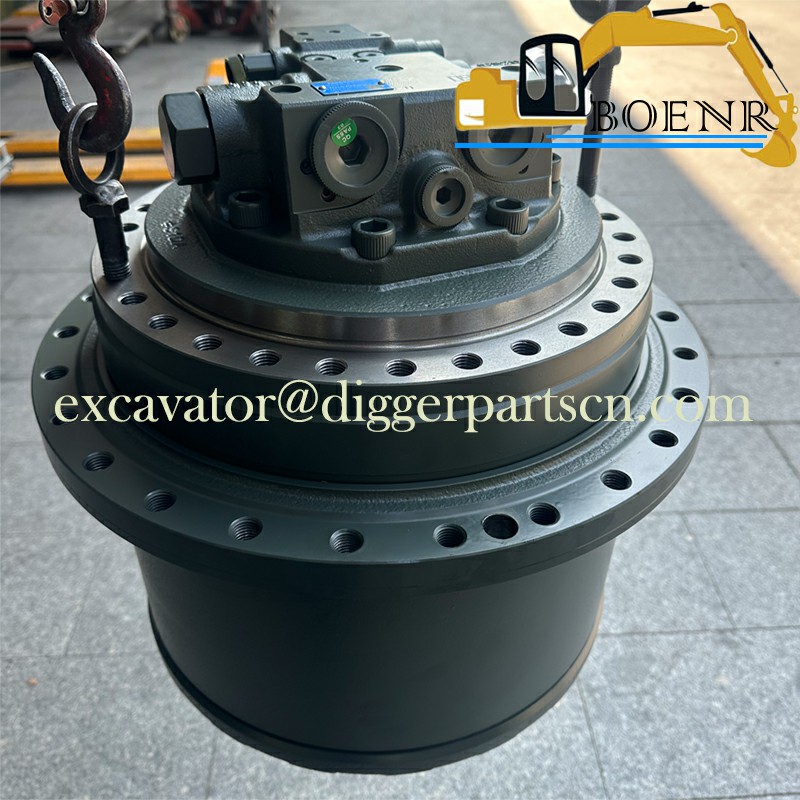

YN15V00037F3 YN15V00083F1 GM38 Fina Drive For SK200-10 SK210-10 SK220-10 SK200-8 SK200-9 SK210-8
SK200-10 SK210-10 SK220-10 SK200-8 SK200-9 SK210-8 GM38 Fina Drive YN15V00037F3 YN15V00083F1
| Part Name | Final Drive | Part Number | YN15V00037F3 YN15V00083F1 YN15V00051F7 |
| Brand | Kobeki、Kobelco | Applicable Model | SK200-10 SK210-10 SK220-10 SK200-8 SK200-9 SK210-8 |
Weight: 325 kg

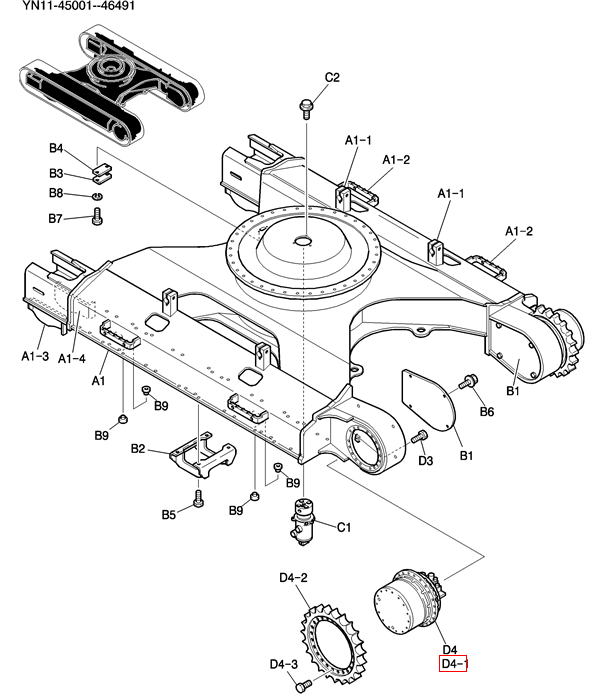

Parts Catalog
| ITEM | QTY | PARTS NO. | PART NAME |
| D4-3 | 26 | ZS13C16045 | CAP |
| D4-2 | 1 | YN51D01003P1 | DRIVING SPROCKET |
| D4-1 | 1 | YN15V00037F1 | HYDRAULIC MOTOR Assy, Propel , See (C.P.M) |
| D4 | 2 | YN53D00015F1 | Instal, Propel NSS |
| D3 | 52 | 2420P2963D3 | CAP |
| AR | YN53D00012F1 | Instal, Propel NSS | |
| C2 | 3 | ZM73C12025 | BOLT Sems |
| C1 | 1 | YN55V00053F1 | CENTER JOINT Assy, Swivel , See (C.P.M) |
| AR | YN19H00053F1 | Swivel NSS | |
| B9 | 32 | YN01F01040P1 | CAP |
| B8 | 2 | ZW26X10000 | LOCK WASHER |
| B7 | 2 | ZS18C10014 | SCREW Cap |
| B6 | 8 | ZM73C12025 | BOLT Sems |
| B5 | 8 | 2420P1580D1 | SCREW Cap |
| B4 | 1 | 2418T12274 | PACKING Rubber |
| B3 | 1 | 2422T556 | PLATE |
| B2 | 2 | YN63D00003P1 | GUIDE Track |
| B1 | 2 | YN01F01080P1 | COVER |
| AR | YN01F00035F1 | Low Group NSS | |
| A1-4 | 2 | YN07F01076P1 | GUIDE |
| A1-3 | 2 | YN07F01075P1 | GUIDE |
| A1-2 | 4 | YN41C00060P1 | STEP |
| A1-1 | 4 | YN07F01270P1 | SUPPORT |
| A1 | 1 | YN02F00149P1 | Low NSS |
| AR | YN02F00164F1 | Low NSS |
