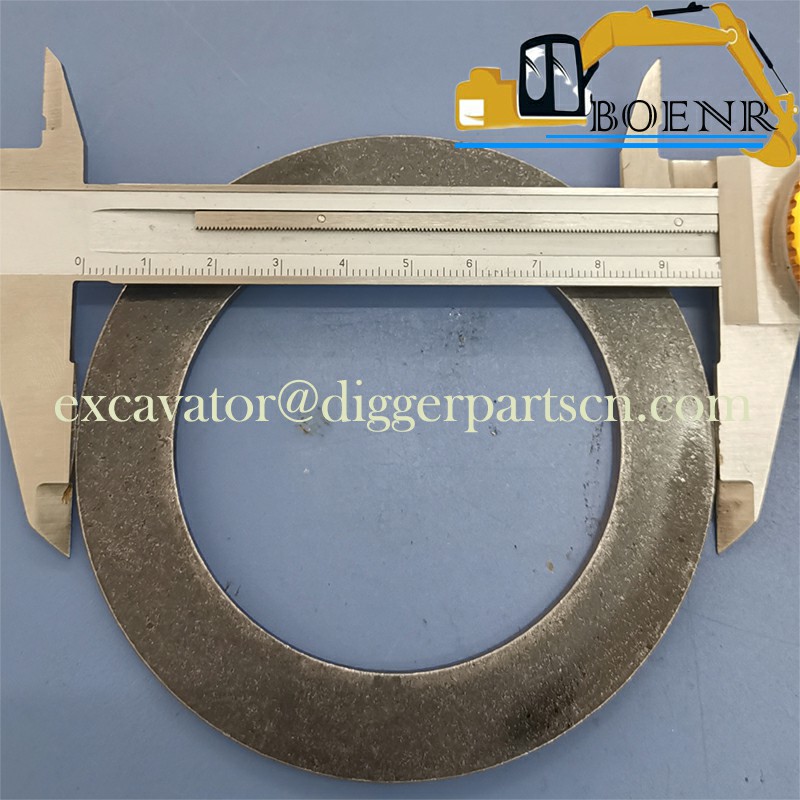

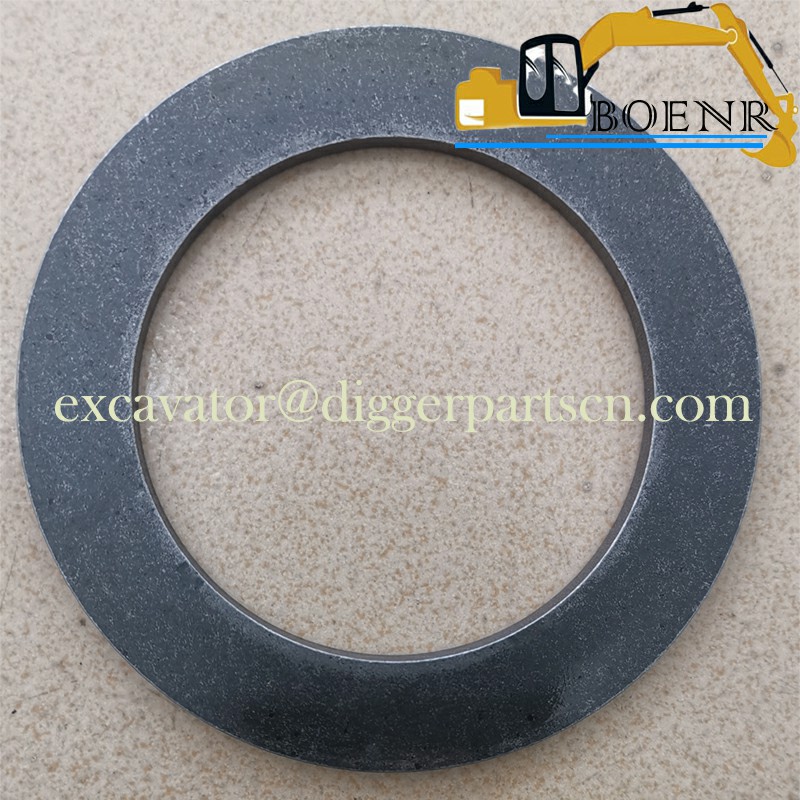

Lq15v00007s083 Final drive Plate Thrust For SK250-8 SK260-8 SK260-6E SK250-6E SK235SR
SK250-8 SK260-8 SK260-6E SK250-6E SK235SR Final drive Plate Thrust Lq15v00007s083
| Part Name | Plate Thrust | Part Number | Lq15v00007s083 |
| Brand | Kobelco Kobeki KPM | Applicable Model | SK250-8 SK260-8 SK260-6E SK235SR SK250-6E |
Weight: 0.5 kg

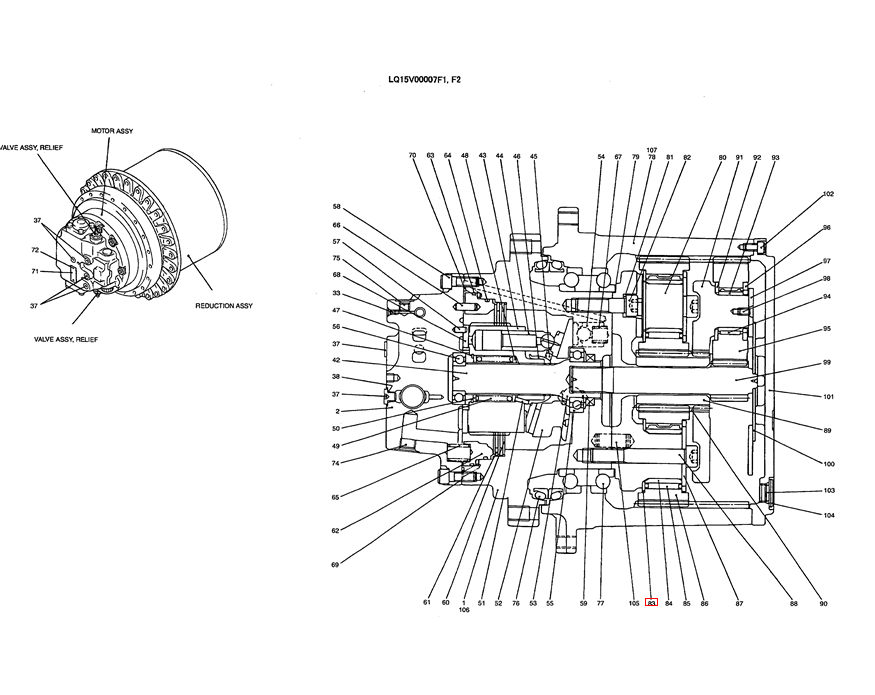

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | LQ15V00007R900 | REPAIR KIT FOR (F2 ONLY) CONSISTS OF REF 54(2),106(1) | |
| 1 | LQ15V00007R800 | REPAIR KIT CONSISTS OF REF 100(1) | |
| 1 | LQ15V00007R700 | REPAIR KIT CONSISTS OF REF 79(1) | |
| 1 | LQ15V00007R600 | REPAIR KIT CONSISTS OF REF 43(1),44(9),45(1),46(1),47(1),48(1),49(1),50(1),51(3) | |
| 1 | LQ15V00007R500 | REPAIR KIT CONSISTS OF REF 11(1),12(1),13(4),14(1),15(1),16(1) | |
| 1 | LQ15V00007R400 | REPAIR KIT CONSISTS OF REF 2(1),18(4),33(6),34(1),35(2),36(5),37(4),38(4) | |
| 1 | LQ15V00007R300 | FOR (F1 ONLY(CONSISTS OF REF 1(1),54(2) | |
| 1 | LQ15V00007R200 | REPAIR KIT CONSISTS OF REF 76(2),104(3) | |
| 1 | LQ15V00007R100 | REPAIR KIT CONSISTS OF REF 7(2),12(2),14(2),22(1),23(1),24(1),25(1),29(2),41(2),59(1),63(1),64(1),69(4),70(1) | |
| 107 | 1 | NSS | NOT SERVICED SEPARATELY HOUSING, FOR (F2 ONLY) |
| 106 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE ,FOR (F2 ONLY) |
| 105 | 4 | LQ15V00007S105 | PIN |
| 104 | 3 | ZD12P02400 | O-RING ID 23.70 ± 0.24 x OD 30mm |
| 103 | 3 | LQ15V00007S103 | PLUG |
| 102 | 16 | LQ15V00007S102 | SCREW |
| 101 | 1 | LQ15V00007S101 | COVER |
| 100 | 1 | NSS | NOT SERVICED SEPARATELY PLATE,THRUST |
| 99 | 1 | LQ15V00007S099 | DRIVEN GEAR |
| 98 | 3 | LQ15V00007S098 | SCREW |
| 97 | 1 | LQ15V00007S097 | PLATE THRUST |
| 96 | 3 | LQ15V00007S096 | PLATE THRUST |
| 95 | 3 | LQ15V00007S095 | GEAR |
| 94 | 3 | LQ15V00007S094 | BEARING NEEDLE |
| 93 | 3 | LQ15V00007S093 | RACE INNER |
| 92 | 3 | LQ15V00007S092 | PLATE THRUST |
| 91 | 1 | LQ15V00007S091 | HOLDER |
| 90 | 1 | LQ15V00007S090 | RING SNAP |
| 89 | 1 | LQ15V00007S089 | SUN GEAR |
| 88 | 4 | LQ15V00007S088 | SCREW |
| 87 | 4 | LQ15V00007S087 | PLATE THRUST |
| 86 | 4 | LQ15V00007S086 | DRIVEN GEAR |
| 85 | 4 | LQ15V00007S085 | BEARING ASSY NEEDLE |
| 84 | 4 | LQ15V00007S084 | RACE INNER |
| 83 | 4 | LQ15V00007S083 | PLATE THRUST |
| 82 | 8 | LQ15V00007S082 | SCREW |
| 81 | 8 | LQ15V00007S081 | FRICTION WASHER |
| 80 | 1 | LQ15V00007S080 | HOLDER |
| 79 | 1 | NSS | NOT SERVICED SEPARATELY SHIM |
| 78 | 1 | NSS | NOT SERVICED SEPARATELY HOUSING, FOR (F1 ONLY) |
| 77 | 2 | LQ15V00007S077 | BEARING ANGULAR |
| 76 | 1 | YN53D00003S211 | SEAL FROATING |
| 75 | 1 | NSS | NOT SERVICED SEPARATELY PLUG |
| 74 | 1 | NSS | NOT SERVICED SEPARATELY PLUG |
| 73 | 2 | NSS | NOT SERVICED SEPARATELY PLUG |
| 72 | 2 | NSS | NOT SERVICED SEPARATELY SCREW |
| 71 | 1 | NSS | NOT SERVICED SEPARATELY NAME PLATE |
| 70 | 1 | 2441U802S67 | O-RING |
| 69 | 4 | ZD12P01000 | O-RING ID 09.80 ± 0.17 x OD 13mm |
| 68 | 1 | YN15V00005S105 | PLATE VALVE |
| 67 | 2 | YN15V00005S139 | SPRING |
| 66 | 4 | YN15V00005S128 | PIN |
| 65 | 8 | 2441U792S130 | SPRING |
| 64 | 1 | 2441U983S130 | O-RING |
| 63 | 1 | 2441U984S42 | O-RING |
| 62 | 1 | LQ15V00007S062 | KIT PISTON, BRAKE |
| 61 | 2 | 2441U983S126 | PLATE FRICTION |
| 60 | 3 | LQ15V00007S060 | PLATE DISK |
| 59 | 1 | 2441U983S121 | OIL SEAL |
| 58 | 10 | ZS23C14035 | SCREW M14x2.0x35mm |
| 57 | 1 | 2441U563S117 | PIN |
| 56 | 1 | LQ15V00007S056 | BALL BEARING |
| 55 | 1 | LQ15V00007S055 | BALL BEARING |
| 54 | 2 | NSS | NOT SERVICED SEPARATELY PISTON ASSY |
| 53 | 2 | 2441U792S110 | BALL |
| 52 | 1 | LQ15V00007S052 | PLATE |
| 51 | 3 | 2441U792S119 | PIN |
| 50 | 1 | YN15V00005S117 | RING COLLER |
| 49 | 1 | YN15V00005S116 | SPRING |
| 48 | 1 | YN15V00005S115 | SPRING SEAT |
| 47 | 1 | YN15V00005S114 | SNAP RING RETAINING |
| 46 | 1 | NSS | NOT SERVICED SEPARATELY HOLDER |
| 45 | 1 | NSS | NOT SERVICED SEPARATELY PLATE |
| 44 | 9 | NSS | NOT SERVICED SEPARATELY PISTON ASSY |
| 43 | 1 | NSS | NOT SERVICED SEPARATELY BLOCK, CYLINDER |
| 42 | 1 | LQ15V00007S042 | SHAFT |
| 41 | 2 | ZD12P01200 | O-RING ID 11.80 ± 0.19 x OD 16mm |
| 40 | 2 | LQ15V00007S040 | SPRING |
| 39 | 2 | LQ15V00007S039 | CHECK VALVE |
| 38 | 4 | ZD12P01100 | O-RING ID 10.80 ± 0.18 x OD 15mm |
| 37 | 4 | 2441U984S35 | PLUG |
| 36 | 5 | NSS | NOT SERVICED SEPARATELY ORIFICE |
| 35 | 2 | NSS | NOT SERVICED SEPARATELY ORIFICE |
| 34 | 1 | NSS | NOT SERVICED SEPARATELY ORIFICE |
| 33 | 6 | NSS | NOT SERVICED SEPARATELY PLUG |
| 32 | 1 | 2441U983S27 | WASHER |
| 31 | 1 | LQ15V00007S031 | PLUG |
| 30 | 1 | LQ15V00007S030 | GUIDE PIN SPRING |
| 29 | 2 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm |
| 28 | 1 | 2441U792S141 | PLUG |
| 27 | 1 | LQ15V00007S027 | SPRING |
| 26 | 1 | LQ15V00007S026 | RING RETAINING |
| 25 | 1 | ZD85P00500 | BACK-UP RING |
| 24 | 1 | ZD85P00600 | BACK-UP RING |
| 23 | 1 | ZD12P00500 | O-RING |
| 22 | 1 | ZD12P00600 | O-RING ID 05.80 ± 0.15 x OD 09mm |
| 21 | 1 | LQ15V00007S021 | FILTER |
| 20 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 19 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 18 | 4 | NSS | NOT SERVICED SEPARATELY PLUG |
| 16 | 2 | NSS | NOT SERVICED SEPARATELY ORIFICE |
| 15 | 2 | LQ15V00007S015 | PLUG |
| 14 | 2 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 13 | 8 | ZS23C12040 | SCREW M12x1.75x40mm |
| 12 | 2 | ZD12G04500 | O-RING ID 44.40 ± 0.41 x OD 50mm |
| 11 | 2 | NSS | NOT SERVICED SEPARATELY CAP |
| 10 | 2 | 2436U1027S205 | SEAT/SLOT SPRING |
| 9 | 2 | 2441U983S9 | SPRING |
| 8 | 2 | 2436U1027S203 | SEAT/SLOT SPRING |
| 7 | 2 | ZD12P02100 | GASKET O-Ring -- ID 20.80 ± 0.23 x OD 25mm |
| 6 | 2 | NSS | NOT SERVICED SEPARATELY PLUG |
| 5 | 2 | NSS | NOT SERVICED SEPARATELY SPRING |
| 4 | 2 | NSS | NOT SERVICED SEPARATELY VALVE, CHECK |
| 3 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY PLATE |
| 1 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE, FOR (F1 ONLY) |
| LQ15V00007F2 | HYDRAULIC MOTOR ASSY (PROPELLING) |
