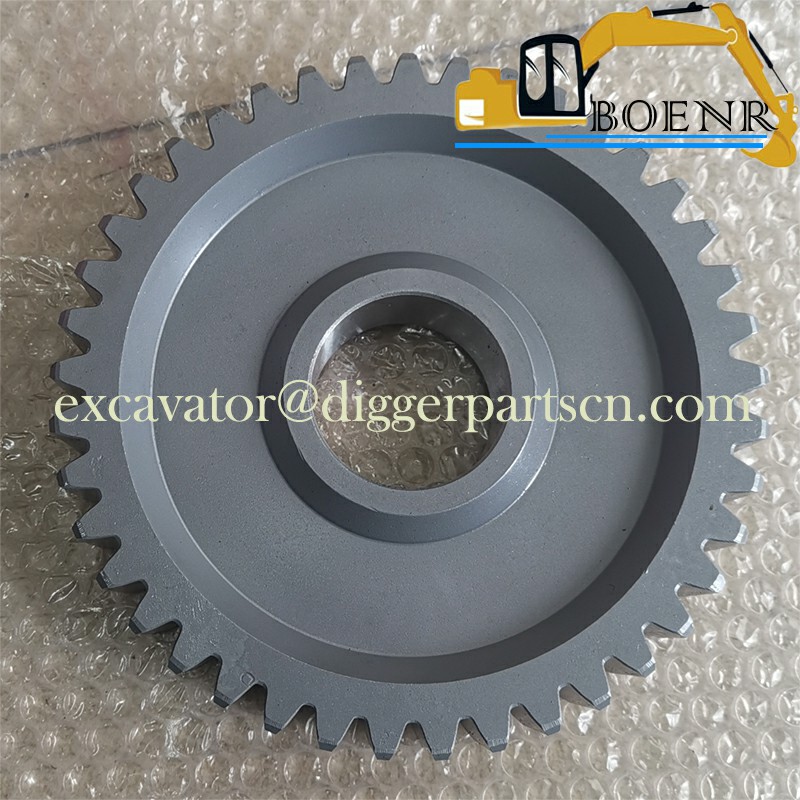

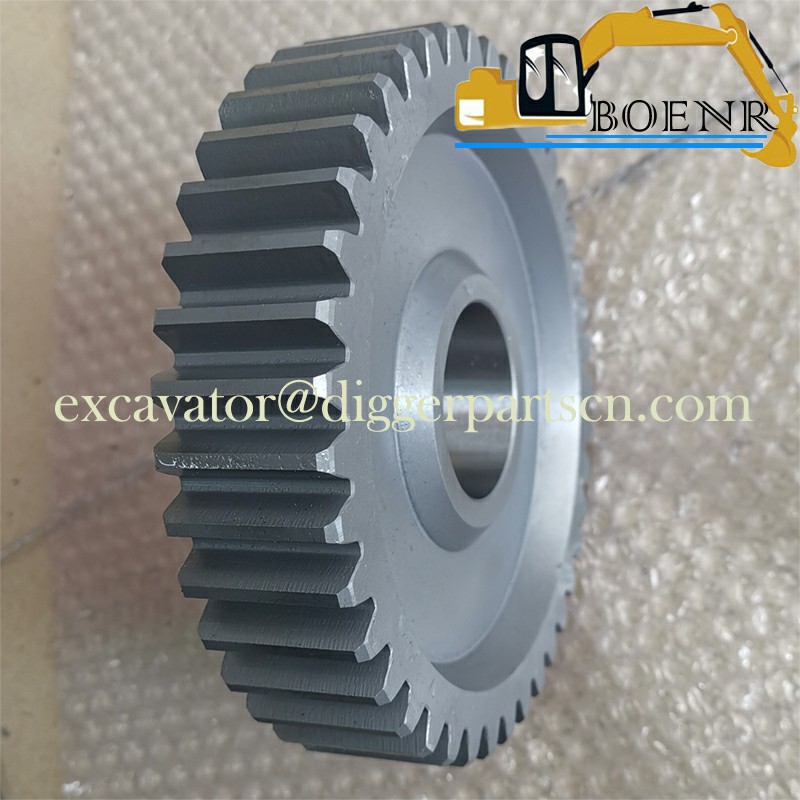

LQ15V00005S006 Final Drive Gear For SK220-3 SK250-4 SK220-4 SK250-6E SK250-4
SK220-3 SK250-4 SK220-4 SK250-6E SK250-4 Final Drive Gear LQ15V00005S006
| Part Name | Gear | Part Number | LQ15V00005S006 |
| Brand | Kobelco Kobeki | Applicable Model | SK220-3 SK250-4 SK220-4 SK250-6E SK250-4 |
Weight: 0.5 kg

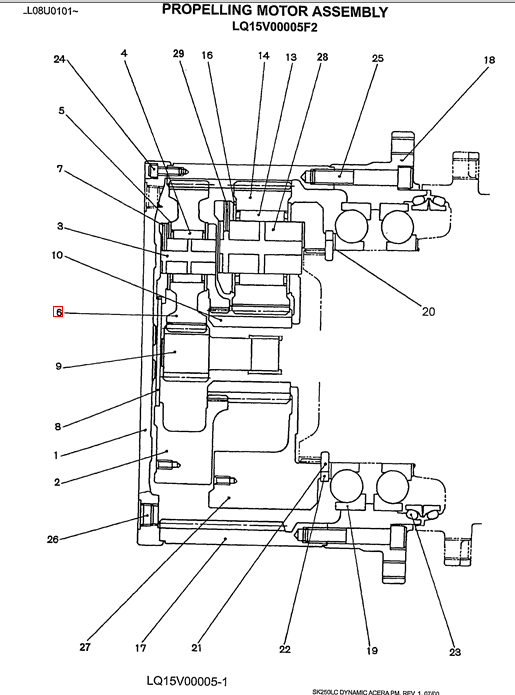

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 29 | 3 | ZP26D08036 | ROLL PIN SPRING |
| 28 | 3 | LQ15V00005S028 | PIN |
| 27 | 1 | LQ15V00005S027 | CARRIER CARRIER ASSY |
| 26 | 2 | ZE82T12000 | PLUG 3/4" PT |
| 25 | 20 | ZS23C16090 | SCREW M16x2.0x90mm |
| 24 | 16 | ZS23C10025 | SCREW M10x1.50x25mm |
| 23 | 1 | LQ15V00005S023 | SEAL |
| 22 | 1 | LQ15V00005S022 | RING |
| 21 | 2 | LQ15V00005S021 | LOCK WASHER |
| 20 | 1 | LQ15V00005S020 | SHIM |
| 19 | 2 | LQ15V00005S019 | BEARING |
| 18 | 1 | LQ15V00005S018 | HOUSING |
| 17 | 17 | LQ15V00005S017 | GEAR INTERNAL |
| 16 | 6 | LQ15V00005S016 | WASHER |
| 14 | 3 | LQ15V00005S014 | GEAR |
| 13 | 3 | LQ15V00005S013 | BEARING |
| 10 | 1 | LQ15V00005S010 | GEAR |
| 9 | 1 | LQ15V00005S009 | GEAR |
| 8 | 1 | LQ15V00005S008 | PLATE |
| 7 | 3 | ZP26D04022 | PIN SPRING |
| 6 | 3 | LQ15V00005S006 | GEAR |
| 5 | 6 | LQ15V00005S005 | WASHER |
| 4 | 3 | LQ15V00005S004 | BEARING |
| 3 | 3 | LQ15V00005S003 | PIN |
| 2 | 1 | LQ15V00005S002 | CARRIER |
| 1 | 1 | LQ15V00005S001 | COVER |
| AR | LQ15V00005F2 | GEAR REDUCTION UNIT (PROPELLING) |
