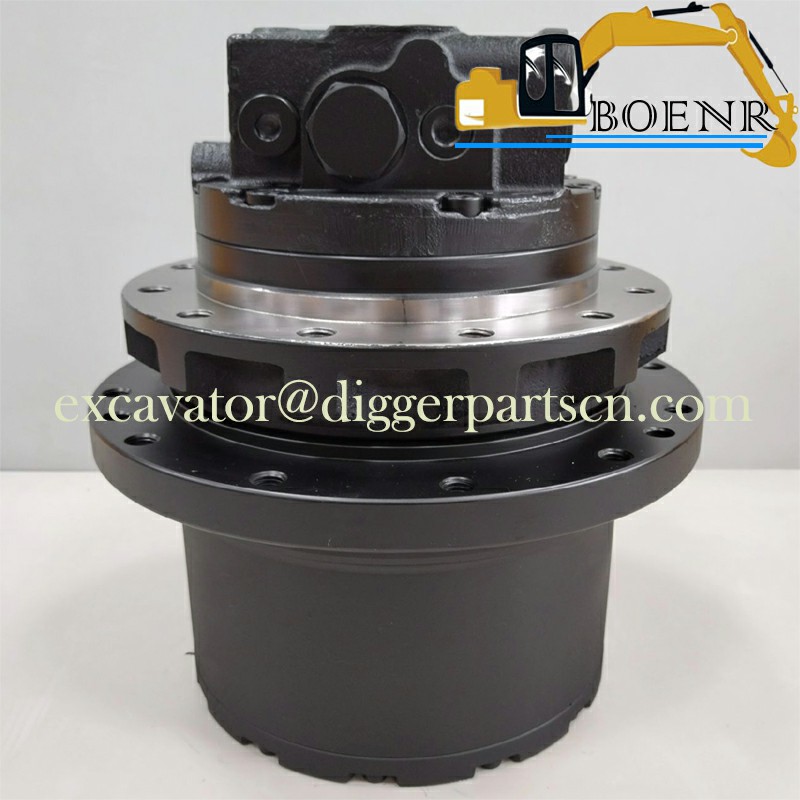

LE15V00002F1 TM09 Final Drive Assy For SK60-5

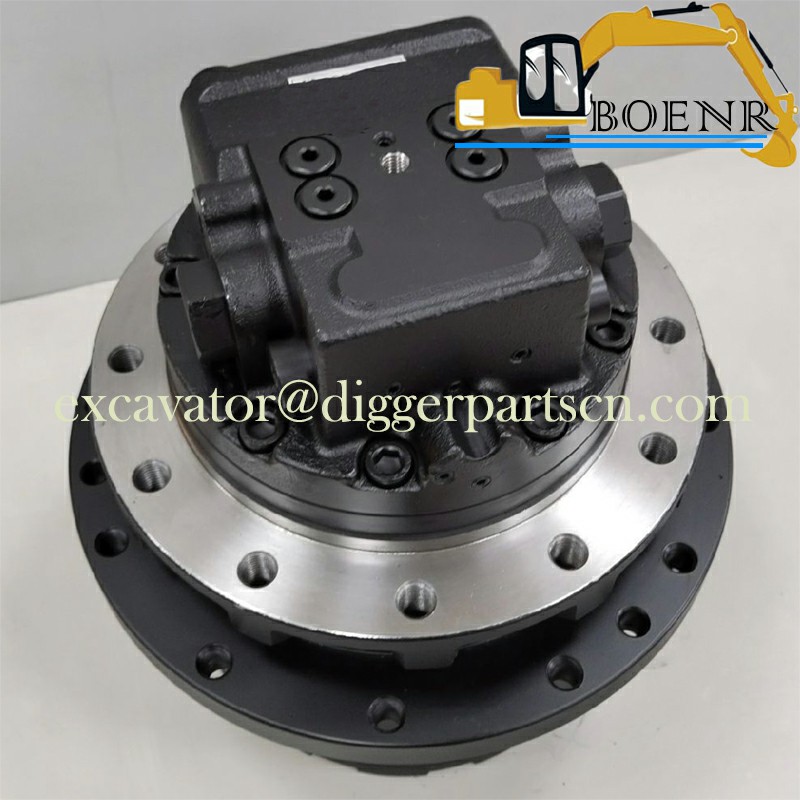

SK60-5 TM09 Final Drive Assy LE15V00002F1
| Part Name | Final Drive | Part Number | TM09 LE15V00002F1 |
| Brand | Kobeki Kobelco | Applicable Model | SK60-5 |
Weight: 109 kg

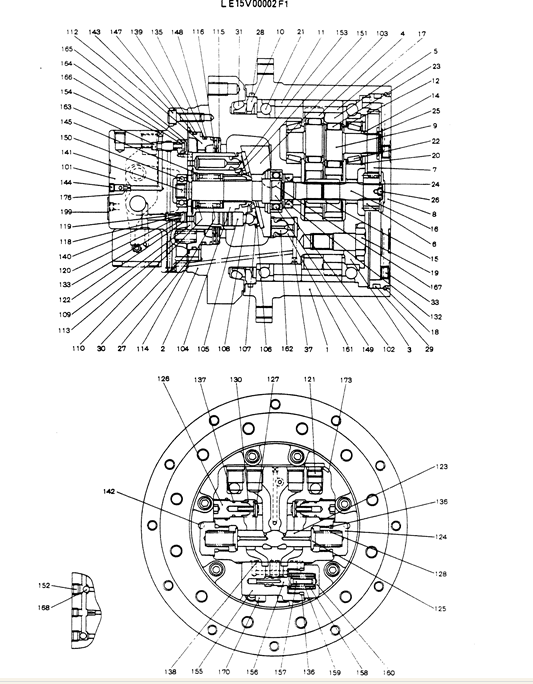

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 1 | YR15V00002R300 | REPAIR KIT CONSISTS OF REF 101.123.144.152.154. 176.199 | |
| 1 | YR15V00002R200 | REPAIR KIT CONSISTS OF REF 10.31 | |
| 1 | YR15V00002R100 | REPAIR KIT CONSISTS OF REF 7 | |
| 1 | 2441U815R800 | REPAIR KIT CONSISTS OF REF 161.162 | |
| 1 | 2441U815R700 | REPAIR KIT CONSISTS OF REF 155.156 | |
| 1 | 2441U815R600 | REPAIR KIT CONSISTS OF REF 105,106 | |
| 1 | 2441U815R300 | REPAIR KIT CONSISTS OF REF 4.5.9,12,22.23 | |
| 1 | 2441U815R200 | REPAIR KIT CONSISTS OF REF 2, 3.19. 37 | |
| 1 | 2441U815R100 | REPAIR KIT CONSISTS OF REF 27-31.132.133.135-140. 147.148,173 | |
| 199 | 1 | 2441U829S199 | PLATE NAME |
| 176 | 1 | 2441U831S176 | ORIFICE |
| 173 | 1 | ZD12P01400 | O-RING ID 13.80 ± 0.19 x OD 18mm |
| 170 | 4 | ZS23C08050 | CAP Screw -- M08x1.25x50mm |
| 168 | 2 | 2441U829S168 | BALL |
| 167 | 2 | 2441U815S167 | BALL |
| 166 | 1 | 2441U750S166 | SPRING |
| 165 | 1 | 2441U750S165 | RING |
| 164 | 1 | 2441U750S164 | STOP |
| 163 | 1 | 2441U815S163 | VALVE |
| 162 | 1 | NSS | NOT SERVICED SEPARATELY SHOE |
| 161 | 1 | NSS | NOT SERVICED SEPARATELY PISTON |
| 160 | 1 | 2441U815S160 | PLUG |
| 159 | 1 | 2441U815S159 | SPRING |
| 158 | 1 | 2441U815S158 | SPRING |
| 157 | 1 | 2441U815S157 | STOPPER |
| 156 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 155 | 1 | NSS | NOT SERVICED SEPARATELY BODY |
| 154 | 4 | 2441U815S37 | |
| 153 | 1 | 2441U815S153 | THRUST PLATE |
| 152 | 2 | 2441U829S152 | PLUG |
| 151 | 3 | 2441U815S151 | ROLLER |
| 150 | 1 | 2441U815S150 | BALL |
| 149 | 1 | 2441U532S129 | BEARING BALL |
| 148 | 1 | 2441U532S150 | BACK-UP RING |
| 147 | 1 | 2441U532S149 | BACK-UP RING |
| 145 | 1 | 2441U815S145 | SNAP RING |
| 144 | 1 | 2441U831S152 | PLUG |
| 143 | 8 | ZS23C10030 | SCREW M10x1.50x30mm |
| 142 | 2 | 2441U815S142 | PIN |
| 141 | 2 | 2441U815S141 | PIN |
| 140 | 1 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 139 | 1 | ZD12G14000 | O-RING ID 139.40 ± 1.12 x OD 145mm |
| 138 | 2 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm |
| 137 | 2 | ZD12P01600 | O-RING ID 15.80 ± 0.20 x OD 20mm |
| 136 | 3 | ZD12P02600 | O-RING ID 25.70 ± 0.26 x OD 32mm |
| 135 | 1 | 2441U815S135 | |
| 133 | 1 | ZD12P00900 | O-RING ID 08.80 ± 0.17 x OD 12mm |
| 132 | 1 | 2441U815S132 | SEAL OIL |
| 130 | 2 | 2441U532S127 | SPRING |
| 128 | 2 | 2441U532S128 | SPRING |
| 127 | 2 | 2441U532S126 | HYDRAULIC VALVE |
| 126 | 2 | 2441U532S125 | PLUG |
| 125 | 2 | YR15V00002S125 | SEAT RETAINER |
| 124 | 2 | 2441U532S123 | PLUG |
| 123 | 1 | NSS | NOT SERVICED SEPARATELY SPOOL |
| 122 | 1 | 2441U496S53 | RING |
| 121 | 1 | YR15V00002S121 | PLUG |
| 120 | 1 | YR15V00002S120 | SPRING |
| 119 | 1 | YR15V00002S119 | VALVE |
| 118 | 1 | 2441U532S118 | SEAT, VALVE |
| 116 | 2 | 2441U532S116 | PLATE |
| 115 | 2 | 2441U532S115 | PLATE |
| 114 | 1 | 2441U815S114 | SPRING |
| 113 | 8 | 2441U532S113 | SPRING |
| 112 | 1 | 2441U532S112 | PISTON |
| 110 | 2 | 2441U532S110 | WASHER |
| 109 | 1 | 2441U532S109 | PLATE |
| 108 | 1 | 2441U815S108 | BALL BEARING THRUST |
| 107 | 1 | 2441U815S107 | RETAINING PLATE |
| 106 | 1 | NSS | NOT SERVICED SEPARATELY SHOE |
| 105 | 1 | NSS | NOT SERVICED SEPARATELY PISTON |
| 104 | 1 | 2441U815S104 | CYLINDER BLOCK BLOCK.CYLINDER |
| 103 | 1 | YR15V00002S103 | PLATE PLATE |
| 102 | 1 | 2441U815S102 | SHAFT |
| 101 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE |
| 37 | 1 | 2441U815S37 | |
| 33 | 2 | 2441U815S33 | PLUG |
| 31 | 1 | 2441U532S24 | REPAIR KIT |
| 30 | 1 | 2441U815S30 | O-RING |
| 29 | 1 | 2441U815S29 | O-RING |
| 28 | 1 | ZD12G23000 | O-RING (G230 1B) |
| 27 | 2 | ZD12P00700 | GASKET O-Ring -- ID 06.80 ± 0.16 x OD 10mm |
| 26 | 1 | 2441U815S26 | BALL |
| 25 | 3 | ZR16X02500 | RING Retaining -- ID 23.2 x OD 25 x Th 1.2mm |
| 24 | 1 | ZR16X01900 | SNAP RING RETAINER |
| 23 | 6 | 2441U815S23 | BEARING NEEDLE |
| 22 | 6 | 2441U815S22 | BEARING ROLLER |
| 21 | 2 | 2441U815S21 | BEARING BALL |
| 20 | 3 | 2441U532S19 | RING |
| 19 | 3 | 2441U815S19 | SPECIAL BOLT reamer |
| 18 | 1 | 2441U815S18 | RING |
| 17 | 24 | 2441U815S17 | PIN |
| 16 | 1 | 2441U815S16 | SHAFT |
| 15 | 1 | 2441U815S15 | COUPLING |
| 14 | 3 | 2441U815S14 | REPAIR KIT |
| 12 | 6 | 2441U815S12 | SPACER |
| n | 1 | 2441U815S11 | COLLAR |
| 10 | 1 | 2441U815S10 | REPAIR KIT |
| g | 3 | 2441U815S9 | SHAFT |
| 8 | 1 | 2441U815S8 | |
| 7 | 3 | NSS | NOT SERVICED SEPARATELY GEAR |
| 6 | 1 | YR15V00002S006 | GEAR |
| 5 | 1 | NSS | NOT SERVICED SEPARATELY GEAR |
| 4 | 1 | NSS | NOT SERVICED SEPARATELY GEAR |
| 3 | 1 | NSS | NOT SERVICED SEPARATELY FLANGE |
| 2 | 1 | NSS | NOT SERVICED SEPARATELY SPINDLE |
| 1 | 1 | 2441U815S1 | HUB HUB |
| AR | LE15V00002F1 | HYDRAULIC MOTOR MOTOR ASSY (PROPELLING) |
