YN15V01005F2 2441U783S5 Friction Clutch Plate For SK200-3 SK200-5

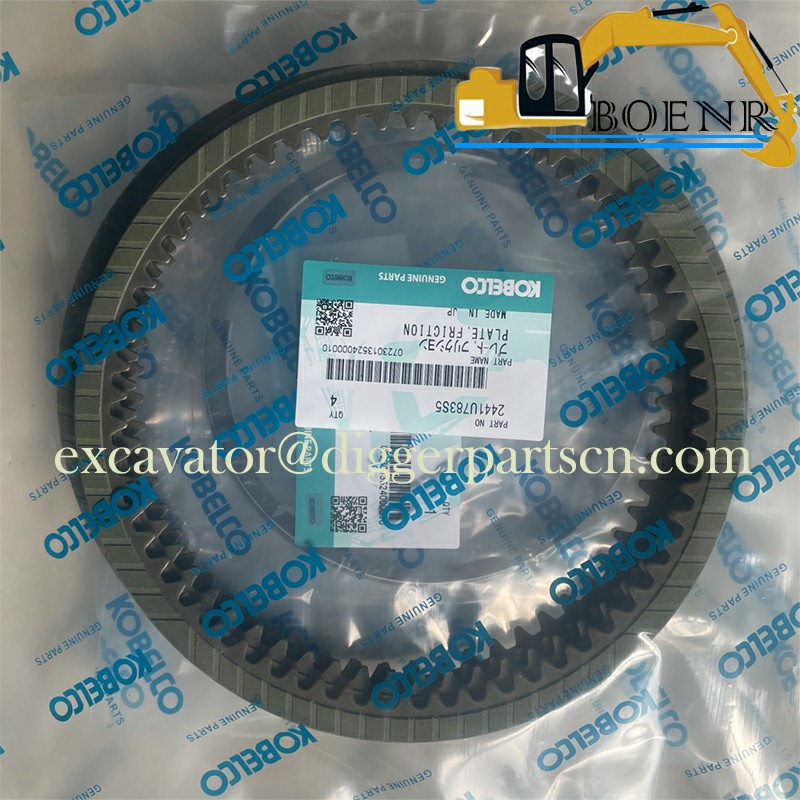

SK200-3 SK200-5 Friction Clutch Plate YN15V01005F2 2441U783S5
| Part Name | Friction Clutch Plate | Part Number | YN15V01005F2 2441U783S5 |
| Brand | Kobelco , kobeki | Applicable Model | SK200-3 SK200-5 |
Weight: 0.2KG

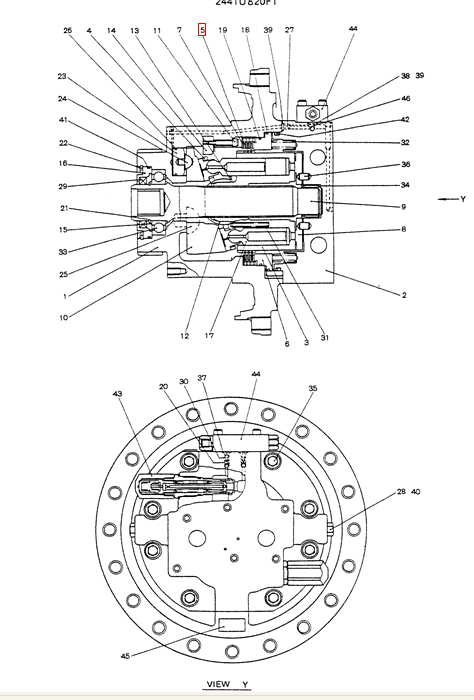

Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| AR | 2441U820R300 | REPAIR KIT CONSISTS OF ITEM 10, 23-25 | |
| AR | 2441U820R200 | REPAIR KIT CONSISTS OF ITEM 4.12 | |
| 1 | YN15V01005F2 | PLATE Repair Kit (includes 2441U783S5 x 3 & 2441U783S7 x 4) | |
| AR | 2441U820R100 | REPAIR KIT CONSISTS OF ITEM 17 | |
| 46 | 1 | 2436U812S4 | |
| 45 | 1 | NSS | NOT SERVICED SEPARATELY NAME PLATE |
| 44 | 1 | 2436R874F1 | VALVE SEE FIG 2436R874-1 |
| 43 | 2 | 2436R866F1 | PILOT VALVE SEE FIG 2436R866-1 |
| 42 | 1 | ZD12G20000 | O-RING ID 199.30 ± 1.55 x OD 210mm |
| 41 | 1 | ZD12G10500 | O-RING ID 14.80 ± 0.20 x OD 19mm |
| 40 | 2 | ZD12P01800 | O-RING ID 17.80 ± 0.21 x OD 22mm |
| 39 | 3 | ZD12P00800 | O-RING ID 07.80 ± 0.16 x OD 11mm |
| 38 | 2 | ZD12P00600 | O-RING ID 05.80 ± 0.15 x OD 09mm |
| 37 | 2 | ZD12P00900 | O-RING ID 08.80 ± 0.17 x OD 12mm |
| 36 | 2 | 2441U739S29 | PIN |
| 35 | 8 | ZS23C18055 | SCREW M18x2.50x55mm |
| 34 | 1 | 2441U783S34 | NEEDLE BEARING |
| 33 | 1 | 2441U923S4 | |
| 32 | 16 | 2441U783S32 | SPRING |
| 31 | 9 | 2441U820S31 | SPRING |
| 30 | 2 | 2441U783S30 | SPRING |
| 29 | 1 | 2441U923S7 | OIL SEAL |
| 28 | 2 | 2483U171S34 | PLUG |
| 27 | 1 | 2436U1123S14 | ORIFICE |
| 26 | 1 | 2441U783S26 | PISTON RING |
| 25 | 2 | NSS | NOT SERVICED SEPARATELY PIVOT |
| 24 | 1 | NSS | NOT SERVICED SEPARATELY BALL |
| 23 | 1 | NSS | NOT SERVICED SEPARATELY PISTON |
| 22 | 1 | 2441U783S22 | LOCKING RING |
| 21 | 1 | 2441U783S21 | SNAP RING |
| 20 | 2 | 2441U783S20 | VALVE CHECK |
| 19 | 1 | 2441U783S19 | PISTON RING |
| 18 | 1 | 2441U783S18 | PISTON RING |
| 17 | 9 | NSS | NOT SERVICED SEPARATELY PISTON ASSY |
| 16 | 1 | 2441U783S16 | BATTERY BOX |
| 15 | 2 | 2441U783S15 | SPACER |
| 14 | 1 | 2441U783S14 | STOP |
| 13 | 1 | 2441U783S13 | SEAT BACK |
| 12 | 1 | NSS | NOT SERVICED SEPARATELY JOINT,BALL |
| 11 | 2 | 2441U739S42 | BOLT |
| 10 | 1 | NSS | NOT SERVICED SEPARATELY PLATE,SHOE |
| 9 | 1 | 2441U783S9 | SHAFT |
| 8 | 1 | 2441U783S8 | PLATE |
| 7 | 4 | 2441U783S7 | STEP PLATE |
| 6 | 1 | 2441U783S6 | PISTON |
| 5 | 3 | 2441U783S5 | CLUTCH PLATE |
| 4 | 1 | NSS | NOT SERVICED SEPARATELY RETAINER,SHOE |
| 3 | 1 | 2441U820S3 | CYLINDER |
| 2 | 1 | 2441U820S2 | COVER |
| 1 | 1 | 2441U820S1 | |
| AR | 2441U820F1 | MOTOR ASSY (PROPELLING) |
