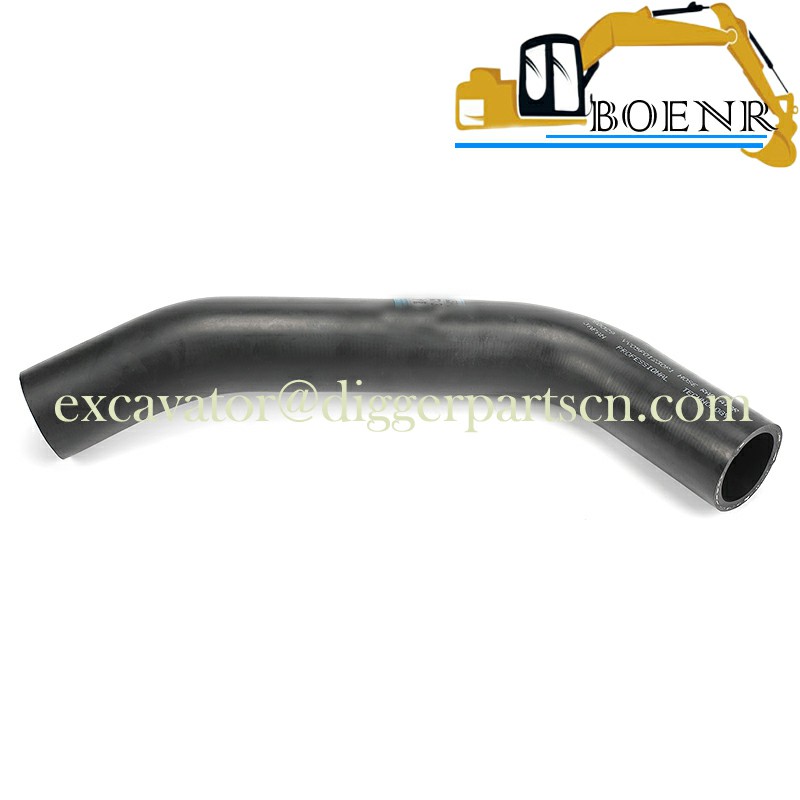

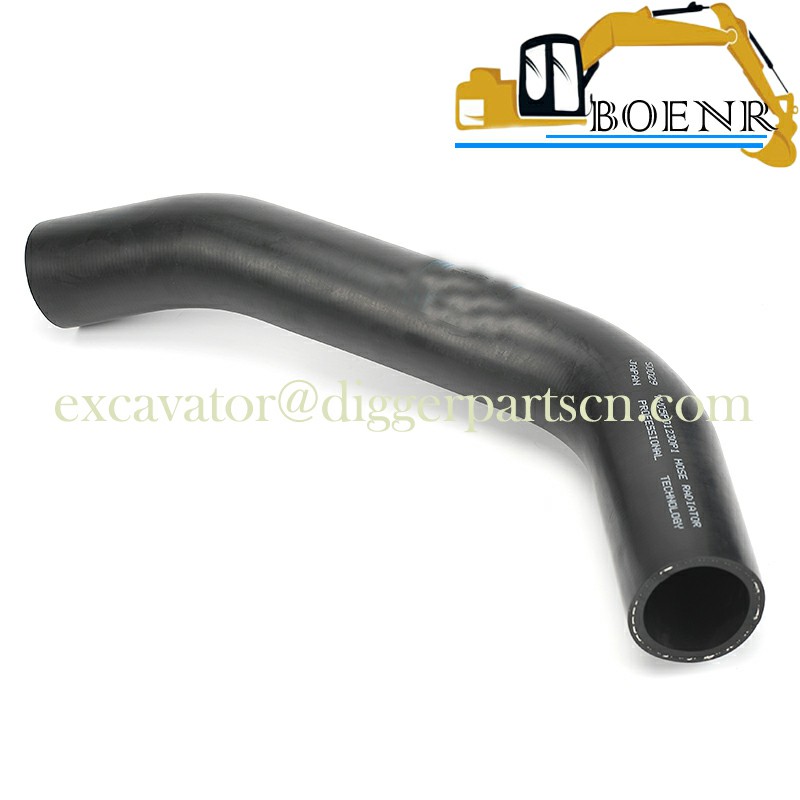

YY05P01230P1 Hose For SK130-8 SK140-8 SK140SR SK135SR
SK130-8 SK140-8 SK140SR SK135SR Hose YY05P01230P1
| Part Name | Hose | Part Number | YY05P01230P1 |
| Brand | Kobelco, Kobeki | Applicable Model | SK130-8 SK140-8 SK140SR SK135SR |
Weight: 2KG

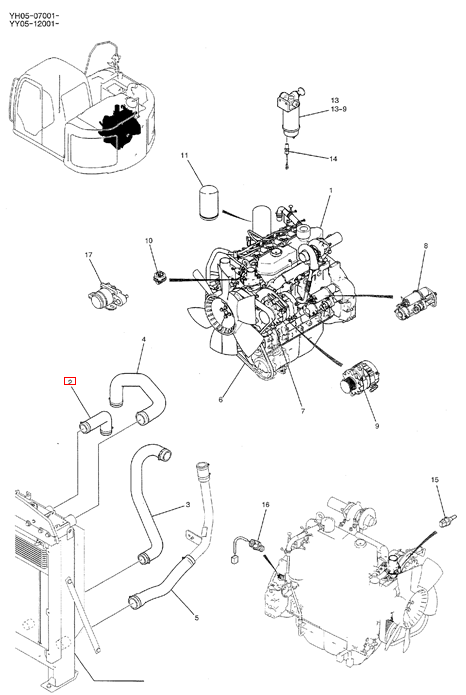

Image: Component Installation Diagram
Parts Catalog
| ITEM | QTY | PART NUMBER | PART NAME |
| 17 | 1 | VA3439000601 | RELAY Air Heater |
| 16 | 1 | VA32G9000100 | BOX Pick, Up |
| 15 | 1 | VA32G9000200 | SENSOR Water Temp |
| 14 | 1 | VA32G9000300 | SENSOR Water |
| 13-9 | 1 | VA32G6200100 | ELEMENT Filter, Fuel |
| 13 | 1 | VA32G6201010 | FILTER ASSY Fuel |
| 11 | 1 | VA3424011101 | ENGINE OIL FILTER Filter, Oil Engine |
| 10 | 1 | VA3434611500 | SENSOR Thermostat |
| 9 | 1 | VA32G6800100 | ALTERNATOR See Figure 09-33 |
| 8 | 1 | VA32G6600100 | STARTER MOTOR See Figure 09-31 |
| 7 | 1 | VA3434904400 | BELT, TRANSMISSION V-Belt -- 1260mm Long (49-19/32 in) |
| Engine Parts, See Figure 09-00 | |||
| 6 | 1 | YN20M01494D8 | BELT V-Belt (Air Conditioner) -- 1016mm Long (40 in) |
| 5 | 1 | YY05P01238P1 | FLEXIBLE HOSE |
| 4 | 1 | YY05P01174P1 | FLEXIBLE HOSE |
| 3 | 1 | YY05P01231P1 | FLEXIBLE HOSE |
| 2 | 1 | YY05P01230P1 | FLEXIBLE HOSE |
| 1 | 1 | YY02P00016F1 | ENGINE Assembly, |
